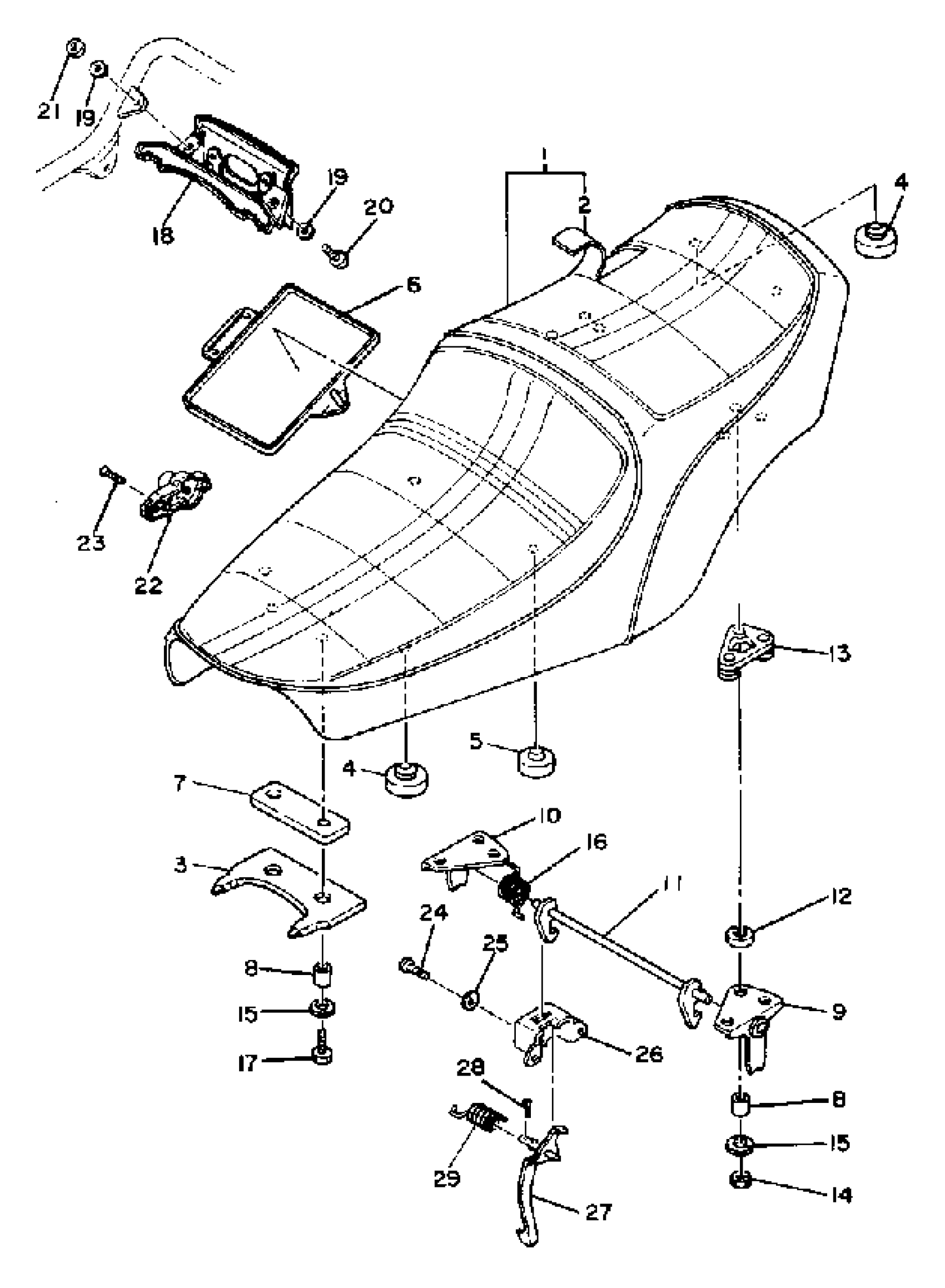

Yamaha XS650SE-114241 (XS650SE-114241) 1978 SEAT Diagram

#

Description
Price

1

DOUBLE SEAT ASSEMBLY

2M0-24730-91-00

Unavailable

2

. COVER, DOUBLE SEAT

2M0-24731-00-00

Unavailable

3

HINGE, SEAT

389-24726-00-33

Unavailable

4

HINGE, SEAT

307-24726-00-33

Unavailable

4

HINGE, SEAT

371-24726-01-00

$16.49

5

BRACKET, SEAT (2M0-24728-00)

2M0-24728-01-00

Unavailable

6

BOLT (583)

90101-06304-00

$7.49

7

PIN, CLEVIS

91701-05055-00

$7.49

8

CLIP (156-83525-00)

90468-10050-00

$3.05

9

SEAT LOCK ASSEMBLY

584-24705-00-00

Unavailable

10

SCREW, FLAT

98707-06012-00

$8.49

11

PAD, SEAT

1L9-24741-00-00

$9.99

12

STOPPER MAIN STAND

278-27114-00-00

$8.99

13

COVER, TAIL

389-24756-00-00

Unavailable

14

WASHER, SPRING

92995-06100-00

Unavailable

15

BOLT(3JP)

97017-06010-00

Unavailable

16

LID

2R6-28185-00-00

Unavailable

17

GROMMET (341-28187-00)

90480-06007-00

Unavailable

18

PLUNGER

341-28188-00-00

Unavailable

19

STOPPER

2M0-24768-00-00

Unavailable

20

BRACKET, SEAT

1J7-24718-00-00

Unavailable

21

STAY, REAR

1J7-24719-00-00

Unavailable
