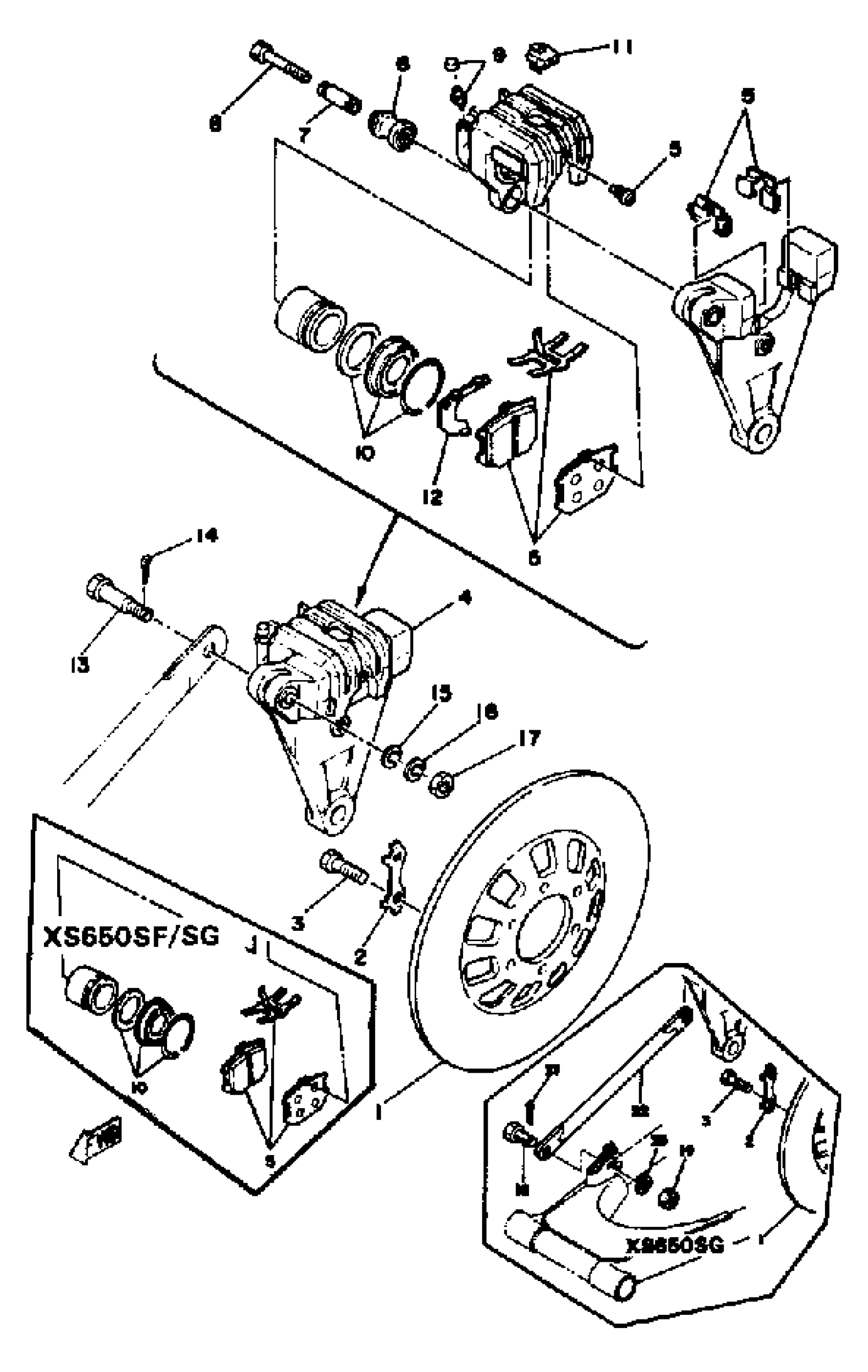

Yamaha XS650SE-114241 (XS650SE-114241) 1978 REAR DISC BRAKE CALIPER Diagram

#

Description
Price

1

DISC, BRAKE

1J3-25831-50-00

Unavailable

2

WASHER, LOCK

1J3-25834-01-00

$6.99

2

UNAVAILABLE IN PRICE BOOK

3H3-25834-00-00

Unavailable

3

BOLT, HEXAGON (1L9)

90101-08312-00

$9.49

3

BOLT, HEXAGON (1L9)

90101-08312-00

$9.49

4

CALIPER ASSEMBLY

3G1-25810-52-00

Unavailable

5

BRAKE PAD KIT

4K0-W0045-02-00

$56.99

6

BOOT, CALIPER

1J3-25917-00-00

Unavailable

7

. SLEEVE, CALIPER

1J3-25838-00-00

Unavailable

8

. BOLT, WASHER BASED

90105-08145-00

Unavailable

9

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

10

CALIPER SEAL KIT

1J3-W0047-00-00

$56.99

11

. CAP, INDICATOR

1J3-25845-01-00

Unavailable

12

. UNAVAILABLE IN PRICE BOOK

1J2-25827-00-00

Unavailable

13

BOLT

(90109-08499-00)

Unavailable

13

BOLT

(90109-08561-00)

Unavailable

14

PIN, COTTER

91490-20025-00

Unavailable

15

.. WASHER, PLATE

92990-08600-00

Unavailable

15

WASHER(6TA)

92907-08600-00

Unavailable

16

WASHER(JN5)

92907-08100-00

Unavailable

16

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

17

NUT, HEXAGON (509)

90170-08158-00

Unavailable

18

BOLT, WITH HOLE

(90102-12041-00)

Unavailable

19

NUT, HEXAGON SMALL

95317-12700-00

Unavailable

20

WASHER, PLATE(663)

92990-12600-00

Unavailable

21

PIN, COTTER

91490-20025-00

Unavailable

22

BAR, TENSION

2M0-25371-00-00

Unavailable
