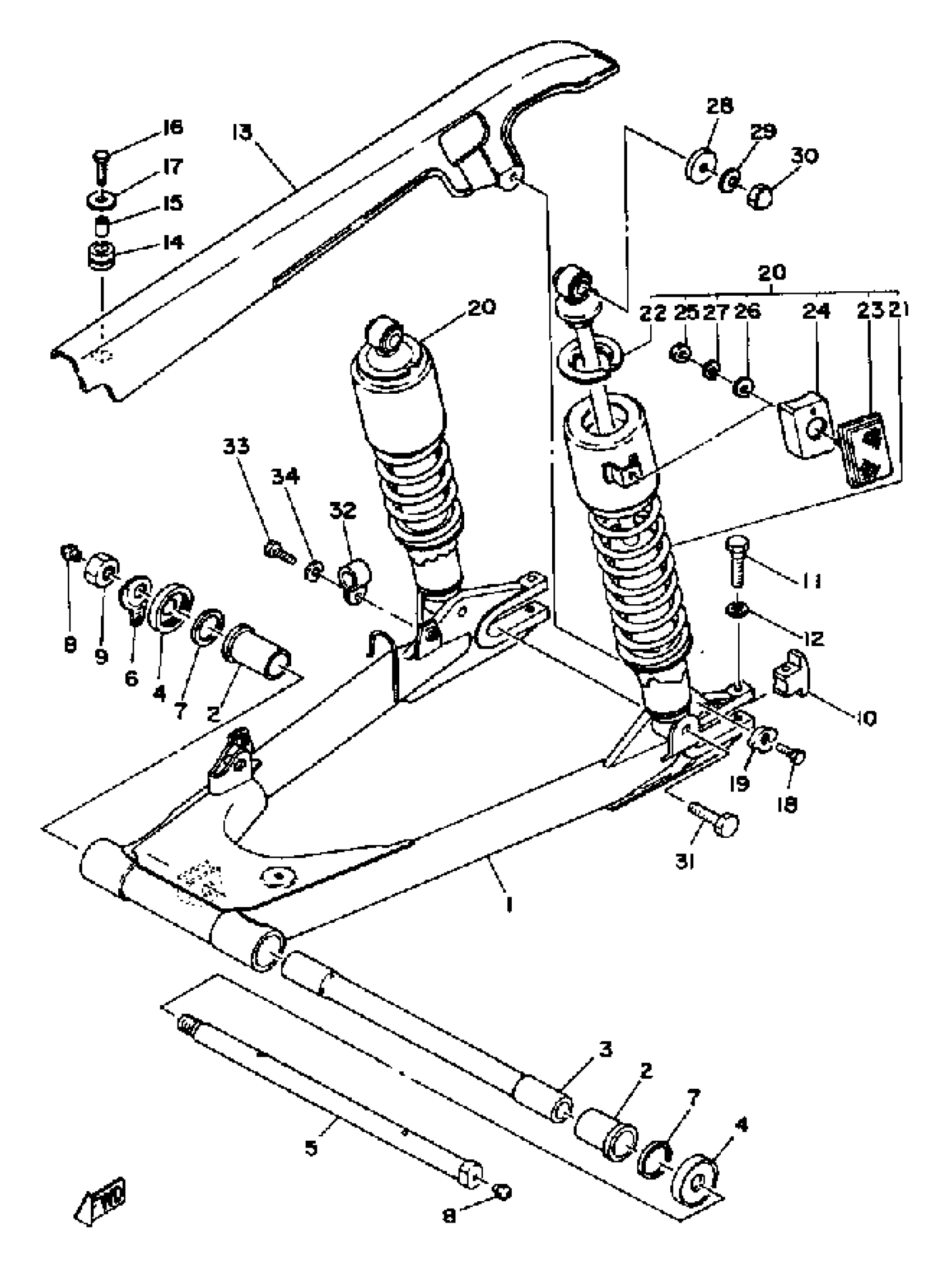

Yamaha XS650SE-114241 (XS650SE-114241) 1978 REAR ARM SUSPENSION Diagram

#

Description
Price

1

REAR ARM

(2M0-22110-01-33)

Unavailable

2

BUSH (5A9)

90386-22102-00

$40.99

3

BUSH

341-22184-00-00

Unavailable

4

COVER, THRUST

447-22128-00-00

$24.99

5

SHAFT, PIVOT

447-22141-00-00

Unavailable

6

WASHER, LOCK

90215-14055-00

Unavailable

7

SHIM,REAR ARM

240-22127-00-00

$6.99

8

NIPPLE, GREASE

93700-06M03-00

Unavailable

9

NUT

90170-14800-00

$4.14

10

BAR, COMPRESSION

341-22177-00-00

Unavailable

11

BOLT (8K4)

90101-08499-00

Unavailable

12

WASHER(JN5)

92907-08100-00

$8.49

13

CASE, CHAIN

2M0-22311-00-93

Unavailable

14

GROMMET 839774310000

90480-14023-00

$7.49

15

COLLAR

90387-07020-00

$8.49

16

BOLT, HEXAGON

97017-06025-00

Unavailable

17

WASHER, PLATE 1012832300

90201-06066-00

Unavailable

18

BOLT, HEXAGON

97017-06020-00

Unavailable

19

WASHER, LOCK

90215-07164-00

Unavailable

20

SHK/ABS ASSEMBLY, REAR

(3G1-22210-10-00)

Unavailable

20

SHK/ABS ASSEMBLY, REAR

4M4-22210-00-00

Unavailable

21

. SPRING

2M0-22212-00-00

Unavailable

22

. SEAT, SPRING UPPER

341-22213-20-00

Unavailable

23

REAR REFLECTOR ASSY

4KM-85130-00-00

Unavailable

24

. BASE, REFLECTOR REAR

3G1-85137-00-00

Unavailable

25

NUT, HEXAGON (663)

95380-05600-00

Unavailable

26

. WASHER, PLAIN

92990-05200-00

Unavailable

27

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

28

WASHER, PLATE (3J6)

90201-100A1-00

Unavailable

29

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

30

NUT, CAP (371)

90176-10009-00

Unavailable

31

BOLT ROUND 214222410000

90106-10025-00

Unavailable

32

CLAMP 1

90461-08031-00

Unavailable

33

BOLT, HEXAGON

97017-06012-00

Unavailable

34

WASHER, SPRING

92907-06100-00

Unavailable
