- XS650SE-114241 (XS650SE-114241) 1978
REAR ARM REAR CUSHION

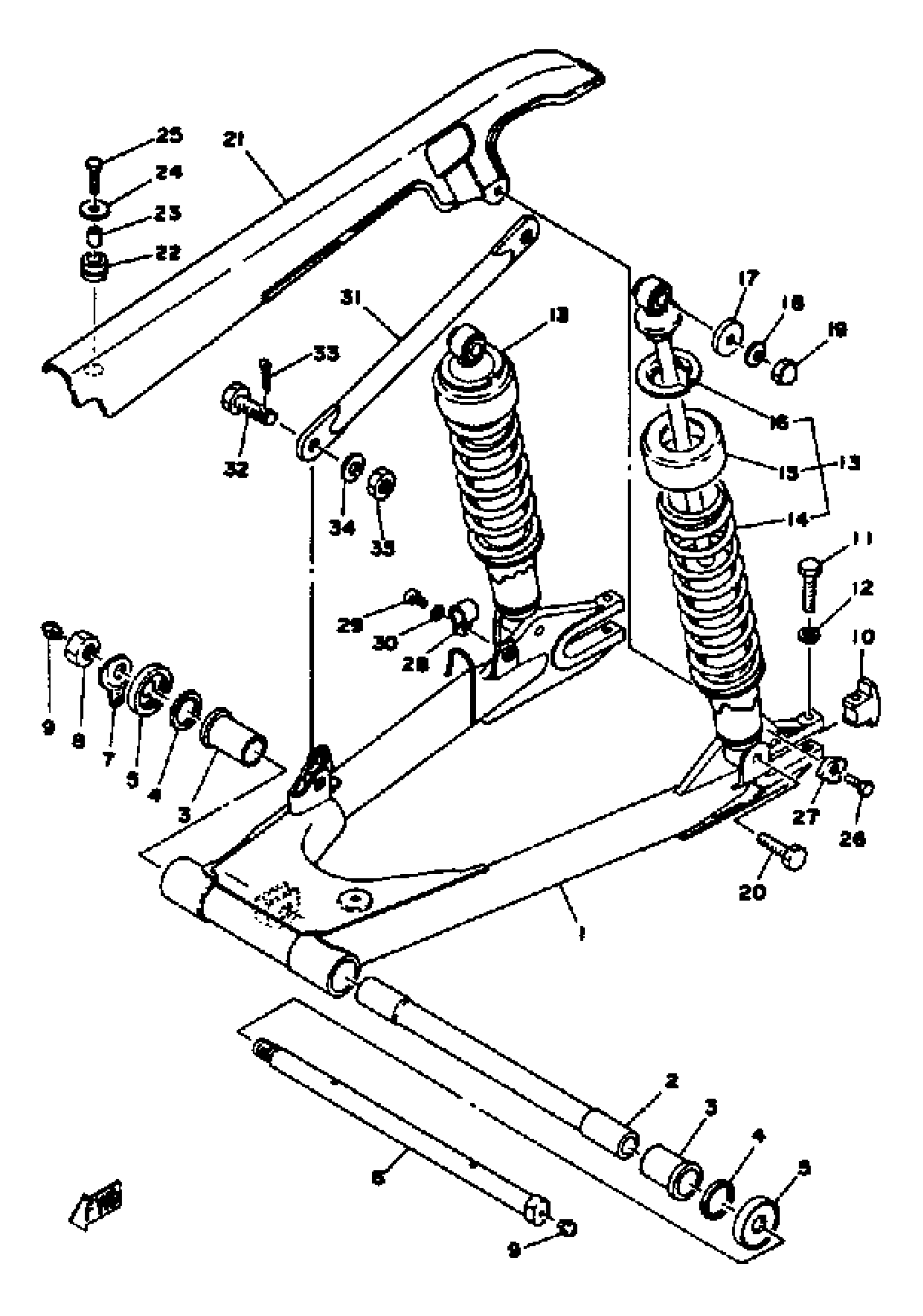

Yamaha XS650SE-114241 (XS650SE-114241) 1978 REAR ARM REAR CUSHION Diagram
#
1
REAR ARM
(2M0-22110-01-33)
Unavailable
2
BUSH
341-22184-00-00
Unavailable
6
SHAFT, PIVOT
447-22141-00-00
Unavailable
7
WASHER, LOCK
90215-14055-00
Unavailable
9
NIPPLE, GREASE
93700-06M03-00
Unavailable
10
BAR, COMPRESSION
341-22177-00-00
Unavailable
13
SHK/ABS ASSEMBLY, REAR
2M0-22210-00-00
Unavailable
13
SHK/ABS ASSEMBLY, REAR
(2M0-22210-10-00)
Unavailable
14
. SPRING
2M0-22212-00-00
Unavailable
14
SPRING
(2M0-22212-10-00)
Unavailable
15
COVER
(447-22211-21-00)
Unavailable
16
. SEAT, SPRING UPPER
341-22213-20-00
Unavailable
17
WASHER PLATE 341222430000
90201-10142-00
Unavailable
18
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
19
NUT, CAP (371)
90176-10009-00
Unavailable
20
BOLT ROUND 214222410000
90106-10025-00
Unavailable
21
CASE, CHAIN
2M0-22311-00-93
Unavailable
22
GROMMET 839774310000
90480-14023-00
Unavailable
23
COLLAR
90387-07020-00
Unavailable
24
WASHER, PLATE 1012832300
90201-06066-00
Unavailable
25
BOLT, HEXAGON
97017-06025-00
Unavailable
26
BOLT(3DM)
97024-06020-00
Unavailable
27
WASHER, LOCK
90215-07164-00
Unavailable
28
CLAMP 1
90461-08031-00
Unavailable
29
SCREW, PAN HEAD(62J)
97885-06012-00
Unavailable
30
WASHER, SPRING
92995-06100-00
Unavailable
31
BAR, TENSION
2M0-25371-00-00
Unavailable
32
BOLT
(90109-08499-00)
Unavailable
33
BUSH (5A9)
90386-22102-00
Unavailable
33
PIN, COTTER
91490-20025-00
Unavailable
34
WASHER, PLATE(663)
92990-12600-00
Unavailable
35
NUT, HEXAGON SMALL
95317-12700-00
Unavailable
35
NUT, HEXAGON SMALL
95317-12700-00
Unavailable
