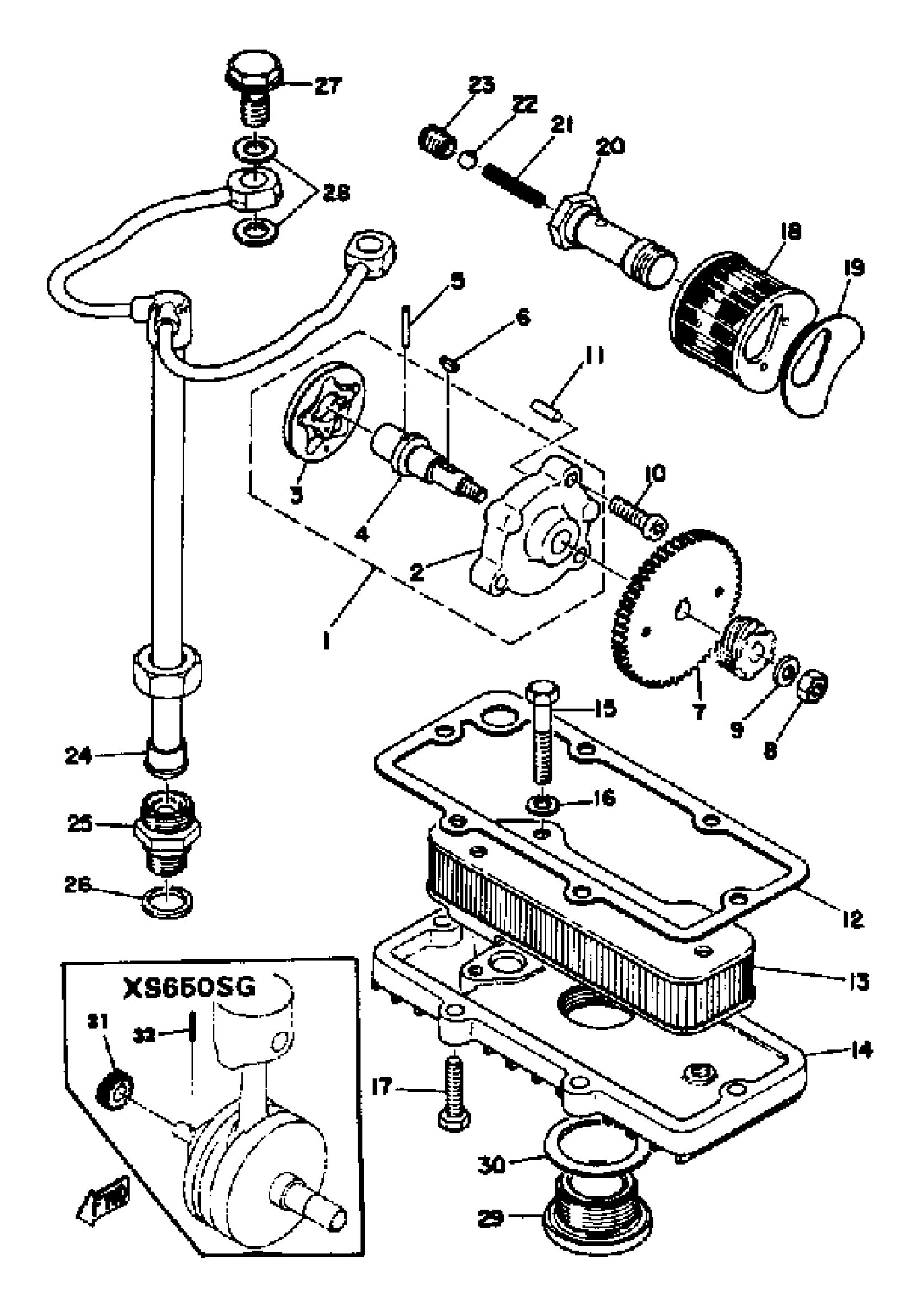

Yamaha XS650SE-114241 (XS650SE-114241) 1978 OIL PUMP Diagram
#
Description
Price
1
COVER, PUMP
256-00001-01-00
Unavailable
2
. COVER, PUMP
256-13316-02-00
Unavailable
3
. ROTOR ASSEMBLY 1
256-13310-02-00
Unavailable
4
. SHAFT, PUMP
256-13314-02-00
Unavailable
6
KEY, WOODRUFF
90280-03023-00
Unavailable
7
GEAR, PUMP DRIVEN
256-13325-00-00
Unavailable
8
NUT, HEXAGON
95380-06600-00
Unavailable
9
WASHER, SPRING
92995-06100-00
Unavailable
13
STRAINER, OIL
256-13411-01-00
Unavailable
14
COVER, STRAINER
256-13417-00-00
Unavailable
16
WASHER, SPRING
92995-06100-00
Unavailable
17
BOLT, HEXAGON
97017-06025-00
Unavailable
18
ELEMENT, OIL CLNR
256-13441-00-00
Unavailable
19
GASKET, ELEMENT
256-13445-10-00
Unavailable
20
SCREW
256-13495-00-00
Unavailable
21
SPRING, COMPRESSION
90501-07031-00
Unavailable
22
BALL
93501-04011-00
Unavailable
23
SCREW, SPEC''L SHAPE
90149-10019-00
Unavailable
24
PIPE, DELIVERY 1
256-13161-01-00
Unavailable
25
BOLT, BANJO
256-13165-02-00
Unavailable
26
GASKET 256131670000
90430-14043-00
Unavailable
27
BOLT, UNION (16G)
90401-10084-00
Unavailable
28
GASKET (5R6)
90430-10171-00
Unavailable
29
PLUG, DRAIN
256-15351-00-00
Unavailable
30
GASKET, DRAIN PLUG
256-15353-00-00
Unavailable
31
GEAR, PUMP DRIVE
(256-13324-01-00)
Unavailable
