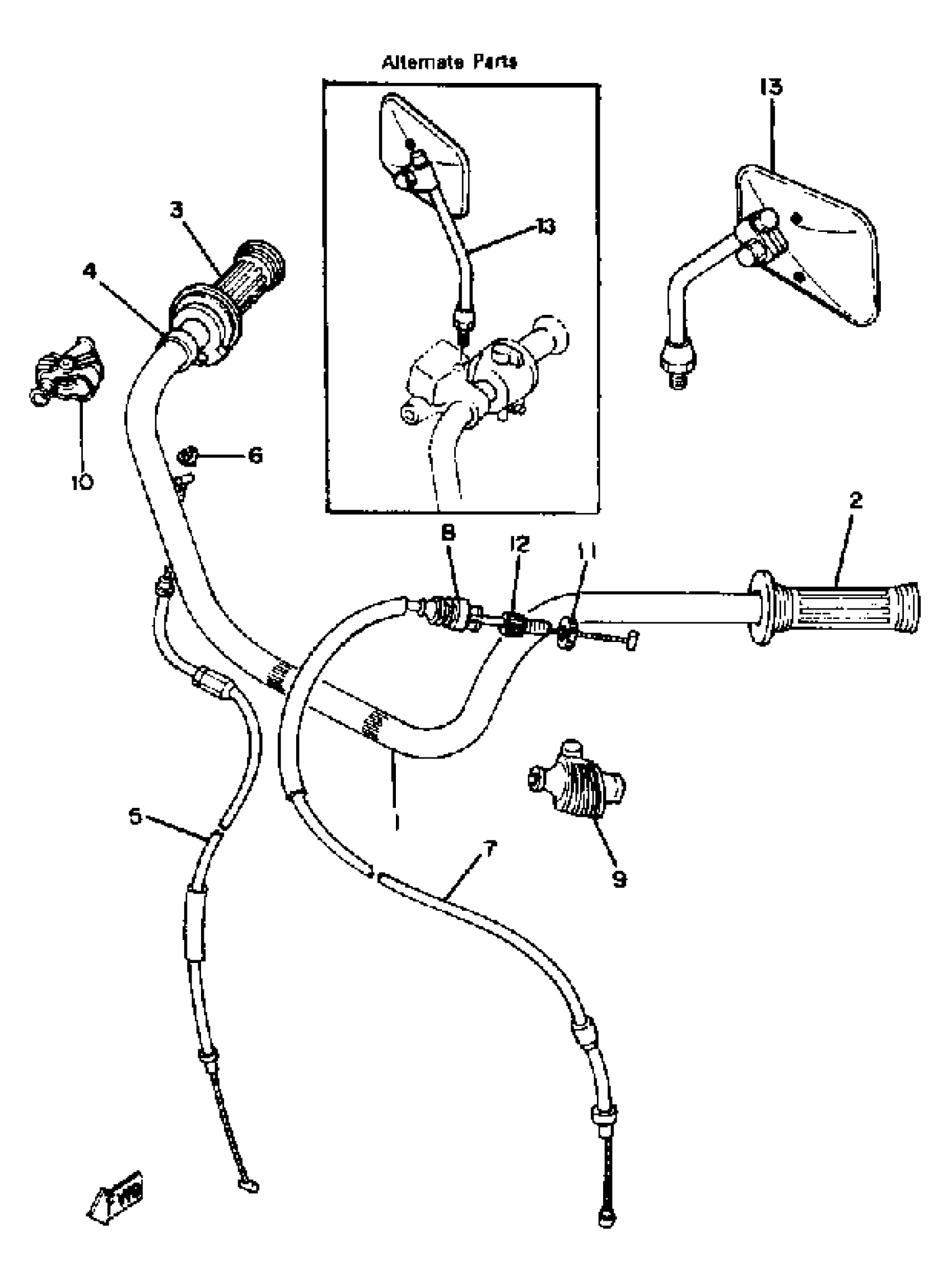

Yamaha XS650SE-114241 (XS650SE-114241) 1978 HANDLEBAR CABLE Diagram

#

Description
Price

1

HANDLEBAR

3H3-26111-00-00

Unavailable

2

GRIP LH

2H7-26241-01-00

$11.99

3

GRIP ASSY

2H7-26240-01-00

$18.49

4

COLLAR (2H7)

90387-22660-00

$9.49

5

CABLE, THROTTLE 1

2M0-26311-01-00

Unavailable

6

HOLDER,

584-26393-02-00

Unavailable

7

WIRE, CLUTCH

3L1-26335-00-00

Unavailable

8

BOOT, WIRE

1E6-26342-00-00

$30.99

9

COVER, LEVER

1E6-26372-00-00

$23.99

10

COVER, HANDLE LEVER (R.H)

1T5-26372-00-00

$20.99

11

NUT

90179-08030-00

$5.49

12

BOLT

90123-08002-00

$10.49

13

REAR VIEW MIRROR ASSY (RIGHT)

2G2-26290-01-00

$177.99

13

REAR VIEW MIRROR ASSY (LEFT)

2G2-26290-11-00

$177.99
