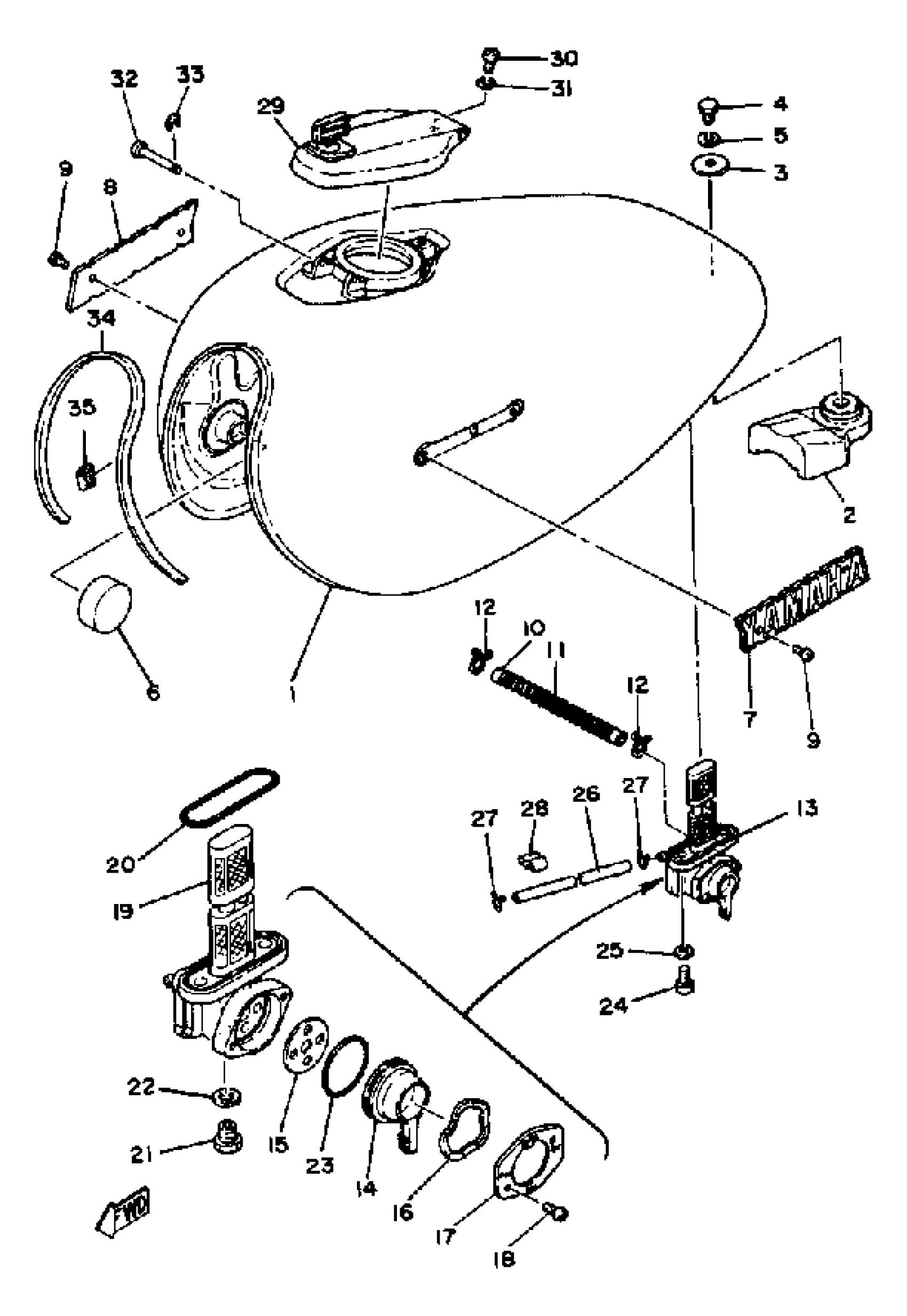

Yamaha XS650SE-114241 (XS650SE-114241) 1978 FUEL TANK SF Diagram
#
1
FUEL TANK
2M0-24110-00-E9
Unavailable
1
FUEL TANK
2M0-24110-00-H9
Unavailable
2
GRAPHIC, FUEL TNK 1
(2M0-24244-00-00)
Unavailable
3
GRAPHIC, FUEL TNK 2
(2M0-24245-00-00)
Unavailable
4
EMBLEM 1
2M0-24161-00-00
Unavailable
5
EMBLEM 2
2M0-24162-00-00
Unavailable
7
CAP ASSY
4R0-24602-01-00
Unavailable
8
SCREW, PAN HEAD(62X)
97885-05010-00
Unavailable
10
PIN, SPECIAL SHAPE
90249-03123-00
Unavailable
13
DAMPER, LOCATING 1
256-24181-01-00
Unavailable
15
WASHER, SPRING
92995-06100-00
Unavailable
16
WASHER PLATE 248217570000
90201-06074-00
Unavailable
17
FUEL COCK ASSEMBLY 1 (2M0-24500-03)
2M0-24500-04-00
Unavailable
18
FUEL COCK ASSEMBLY 2 (2M0-24510-02)
2M0-24510-04-00
Unavailable
19
O-RING
2G2-24512-00-00
Unavailable
20
UNAVAILABLE IN PRICE BOOK
3G1-24514-00-
Unavailable
20
UNAVAILABLE IN PRICE BOOK
3Y1-24514-00-
Unavailable
21
VALVE
16G-24523-00-00
Unavailable
22
O-RING
2G2-24534-00-00
Unavailable
23
LEVER, COCK
(2G2-24524-00-00)
Unavailable
23
LEVER, COCK
(2G2-24524-10-00)
Unavailable
24
. WASHER, WAVE
16G-24518-00-00
Unavailable
25
PLATE, LVR FITTING
(2G2-24525-00-00)
Unavailable
25
. PLATE, LVR FITTING
2G2-24525-10-00
Unavailable
26
SCREW, PAN HEAD (J10)
98580-03008-00
Unavailable
27
GASKET, DRAIN PLUG
2G2-24522-00-00
Unavailable
28
. PLUG, DRAIN
2G2-24543-00-00
Unavailable
29
SCREW 366241430000
90149-06008-00
Unavailable
30
WASHER, PLATE(3MB)
90202-05187-00
Unavailable
31
HOSE (L400)
90445-116K9-00
Unavailable
32
SPRING, COMPRESSION
90504-06023-00
Unavailable
33
CLIP
90467-090A2-00
Unavailable
34
HOSE (L200)
90445-07176-00
Unavailable
35
CLIP (1J7)
90467-07029-00
Unavailable
36
CLAMP(56R)
90464-60067-00
Unavailable
37
PLATE, MOLD
2M0-24189-00-00
Unavailable
38
CLIP
90468-03063-00
Unavailable
