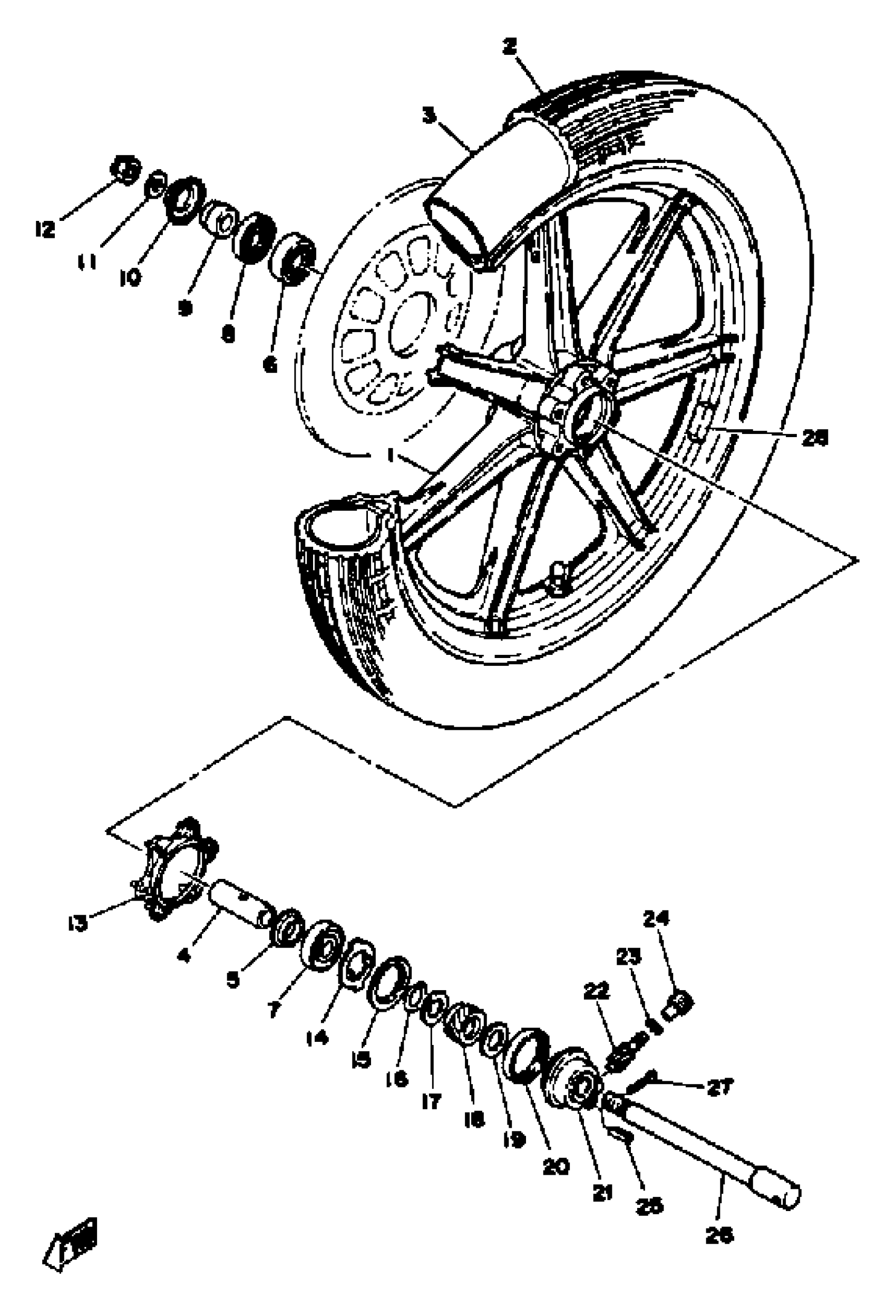

Yamaha XS650SE-114241 (XS650SE-114241) 1978 FRONT WHEEL Diagram

#

Description
Price

1

WHEEL, CAST FRONT

(2H7-25168-20-00)

Unavailable

1

WHEEL, CAST FRONT 000

(2M1-25168-20-00)

Unavailable

2

VALVE, RIM (31A)

93900-00031-00

$16.99

2

350S19 Y990TL YOKO 000

(94135-19400-00)

Unavailable

2

UNAVAILABLE IN PRICE BOOK

(NA---)

Unavailable

3

TUBE(42X)

94210-19222-00

$49.99

3

TUBE(42X)

94210-19224-00

$33.99

4

SPACER 341251170100

90560-17126-00

$16.99

5

FLANGE, SPACER

146-25315-00-00

$7.99

6

BEARING(4HM)

93306-30317-00

$39.99

7

BEARING(4HM)

93306-30317-00

$39.99

8

OIL SEAL (28X47X7-102)

93102-28022-00

$14.99

9

COLLAR

90387-17433-00

Unavailable

10

COVER, HUB DUST

341-25118-00-00

Unavailable

11

WASHER, PLAIN

92990-14200-00

$5.49

12

NUT, CASTLE(2UJ)

90171-14056-00

Unavailable

13

COVER, HOUSING

1U4-25847-00-00

Unavailable

14

CLUTCH, METER (371,447)

341-25149-00-00

Unavailable

15

RETAINER, CLUTCH (371,447)

341-25846-00-00

Unavailable

16

RING, STOP

341-25137-00-00

Unavailable

17

WASHER PLATE 341251470000

90201-25286-00

Unavailable

18

GEAR, DRIVE

341-25135-01-00

Unavailable

19

WASHER PLATE 152172260000

90201-25490-00

Unavailable

20

OIL SEAL (45X56X6)

93105-45017-00

Unavailable

21

HOUSING, GEAR

341-25191-01-00

Unavailable

22

GEAR, METER

306-25138-00-00

Unavailable

23

SHIM, ROD

102-18416-00-00

Unavailable

24

BUSH

306-25136-00-00

Unavailable

25

PIN, SPRING (V60)

91609-20014-00

Unavailable

26

AXLE, WHEEL

99999-04072-00

Unavailable

27

PIN, COTTER

91490-30030-00

Unavailable

28

BALANCER, WHEEL

5MT-25398-00-00

Unavailable

28

BALANCER, WHEEL

5MT-25398-00-00

Unavailable

28

BALANCER, WHEEL

5MT-25398-00-00

Unavailable
