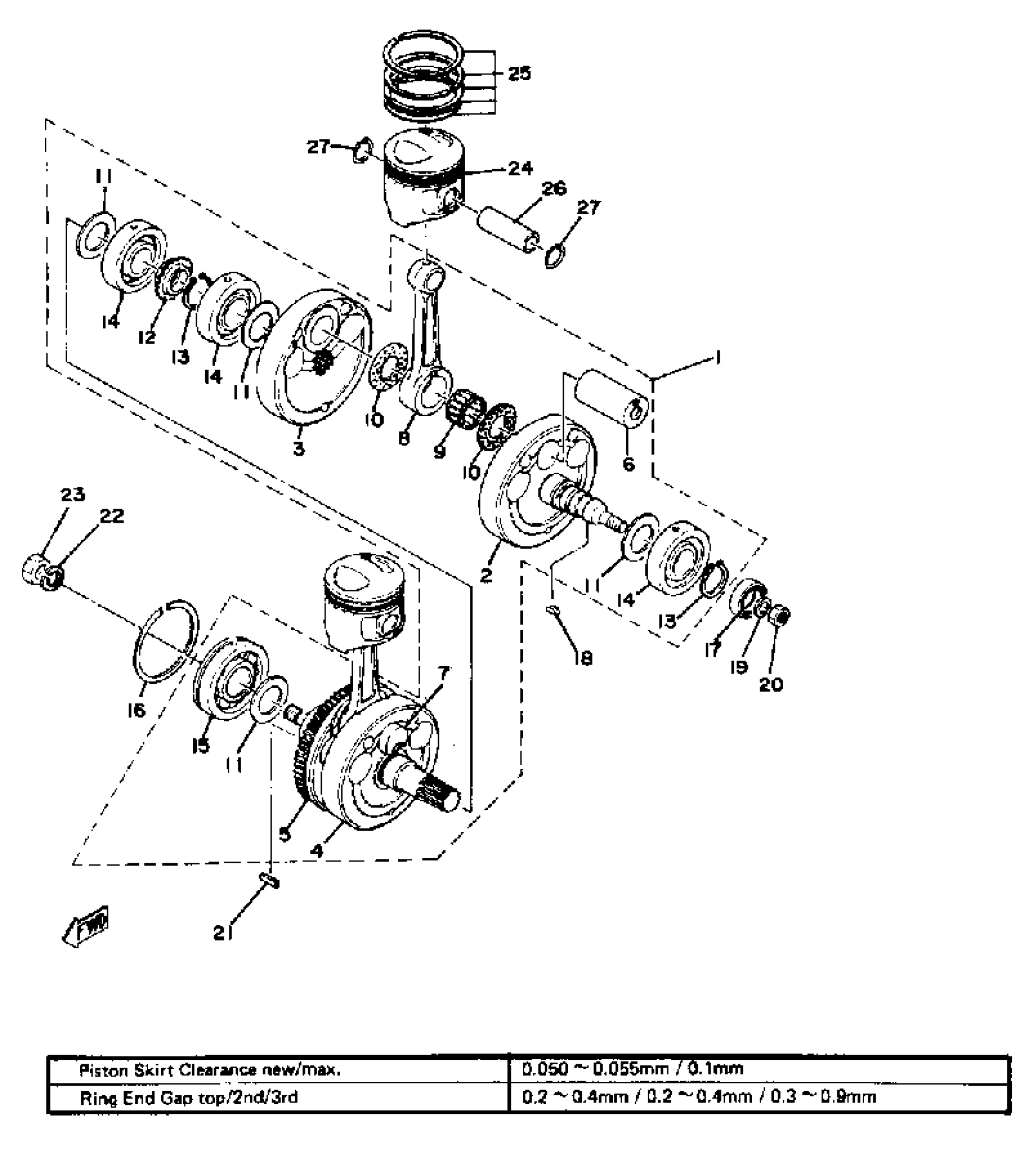

Yamaha XS650SE-114241 (XS650SE-114241) 1978 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSEMBLY

447-11400-01-00

Unavailable

2

. CRANK 1

(256-11412-01-00)

Unavailable

3

. CRANK 2

(256-11422-01-00)

Unavailable

4

. CRANK 3

(256-11432-02-00)

Unavailable

5

. CRANK 4

(306-11442-03-00)

Unavailable

6

. ROD, CONNECTING

447-11651-00-00

Unavailable

7

. BEARING, CYLINDER#10

93310-62660-00

Unavailable

8

. WASHER, SPEC''L SHAP

90209-26014-00

Unavailable

9

PIN,CRANK 1

306-11681-00-00

Unavailable

10

PIN,CRANK 1

306-11681-00-00

Unavailable

11

WASHER (8H0)

90201-34683-00

$10.49

12

BRG,CYL-CAL ROLLER 314G KY

93390-00003-00

$250.99

13

CIRCLIP

93410-32075-00

$9.49

14

. SPROCKET, CAM CHAIN

447-11549-01-00

Unavailable

15

BEARING

93306-30604-00

Unavailable

16

PISTON KIT STD

(447-11630-00-00)

Unavailable

16

PISTON KIT 1ST

(447-11630-10-00)

Unavailable

16

PISTON KIT 2ND

(447-11630-20-00)

Unavailable

16

PISTON KIT 3RD

(447-11630-30-00)

Unavailable

16

PISTON KIT 4TH

(447-11630-40-00)

Unavailable

16

PISTON STD (447-11631-01-97)

447-11631-01-96

Unavailable

16

PISTON 1 O/S 0.25

447-11635-01-00

Unavailable

16

PISTON 2 O/S 0.50

447-11636-01-00

Unavailable

16

PISTON 3 O/S 0.75

447-11637-01-00

Unavailable

16

PISTON 4 O/S 1.00

447-11638-01-00

Unavailable

17

PISTON RING SET (STD)

447-11610-00-00

Unavailable

17

PISTON RING SET (STD) 1ST O/S

447-11610-10-00

Unavailable

17

PISTON RING SET (STD) 2ND O/S

447-11610-20-00

Unavailable

17

PISTON RINGSET 3RD

447-11610-30-00

Unavailable

17

PISTON RINGSET 4TH

447-11610-40-00

Unavailable

18

PIN, PISTON

447-11633-00-00

Unavailable

19

CIRCLIP 341116340000

93450-22027-00

Unavailable

20

PIN, DOWEL

93605-12069-00

Unavailable

21

OIL SEAL (25X40X8-248)

93102-25061-00

Unavailable

22

YBS67-12 WASHER,SPRING

92990-12100-00

Unavailable

23

NUT(3DM)

95304-12600-00

Unavailable

24

KEY,WOODRUFF

90280-04005-00

Unavailable

25

CIRCLIP, OUTER

93440-78011-00

Unavailable

26

GEAR, PRI DRIVE

(256-16111-00-00)

Unavailable

27

WASHER, PLATE

90201-16579-00

Unavailable

28

GEAR, PUMP DRIVE

(256-13324-01-00)

Unavailable

29

WASHER(6TC)

92907-14100-00

Unavailable

30

NUT, HEXAGON

90170-14076-00

Unavailable

31

PIN,DOWEL

93603-17070-00

Unavailable

32

KEY, STRAIGHT (584)

90282-07023-00

Unavailable
