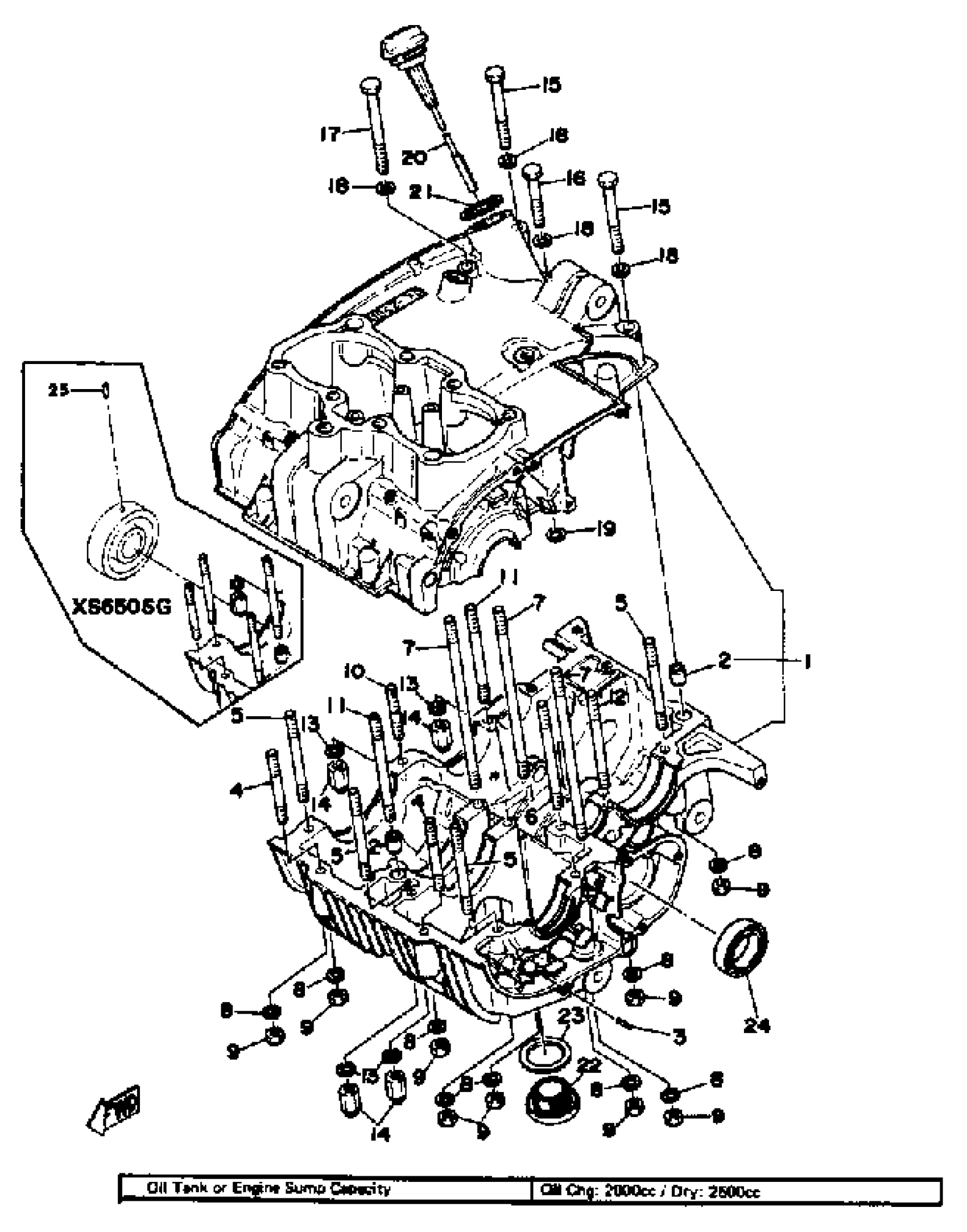

Yamaha XS650SE-114241 (XS650SE-114241) 1978 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSEMBLY

(306-15100-03-00)

Unavailable

2

PIN, DOWEL

99530-12016-00

$4.89

3

PIN, DOWEL

93603-14026-00

$8.49

4

BOLT,STUD

90116-08371-00

Unavailable

5

BOLT (248-11361-00)

90116-08064-00

$7.49

6

BOLT, STUD (1A1)

90116-08232-00

$12.49

7

BOLT, STUD

(90116-08199-00)

Unavailable

8

WASHER, PLAIN

92990-08200-00

Unavailable

9

NUT(6L2)

95333-08600-00

$2.49

10

BOLT, STUD (306-15192-00)

90116-08047-00

Unavailable

11

BOLT, STUD

90116-08066-00

Unavailable

12

BOLT, STUD (19U)

90116-08393-00

$9.49

13

. GASKET

90430-08143-00

Unavailable

14

NUT, CROWN

90176-08019-00

Unavailable

15

BOLT (6K8)

97013-08075-00

$7.49

16

BOLT, HEXAGON

97013-08055-00

Unavailable

16

BOLT, HEXAGON

97013-08055-00

Unavailable

17

BOLT (97321-08090)

97023-08090-00

Unavailable

18

WASHER, PLAIN

92990-08200-00

Unavailable

19

GASKET, OIL SEALING

256-15395-00-00

Unavailable

20

PLUG, OIL LEVEL

256-15362-02-00

Unavailable

21

GASKET 214217720000

90430-29114-00

Unavailable

22

PLUG, DRAIN

256-15351-00-00

Unavailable

23

GASKET, DRAIN PLUG

256-15353-00-00

Unavailable

24

OIL SEAL (34X46X10.5-306)

93102-34095-00

Unavailable

25

PIN, DOWEL

93605-12069-00

Unavailable
