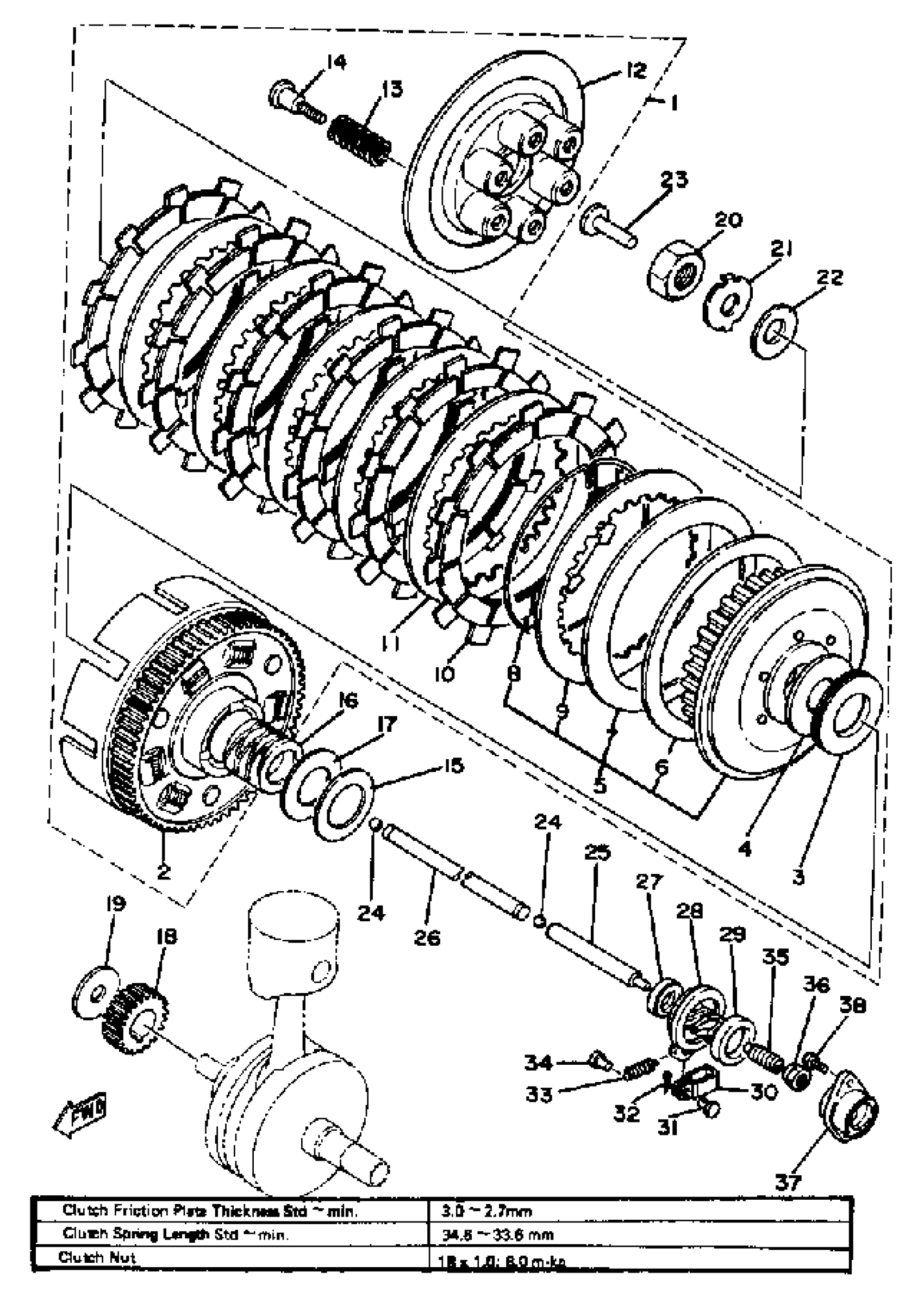

Yamaha XS650SE-114241 (XS650SE-114241) 1978 CLUTCH Diagram
#
Description
Price
1
CLUTCH ASSEMBLY
(447-16301-02-00)
Unavailable
2
PRI DRVN GEAR
(256-16150-02-00)
Unavailable
3
BEARING, FLAT #41
93341-23504-00
Unavailable
5
BOSS, CLUTCH
(341-16371-10-00)
Unavailable
8
. PLATE, PRESSURE 1
341-16351-01-00
Unavailable
10
SCREW (584)
90149-06102-00
Unavailable
11
ROD, PUSH 1
256-16356-00-00
Unavailable
12
NUT
90170-18089-00
Unavailable
13
SPRING
214-16119-00-00
Unavailable
14
WASHER (6E5)
92990-18200-00
Unavailable
15
SPACER
90560-25131-00
Unavailable
17
WASHER, PLATE(1FK)
90201-256K6-00
Unavailable
18
BALL
93505-16006-00
Unavailable
19
ROD, PUSH 2
447-16357-01-00
Unavailable
20
ROD, PUSH 3
341-16376-00-00
Unavailable
21
OIL SEAL (3G1)
93102-08206-00
Unavailable
22
PUSH LEVER ASSEMBLY
1T3-16340-00-00
Unavailable
23
SEAL, DUST
214-16347-01-00
Unavailable
24
BOLT SET 256163430100
90113-08021-00
Unavailable
25
NUT
90179-08179-00
Unavailable
26
HOUSING, PUSH SCREW
371-16396-00-00
Unavailable
27
SCREW,PAN HEAD (646)
98580-05012-00
Unavailable
28
JOINT
214-16389-00-00
Unavailable
29
PIN W/HOLE 214163790000
90240-06005-00
Unavailable
30
. PIN, COTTER
91401-10015-00
Unavailable
31
SPRING, TENSION
90506-10023-00
Unavailable
32
HOOK, SPRING
132-16346-00-00
Unavailable
