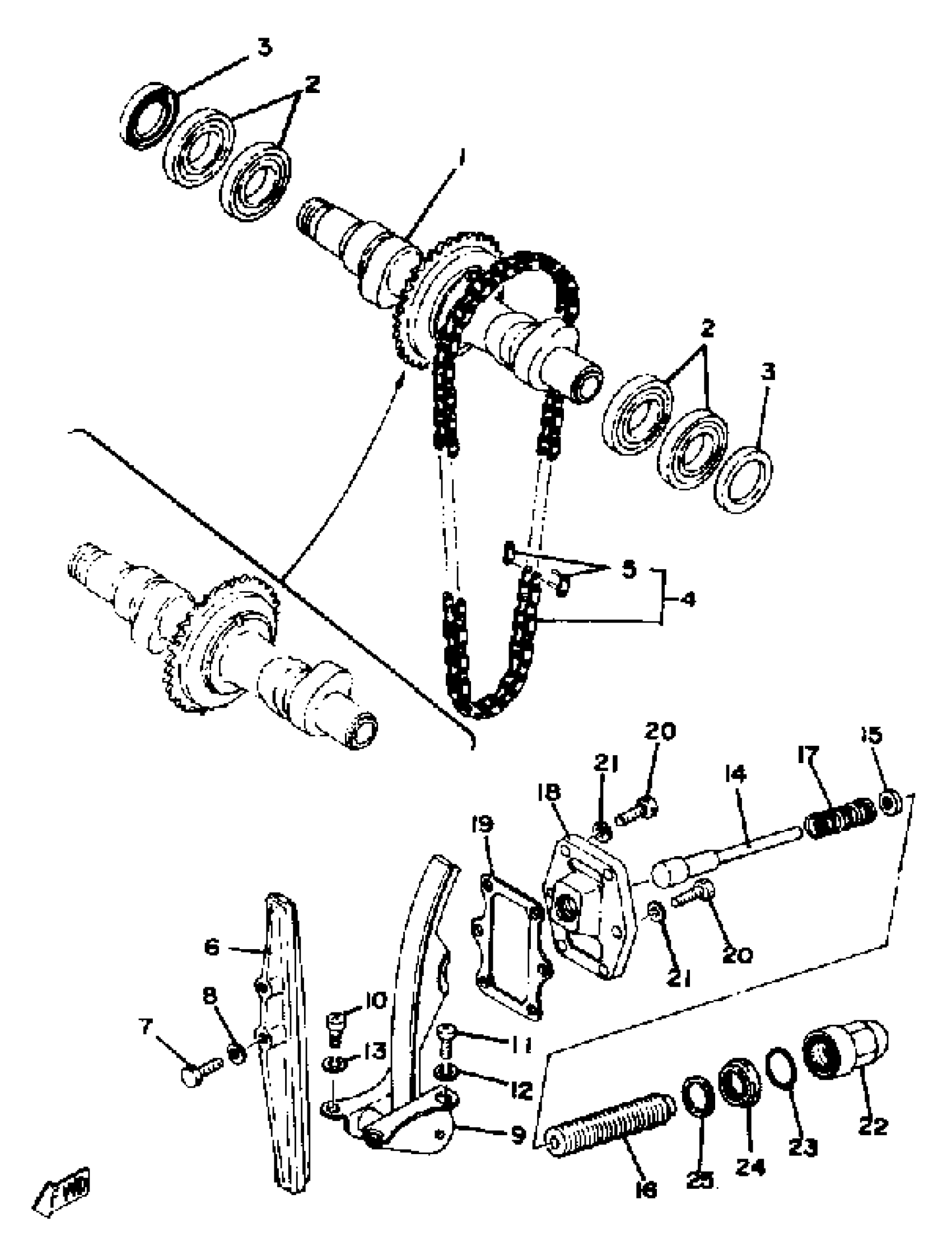

Yamaha XS650SE-114241 (XS650SE-114241) 1978 CAMSHAFT CHAIN TENSIONER Diagram

#

Description
Price

1

CAMSHAFT ASSEMBLY 1

447-12170-00-00

Unavailable

2

BUSHING (256-11154-00)

90386-12093-00

$18.99

3

. SEAL, LABYRINTH

256-11155-00-00

Unavailable

4

BRG. (256)

93316-00501-00

$33.99

5

OIL SEAL (25X40X5-256)

93102-25090-00

$14.99

6

SHAFT, BREAKER

256-11156-00-00

Unavailable

7

PIN, DOWEL

93603-07073-00

$9.49

8

NUT, HEXAGON

95380-06600-00

Unavailable

9

WASHER, SPRING

92995-06100-00

Unavailable

10

GUIDE, STOPPER 2

447-12220-00-00

Unavailable

11

SCREW, SPEC''L SHAPE

90149-06009-00

Unavailable

12

SCREW, PAN

98507-06014-00

$8.49

14

GASKET,TENSION CAS

306-12213-12-00

Unavailable

14

WASHER, SPRING

92995-06100-00

Unavailable

15

HOLDER, TENSIONER

584-12211-00-00

Unavailable

16

BOLT(3DM)

97024-06020-00

Unavailable

17

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

18

ROD, CHN TENSIONER

341-12217-04-00

Unavailable

19

SPRING COMPRESSION341122160200

90501-14095-00

Unavailable

20

DAMPER

341-12232-01-00

Unavailable

21

DAMPER, CHAIN TENSIONER ROD

2H0-12232-00-00

Unavailable

21

BOLT

90109-18580-00

Unavailable

21

BOLT (3G1)

(99999-01144-00)

Unavailable

22

O-RING

93210-21190-00

Unavailable

22

O-RING

93210-22366-00

Unavailable

23

NUT, CROWN

90176-18021-00

Unavailable

24

GUIDE, STOPPER 1

256-12231-01-00

Unavailable

25

GASKET 256113960000

90430-06014-00

Unavailable

26

BOLT(3DM)

97024-06020-00

Unavailable

27

CHAIN, CAM SHAFT (583)

94500-02106-00

Unavailable

27

CHAIN

94562-19106-00

Unavailable

28

JOINT, CHAIN (583)

94600-02001-00

Unavailable

28

JOINT, CHAIN

94662-19001-00

Unavailable

29

GOVERNOR ASSEMBLY

256-81653-10-00

Unavailable

30

CAM

256-81651-10-00

Unavailable

31

BREAKER PLATE ASSEMBLY

447-81620-10-00

Unavailable

32

CONTACT BREAKER ASSY

256-81621-11-00

Unavailable

33

. LUBRICATOR

256-81631-10-00

Unavailable

34

. WIRE, LEAD

256-81615-10-00

Unavailable

35

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

36

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

37

YBS66-4 WASHER, PLAIN

92990-04200-00

Unavailable
