BRAKE PEDAL REAR MASTER CYLINDER

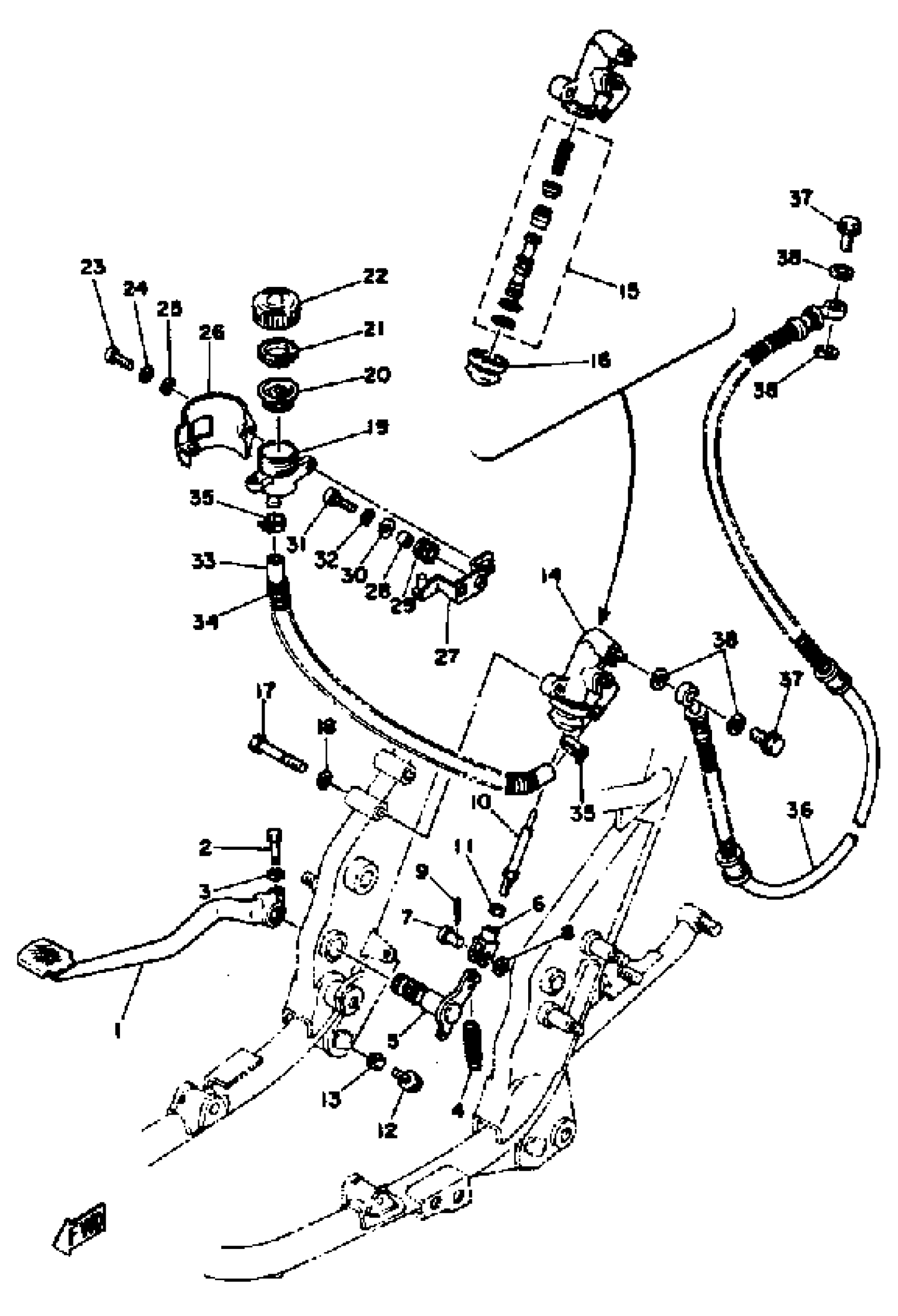

Yamaha XS650SE-114241 (XS650SE-114241) 1978 BRAKE PEDAL REAR MASTER CYLINDER Diagram
#
1
PEDAL, BRAKE
533-27211-01-93
Unavailable
3
WASHER, SPRING
92995-06100-00
Unavailable
4
SPRING, TENSION
90506-23204-00
Unavailable
5
SHAFT, BRAKE PEDAL
(2M0-27212-00-00)
Unavailable
6
JOINT
1A1-27222-01-00
Unavailable
9
PIN, COTTER
91490-16020-00
Unavailable
10
ROD, BRAKE
1J7-27231-00-00
Unavailable
11
. NUT
95380-08700-00
Unavailable
14
MSTR CYLINDER ASSEMBLY
2M0-25850-50-00
Unavailable
15
CYLINDER KIT, REAR MASTER
1J3-W0042-50-00
Unavailable
16
. BOOT, MASTER CYLINDER
1J3-25862-50-00
Unavailable
17
BOLT, HEXAGON
97017-08055-00
Unavailable
17
BOLT, HEXAGON
97013-08055-00
Unavailable
18
WASHER(JN5)
92907-08100-00
Unavailable
18
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
19
TANK, RESERVOIR
1A1-25894-01-00
Unavailable
20
DIAPHRAGM, RESERVER
360-25854-01-00
Unavailable
21
BUSH,DIAPHRAGM
2GU-25855-00-00
Unavailable
22
CAP, RESERVOIR
2KF-25852-50-00
Unavailable
23
SCREW, PAN
98517-06020-00
Unavailable
23
SCREW PAN HEAD
98580-06020-00
Unavailable
24
WASHER, SPRING
92907-06100-00
Unavailable
24
WASHER, SPRING
92995-06100-00
Unavailable
25
WASHER(6TA)
92907-06200-00
Unavailable
25
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
26
COVER, RESVR TANK
(2M0-25888-00-00)
Unavailable
27
BRACKET, DAMPER
(2M0-21798-00-00)
Unavailable
28
COLLAR
90387-07020-00
Unavailable
29
GROMMET 839774310000
90480-14023-00
Unavailable
30
WASHER, PLATE
90201-06380-00
Unavailable
31
SCREW, PAN HEAD (76T)
98517-06025-00
Unavailable
32
WASHER, SPRING
92995-06100-00
Unavailable
33
HOSE, RESERVOIR
2M0-25895-00-00
Unavailable
34
SPRING, COMPRESSION
(90501-10502-00)
Unavailable
35
BAND, HOSE 15
90601-11525-00
Unavailable
36
HOSE, BRAKE 1
2M0-25872-50-00
Unavailable
37
BOLT, UNION(3GM)
90401-10159-00
Unavailable
38
WASHER, PLATE(481)
90201-10118-00
Unavailable
