Description

Price

1

VALVE, INTAKE#4

341-12111-04-00

Unavailable

2

VALVE, EXHAUST#1

341-12121-01-00

Unavailable

3

SPRING, COMPRESSION

90501-29284-00

Unavailable

4

SPRING, COMPRESSION

90501-42286-00

Unavailable

5

SEAT, VALVE SPRING

256-12116-01-00

Unavailable

6

RETAINER, VALVE SPRING

256-12117-02-00

$15.49

7

LOCK, VALVE SPRING (447)

341-12118-00-00

$9.99

8

SEAL, VALVE STEM OIL

341-12119-02-00

$18.49

9

ARM, VALVE ROCKER

306-12151-00-00

Unavailable

10

SHAFT, ROCKER

256-12156-01-00

Unavailable

11

SCREW, VALVE ADJUSTING

3HT-12159-R0-00

$16.49

12

NUT, HEXAGON

90170-08173-00

$8.49

13

PLUG, STRAIGHT SCRW

90340-18017-00

Unavailable

14

O-RING

93210-17143-00

Unavailable

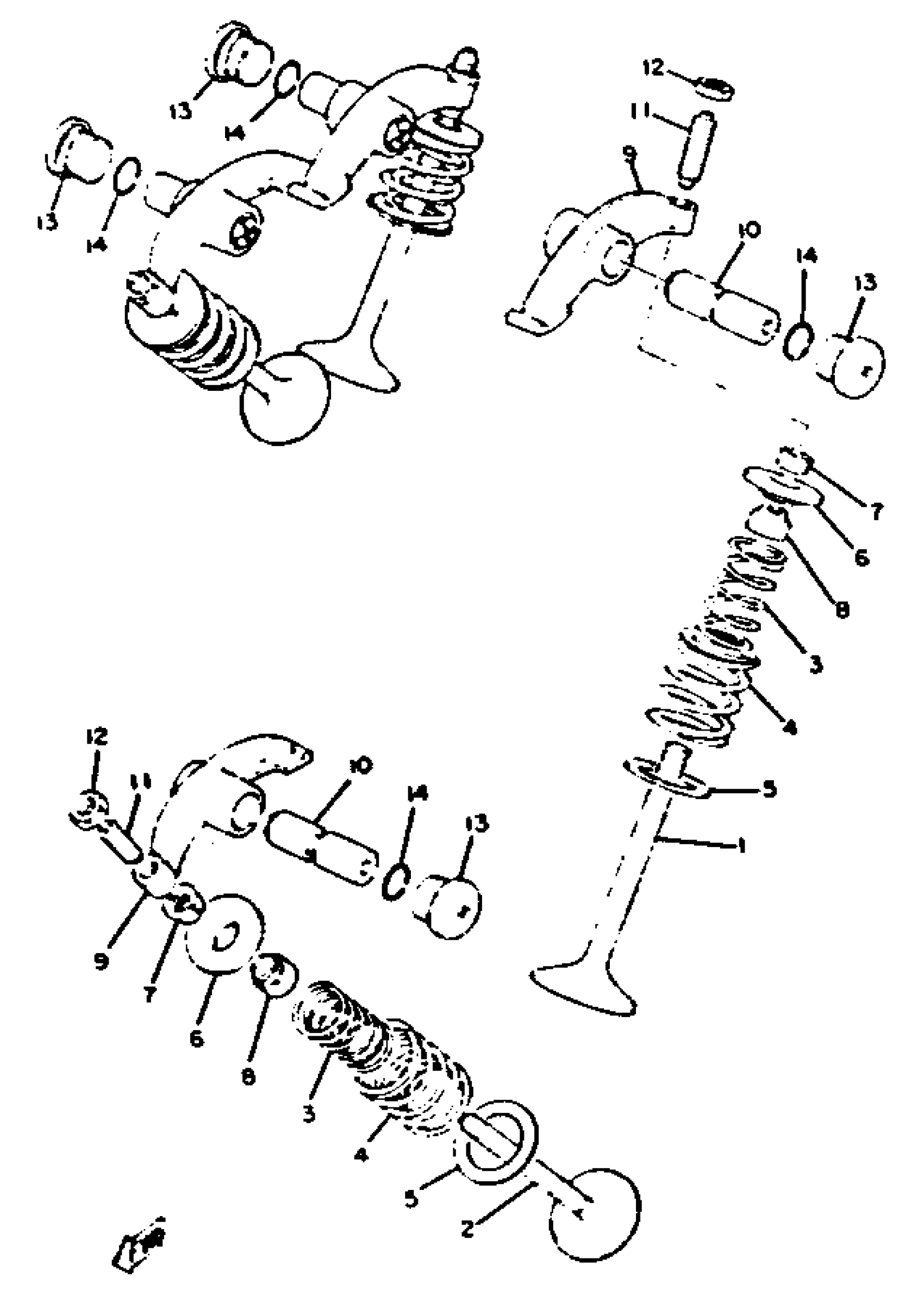

Yamaha XS650H (XS650) 1981 VALVE Diagram

VALVE, INTAKE#4

VALVE, EXHAUST#1

SPRING, COMPRESSION

SPRING, COMPRESSION

SEAT, VALVE SPRING

RETAINER, VALVE SPRING

LOCK, VALVE SPRING (447)

SEAL, VALVE STEM OIL

ARM, VALVE ROCKER

SHAFT, ROCKER

SCREW, VALVE ADJUSTING

NUT, HEXAGON

PLUG, STRAIGHT SCRW

O-RING
