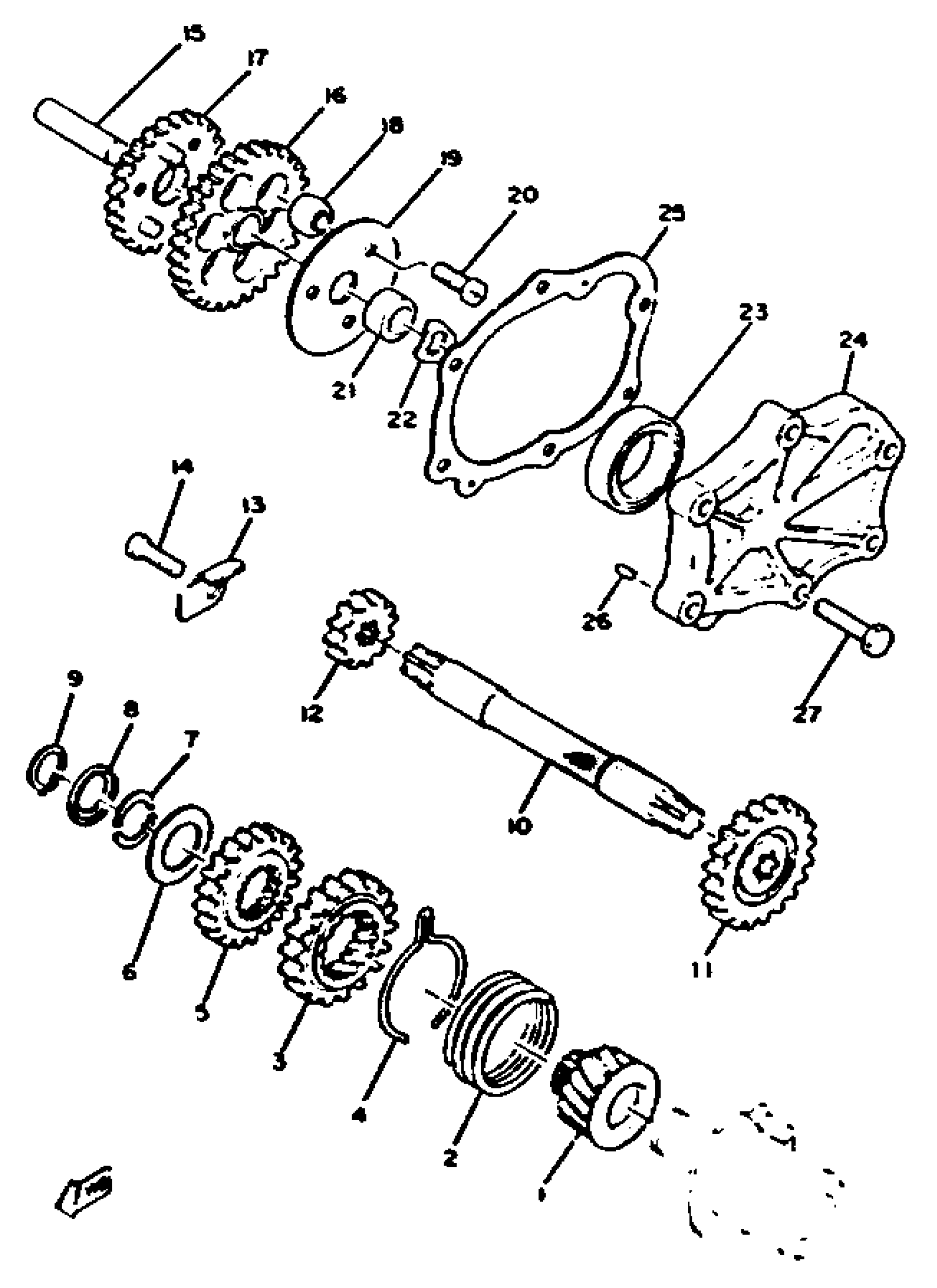

Yamaha XS650H (XS650) 1981 STARTING MOTOR UNIT Diagram

#

Description
Price

1

WHEEL STARTER

306-Y1554-00-00

Unavailable

2

SPRING, COMPRESSION

90501-15409-00

Unavailable

3

. GEAR 4

447-15516-00-00

Unavailable

4

. CLIP

90468-29062-00

Unavailable

5

GEAR 3

306-15515-00-00

Unavailable

6

WASHER PLATE 306155610000

90201-17257-00

$7.49

7

CLIP

306-15562-00-00

Unavailable

8

HOLDER, CLIP

306-15563-00-00

Unavailable

9

CIRCLIP(1EY)

99009-17400-00

$4.73

10

SHAFT 2

306-15522-00-00

Unavailable

11

GEAR 1

306-15513-00-00

Unavailable

12

GEAR 2

306-15514-00-00

Unavailable

13

PLATE, STOPPER

447-15531-00-00

Unavailable

14

SCREW PAN HEAD

98580-06020-00

$8.49

15

SHAFT 1

1AE-15521-00-00

Unavailable

16

GEAR, IDLER 1

(306-15512-00-00)

Unavailable

17

GEAR, IDLER 2

306-15517-00-00

Unavailable

18

ABSORBER

306-15571-00-00

Unavailable

19

PLATE, IDLE GEAR

306-15532-00-00

Unavailable

20

SCREW, PAN HEAD(6E5)

97880-06018-00

Unavailable

21

COLLAR

90387-12093-00

Unavailable

22

WASHER, WAVE (17W)

90206-12074-00

Unavailable

23

OIL SEAL (34X46X10.5-306)

93102-34095-00

Unavailable

24

COVER, CRANKCASE 3

(306-15431-00-00)

Unavailable

25

GASKET,GR CRNK CVR

306-15452-10-00

Unavailable

26

PIN, DOWEL (278)

93604-08071-00

Unavailable

27

BOLT, HEXAGON

97017-06025-00

Unavailable
