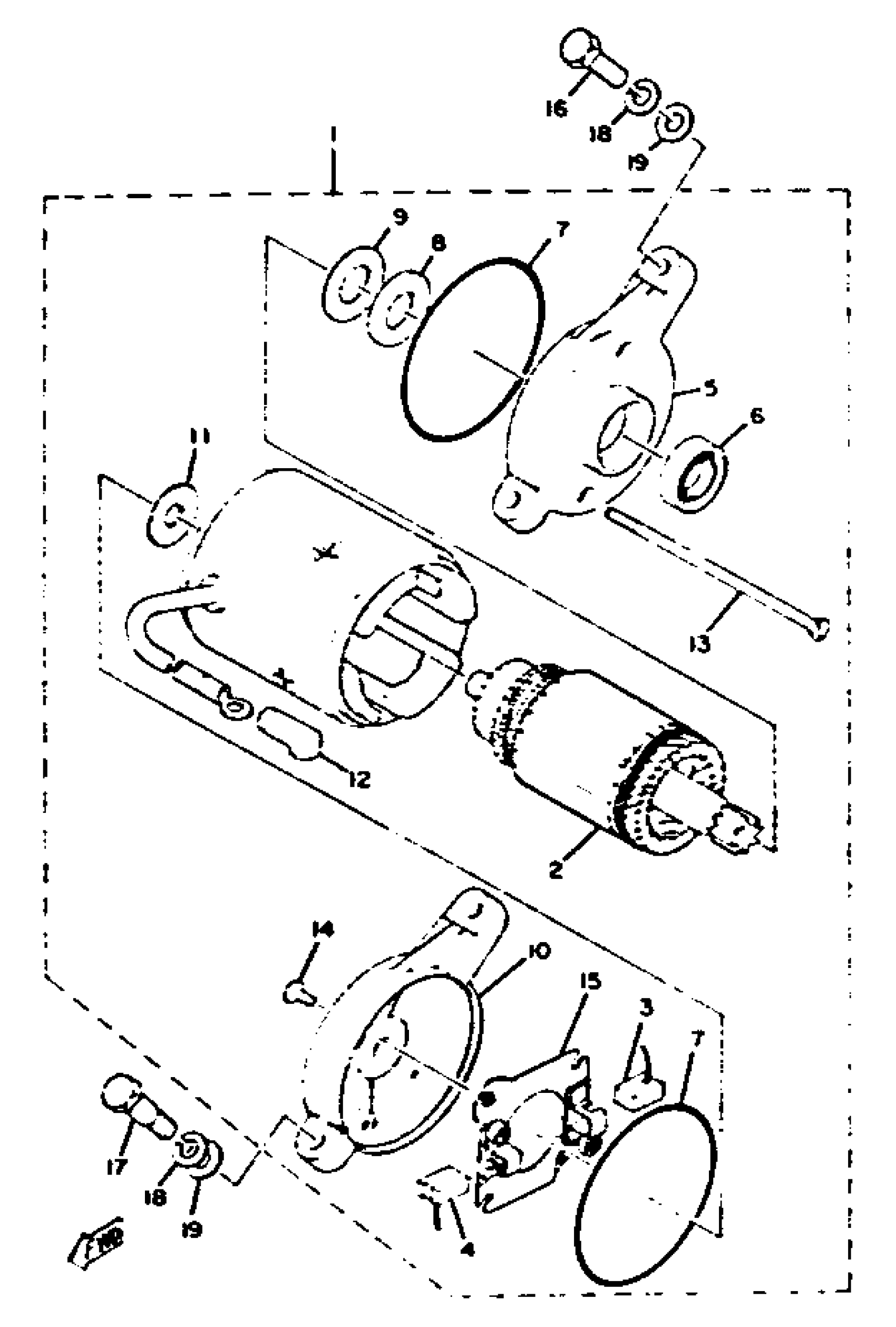

Yamaha XS650H (XS650) 1981 STARTER MOTOR Diagram

#

Description

Price

1

STARTING MOTOR ASSEMBLY

306-81800-12-00

Unavailable

2

ARMATURE ASSEMBLY

(306-81850-11-00)

Unavailable

3

BRUSH 1

306-81811-10-00

Unavailable

4

BRUSH 1

306-81811-10-00

Unavailable

5

WASHER, INSULATOR

(306-81825-10-00)

Unavailable

6

. OIL SEAL, S-TYPE

93101-17047-00

Unavailable

7

. PIECE, FRICTION

306-81827-10-00

Unavailable

8

WASHER, SPECIAL

(306-81893-10-00)

Unavailable

9

. SHIM, WASHER

306-81828-10-00

Unavailable

10

BOLT

(306-81826-10-00)

Unavailable

11

GROMMET

(306-81829-10-00)

Unavailable

12

. CAP

306-81862-10-00

Unavailable

13

. STAY, STARTING MTR

306-81823-10-00

Unavailable

14

SCREW, FLAT

98707-04010-00

$8.49

15

. BRUSH HOLDER ASSEMBLY

306-81840-10-00

Unavailable

16

BOLT

(90109-08393-00)

Unavailable

17

BOLT

97013-08035-00

Unavailable

18

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

19

WASHER, PLAIN

92990-08200-00

Unavailable
