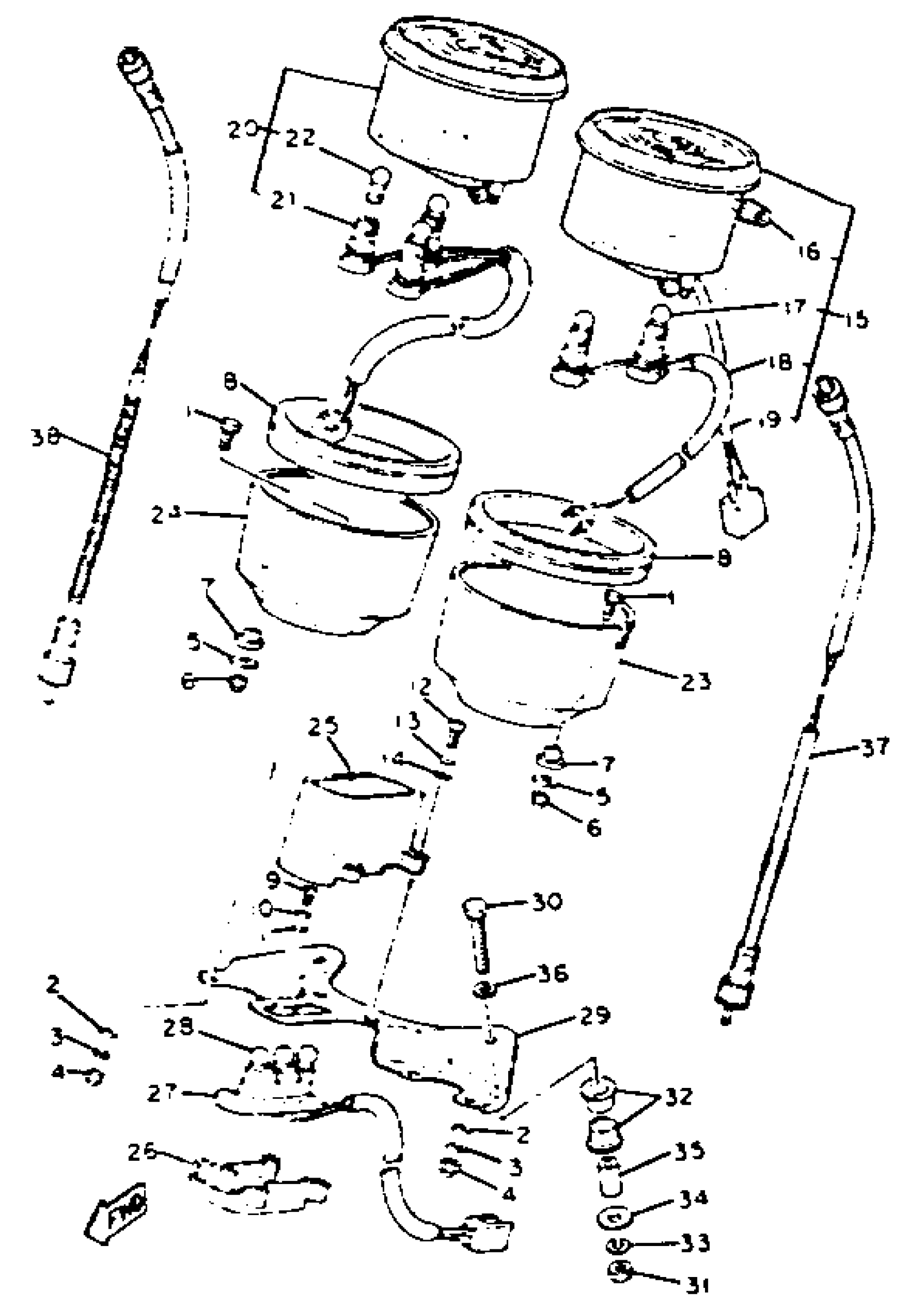

Yamaha XS650H (XS650) 1981 SPEEDOMETER TACHOMETER Diagram

#

Description
Price

1

BOLT

584-83546-00-00

$5.49

2

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

3

WASHER, SPRING

92995-06100-00

Unavailable

4

NUT (J17)

95380-06800-00

$8.49

5

WASHER, PLATE (8J0)

90201-05725-00

Unavailable

6

NUT (CROWN)

95303-05800-00

Unavailable

7

DAMPER, METER COVER FITTING

584-83523-00-00

Unavailable

8

DAMPER

3H3-83513-00-00

$44.99

9

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

10

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

11

WASHER, PLAIN (646)

92990-04600-00

$5.99

12

SCREW, PAN HEAD

98517-04012-00

$3.88

13

WASHER(6TA)

92907-04100-00

$8.49

14

WASHER(JF2)

92907-04600-00

$1.71

15

SPEEDOMETER ASSY

5H1-83570-A0-00

Unavailable

16

KNOB, TRIP METER

4SV-83578-00-00

Unavailable

17

BULB, MTR.12V3.4W

4G1-84744-00-XX

Unavailable

18

. SOCKET CORD ASSY

10M-83520-20-00

Unavailable

19

. SENDER

2H7-83556-00-00

Unavailable

20

TACHOMETER ASSEMBLY

3X4-83540-00-00

Unavailable

21

SOCKET CORD ASSEMBLY

(10M-83509-10-00)

Unavailable

22

BULB, MTR.12V3.4W

4G1-84744-00-XX

Unavailable

23

COVER, SPEEDOMETER

584-83507-00-00

Unavailable

24

COVER, TACHOMETER

584-83508-00-00

Unavailable

25

PILOT BOX, UPPER

3G1-83568-A0-00

Unavailable

26

PILOT BOX, LOWER

2G2-83569-A0-00

Unavailable

27

SOCKET CORD ASSEMBLY

3G1-83509-00-00

Unavailable

28

BULB, MTR.12V3.4W

4G1-84744-00-XX

Unavailable

29

BRACKET, METER

2M0-83519-00-00

Unavailable

30

BOLT(8BC)

97017-06040-00

Unavailable

31

NUT, HEXAGON

95380-06600-00

Unavailable

32

DAMPER, METER BRACKET

584-83541-00-00

Unavailable

33

WASHER, SPRING

92995-06100-00

Unavailable

34

WASHER, PLATE

90201-06380-00

Unavailable

35

COLLAR (877)

90387-06249-00

Unavailable

36

WASHER(6TA)

92907-06600-00

Unavailable

37

SPEEDOMETER CABLE ASSY

16M-83550-01-00

Unavailable

38

TACHOMETER CABLE

447-83560-01-00

Unavailable
