1981 Yamaha XS650 (XS650H) Side Cover Tool Diagram

← All diagrams

Find the part on the Side Cover Tool diagram for your 1981 Yamaha XS650 (XS650H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

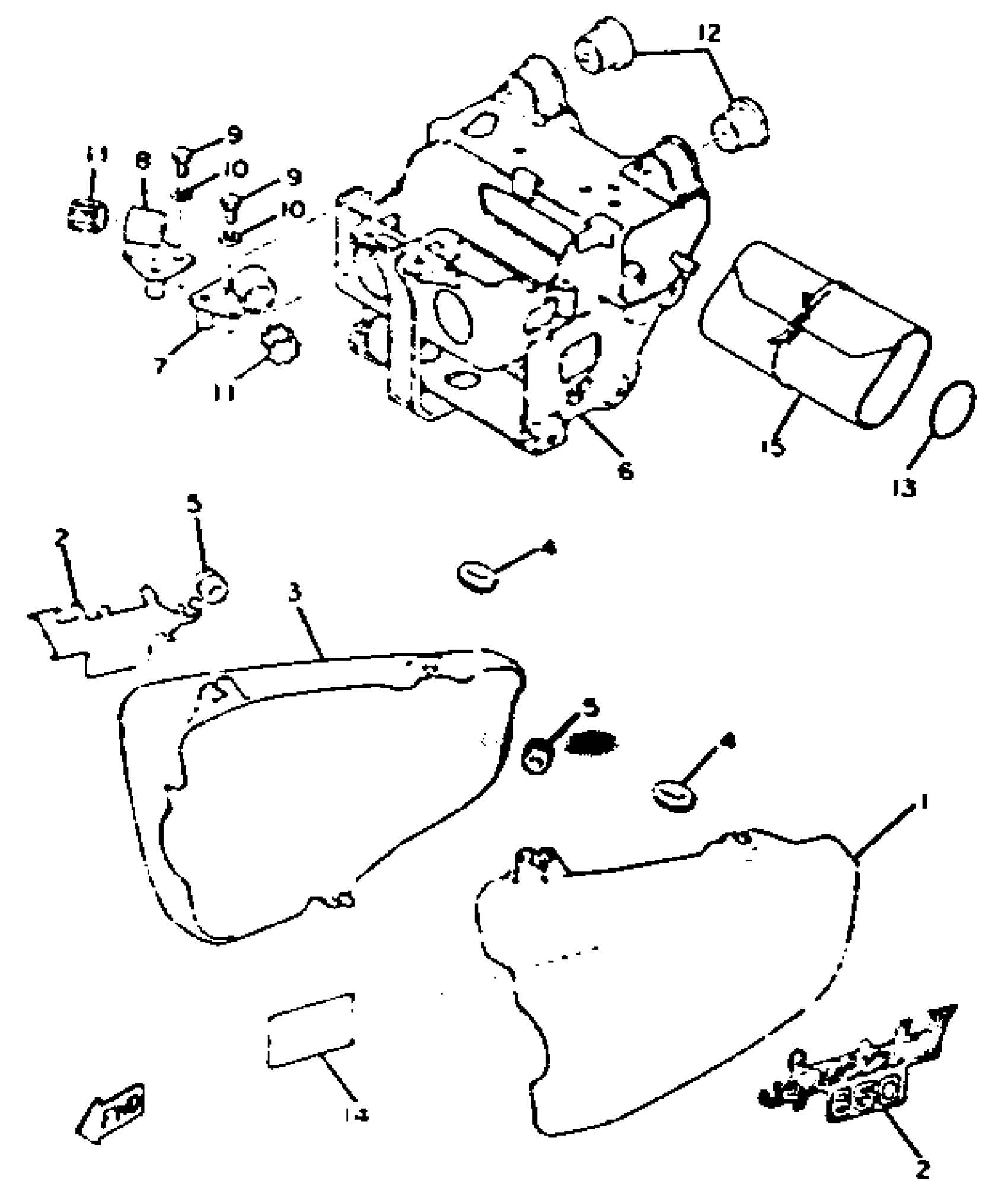

1981 Yamaha XS650 (XS650H) Side Cover Tool Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, SIDE 1

4N9-21711-00-4E

1
Out of stock

1

COVER, SIDE 1

4N9-21711-00-7J

1
Out of stock

2

EMBLEM 1

3N0-21781-00-00

1
Out of stock

3

COVER, SIDE 2

(4N9-21721-00-4E)

1
Out of stock

3

COVER, SIDE 2

4N9-21721-00-7J

1
Out of stock

4

GROMMET(41Y)

90480-01401-00

1

$5.51

In stock

5

DAMPER, SIDE COVER (437)

90480-12053-00

1

$5.78

In stock

6

BOX, BATT.

(3G1-21170-01-33)

1
Out of stock

7

BRACKET, BATT BOX

447-21149-00-00

1
Out of stock

8

BRACKET, BATT BOX

447-21344-00-00

1
Out of stock

9

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

10

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

11

DAMPER, SIDE COVER

2J2-21729-00-00

1

$4.68

In stock

12

DAMPER

256-21747-00-00

1
Out of stock

13

O-RING

93210-40040-00

1
Out of stock

14

PLATE, SPEC

(4M4-21683-00-00)

1
Out of stock

15

TOOL KIT

3J3-W2810-00-00

1
Out of stock
