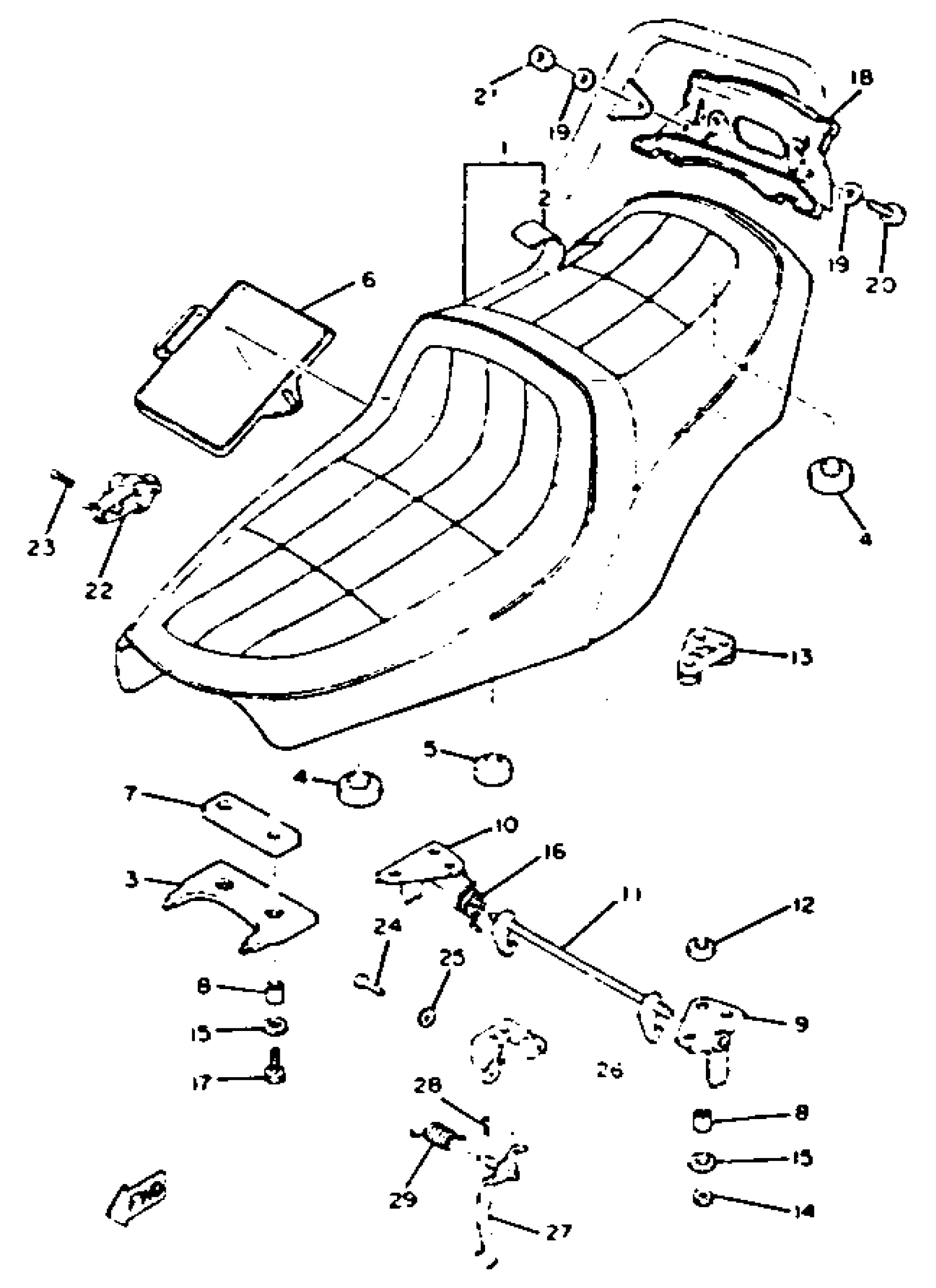

Find the part on the Seat diagram for your 1981 Yamaha XS650 (XS650H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha XS650 (XS650H) Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DOUBLE SEAT ASSEMBLY

4M4-W2472-00-00

1
Out of stock

2

COVER, DOUBLE SEAT

4M4-24731-00-00

1
Out of stock

3

BRACKET, SEAT

(3G1-24718-00-00)

1
Out of stock

4

PAD, SEAT

1L9-24741-00-00

1

$8.91

In stock

5

STOPPER, MAIN STAND

371-27114-00-00

1

$5.80

In stock

6

LID

2R6-28185-00-00

1
Out of stock

7

DAMPER, SEAT

3G1-24737-00-00

1
Out of stock

8

SPACER

90560-07007-00

1
Out of stock

9

BRACKET, SEAT

3G1-24748-01-00

1
Out of stock

10

BRACKET, SEAT

(3G1-24738-01-00)

1
Out of stock

11

HOOK, SEAT

3G1-24754-01-00

1
Out of stock

12

DAMPER, SEAT

3G1-24747-00-00

1
Out of stock

13

DAMPER, SEAT

3G1-24724-00-00

1
Out of stock

14

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

15

WASHER, PLATE

90201-06M02-00

1

$2.23

In stock

16

SPRING, TORSION

90508-18439-00

1
Out of stock

17

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

18

COVER, TAIL

3G1-24756-00-00

1
Out of stock

19

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

20

BOLT, HEXAGON

97017-08025-00

—

$7.46

In stock

21

NUT(6L2)

95333-08600-00

—

$3.20

In stock

22

SEAT LOCK ASSEMBLY

4M4-24705-00-00

1
Out of stock

23

SCREW (4G1)

90149-06154-00

—

$6.91

In stock

24

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

25

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

26

BRACKET, SEAT LEVER

3G1-24775-00-00

1
Out of stock

27

LEVER, SEAT

3G1-24776-00-00

1
Out of stock

28

PIN, COTTER

91490-20025-00

—

$1.31

In stock

29

SPRING, TORSION

90508-20413-00

1
Out of stock
