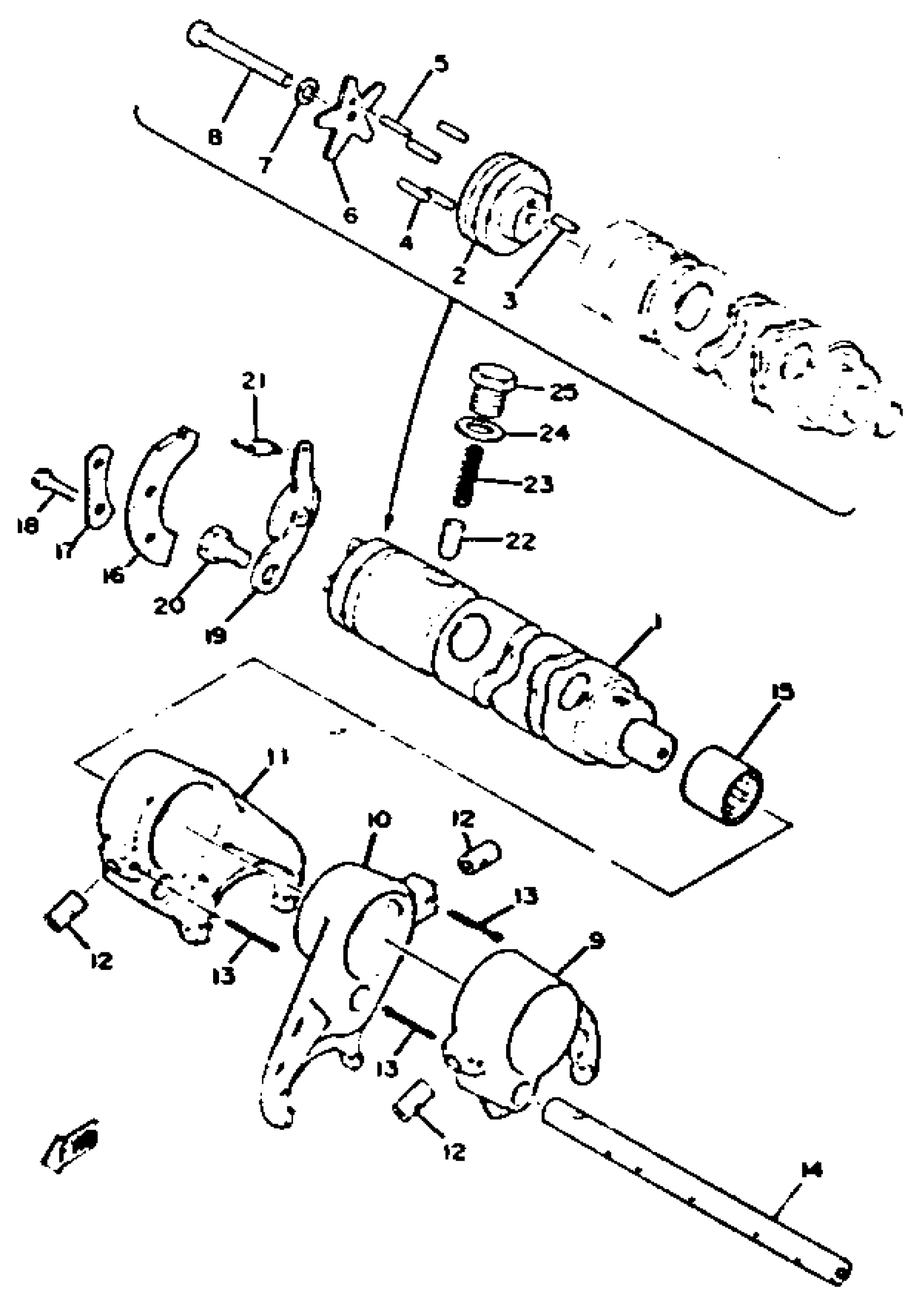

Yamaha XS650H (XS650) 1981 SHIFT CAM FORK Diagram

#

Description
Price

1

SHIFT CAM ASSEMBLY

306-18540-00-00

Unavailable

2

. CAM, SHIFT 2

(306-18546-00-00)

Unavailable

3

PIN,DOWEL (603)

93604-10011-00

$8.49

4

PIN,DOWEL (137)

93604-14012-00

$1.81

5

PIN, DOWEL

93603-14026-00

$8.49

6

PLATE, SIDE 1

(168-18561-00-00)

Unavailable

7

WASHER, TOOTH

92990-05300-00

Unavailable

8

SCREW, PAN HEAD

98580-05545-00

$7.49

9

FORK, SHIFT 1

256-18511-00-00

Unavailable

10

FORK, SHIFT 2

256-18512-00-00

Unavailable

11

FORK, SHIFT 3

256-18513-00-00

Unavailable

12

PIN, SPEC''L SHAPE

90249-08122-00

Unavailable

13

PIN, COTTER(6L5)

91490-25030-00

$3.77

14

BAR, SHIF FRK GDE 1

256-18531-00-00

Unavailable

15

BEARING, CYLINDER.#20

93320-31501-00

Unavailable

16

PLATE, STOPPER 2

256-18562-00-00

Unavailable

17

PLATE, LOCK SCREW

256-18565-00-00

Unavailable

18

BOLT

90101-06091-00

Unavailable

19

STOPPER LEVER ASSEMBLY

341-18140-00-00

Unavailable

20

BOLT

90109-06181-00

Unavailable

21

SPRING, TENSION

90506-10022-00

Unavailable

22

STOPPER, CAM

137-18547-00-00

Unavailable

23

SPRING, COMPRESSION

90501-10068-00

Unavailable

24

GASKET

90430-16047-00

Unavailable

25

BOLT

90109-16392-00

Unavailable
