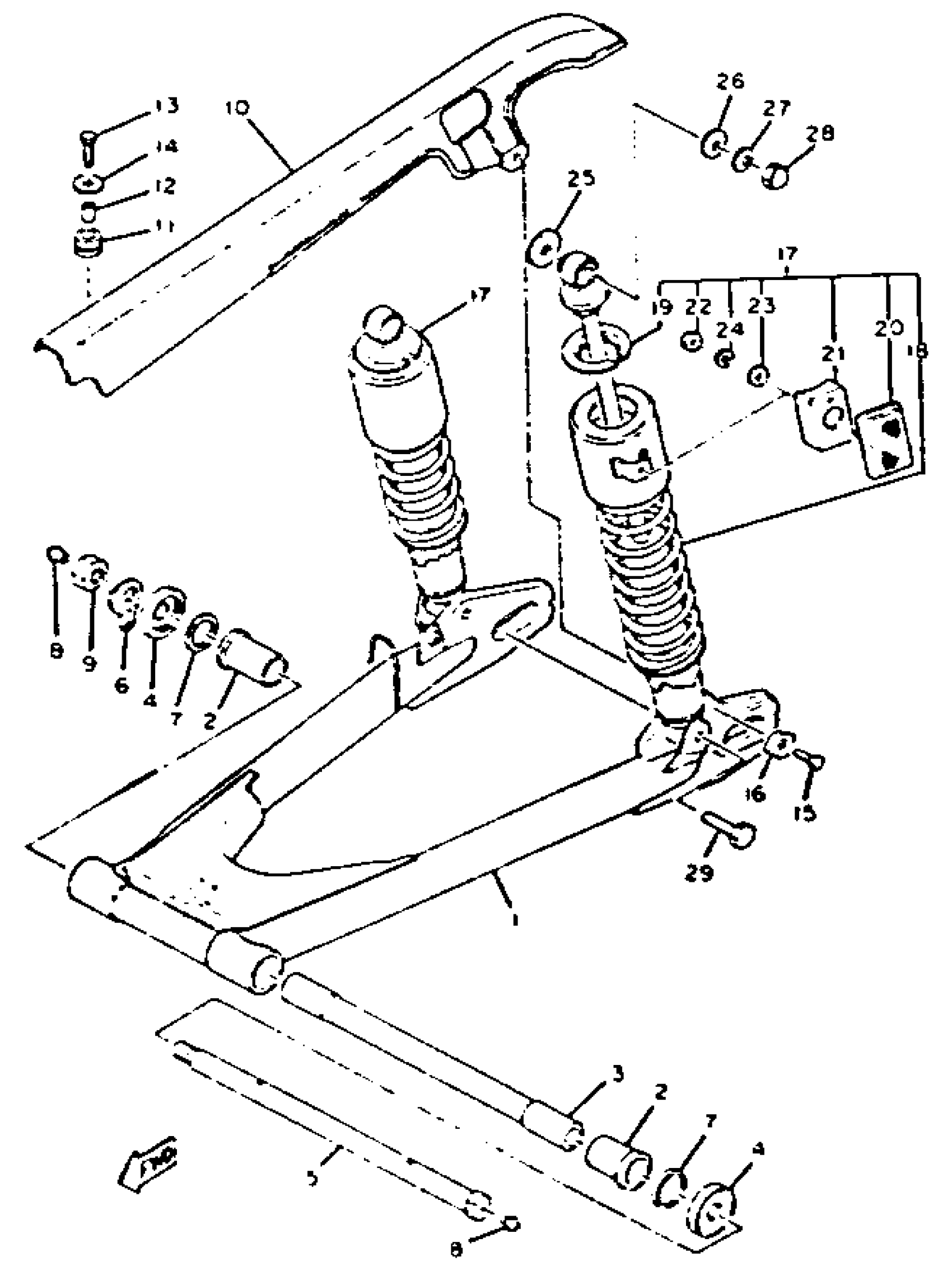

Yamaha XS650H (XS650) 1981 REAR ARM SUSPENSION Diagram

#

Description
Price

1

REAR ARM

(2M0-22110-10-98)

Unavailable

2

BUSH (5A9)

90386-22102-00

$40.99

3

BUSH

341-22184-00-00

Unavailable

4

COVER, THRUST

447-22128-00-00

$24.99

5

SHAFT, PIVOT

447-22141-00-00

Unavailable

6

WASHER, LOCK

90215-14055-00

Unavailable

7

SHIM,REAR ARM

240-22127-00-00

$6.99

8

NIPPLE, GREASE

93700-06M03-00

Unavailable

9

NUT

90170-14800-00

$4.14

10

CASE, CHAIN

(2M0-22311-00-33)

Unavailable

11

GROMMET 839774310000

90480-14023-00

$7.49

12

COLLAR

90387-07020-00

$8.49

13

BOLT, HEXAGON

97017-06025-00

$4.24

14

WASHER, PLATE 1012832300

90201-06066-00

$9.49

15

BOLT, HEXAGON

97017-06020-00

$4.06

16

WASHER, LOCK

90215-07164-00

Unavailable

17

SHK/ABS ASSEMBLY, REAR

4M4-22210-00-00

Unavailable

17

SHK/ABS ASSEMBLY, REAR

(4M4-22210-10-00)

Unavailable

18

. SPRING

2M0-22212-00-00

Unavailable

18

SPRING

(2M0-22212-10-00)

Unavailable

19

. SEAT, SPRING UPPER

341-22213-20-00

Unavailable

20

REAR REFLECTOR ASSY

4KM-85130-00-00

Unavailable

21

. BASE, REFLECTOR REAR

3G1-85137-00-00

Unavailable

22

NUT, HEXAGON (663)

95380-05600-00

Unavailable

23

. WASHER, PLAIN

92990-05200-00

Unavailable

24

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

25

WASHER, PLATE (3J6)

90201-100A1-00

Unavailable

26

WASHER, PLATE (2J2)

90201-10696-00

Unavailable

27

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

28

NUT, CAP (371)

90176-10009-00

Unavailable

29

BOLT ROUND 214222410000

90106-10025-00

Unavailable
