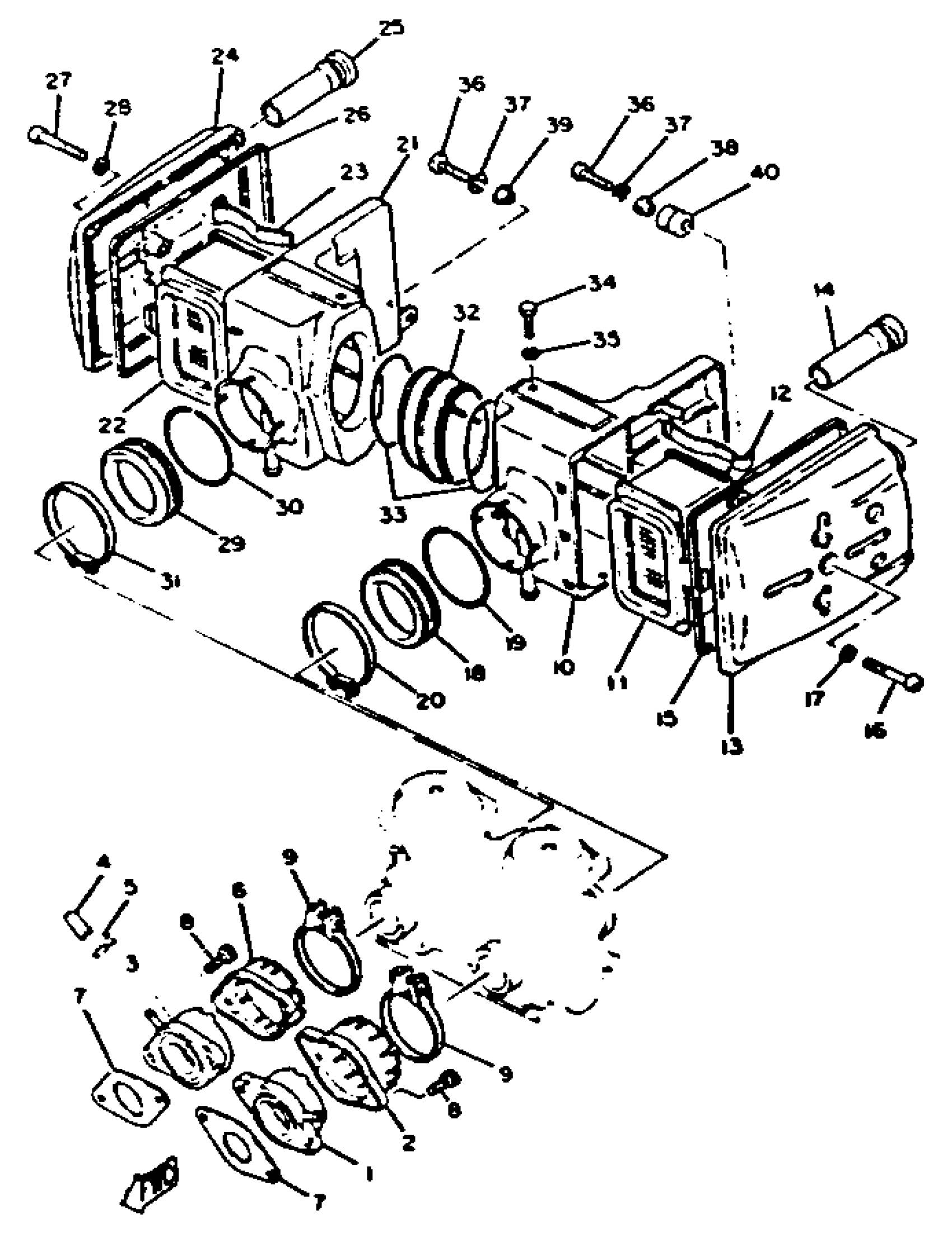

Yamaha XS650H (XS650) 1981 INTAKE Diagram
#
1
JOINT, CARBURETOR 1
3G1-13586-00-00
Unavailable
2
COVER, CARB.JOINT
3G1-13564-00-00
Unavailable
3
JOINT, CARBURETOR 2
3G1-13596-00-00
Unavailable
6
COVER, MANIFOLD 2
3G1-13594-00-00
Unavailable
8
BOLT,SOCKET
91317-06020-00
Unavailable
9
HOSE CLAMP ASSY
90450-53005-00
Unavailable
10
CASE, AIR CLEANER 1
3G1-14411-00-00
Unavailable
12
PLATE, ELEMENT FTNG
3G1-14468-00-00
Unavailable
13
CAP, CLEANER CASE 2
3G1-14422-00-00
Unavailable
14
SILENCER, INTAKE 1
3G1-14431-00-00
Unavailable
15
SEAL
5T8-14452-00-00
Unavailable
16
SCREW PAN HEAD
98580-06545-00
Unavailable
17
WASHER, PLAIN (646)
92990-06600-00
Unavailable
18
JOINT, AIR CLNR 1
3G1-14453-00-00
Unavailable
19
SPRING, TENSION (8R4)
90506-06261-00
Unavailable
20
HOSE CLAMP ASSY
90450-64004-00
Unavailable
21
CASE, AIR CLEANER 2
3G1-14421-00-00
Unavailable
23
PLATE, ELEMENT FTNG
3G1-14468-00-00
Unavailable
24
CAP, CLEANER CASE 2
3G1-14422-00-00
Unavailable
25
SILENCER, INTAKE 1
3G1-14431-00-00
Unavailable
26
SEAL
5T8-14452-00-00
Unavailable
27
SCREW PAN HEAD
98580-06545-00
Unavailable
28
WASHER, PLAIN (646)
92990-06600-00
Unavailable
29
JOINT, AIR CLNR 1
3G1-14453-00-00
Unavailable
30
SPRING, TENSION (8R4)
90506-06261-00
Unavailable
31
HOSE CLAMP ASSY
90450-64004-00
Unavailable
32
JOINT, AIR CLNR 2
3G1-14463-00-00
Unavailable
33
O-RING (583 OIL CLEANER)
93210-64297-00
Unavailable
34
BOLT, HEXAGON
97017-06025-00
Unavailable
35
WASHER, SPRING
92995-06100-00
Unavailable
36
SCREW, PAN HEAD(6E0)
97885-06030-00
Unavailable
37
WASHER, SPRING
92995-06100-00
Unavailable
38
COLLAR (3L1)
90387-07717-00
Unavailable
39
COLLAR
90387-07549-00
Unavailable
40
GROMMET (1E2)
90480-14182-00
Unavailable
