1981 Yamaha XS650 (XS650H) Handlebar Cable Diagram

← All diagrams

Find the part on the Handlebar Cable diagram for your 1981 Yamaha XS650 (XS650H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

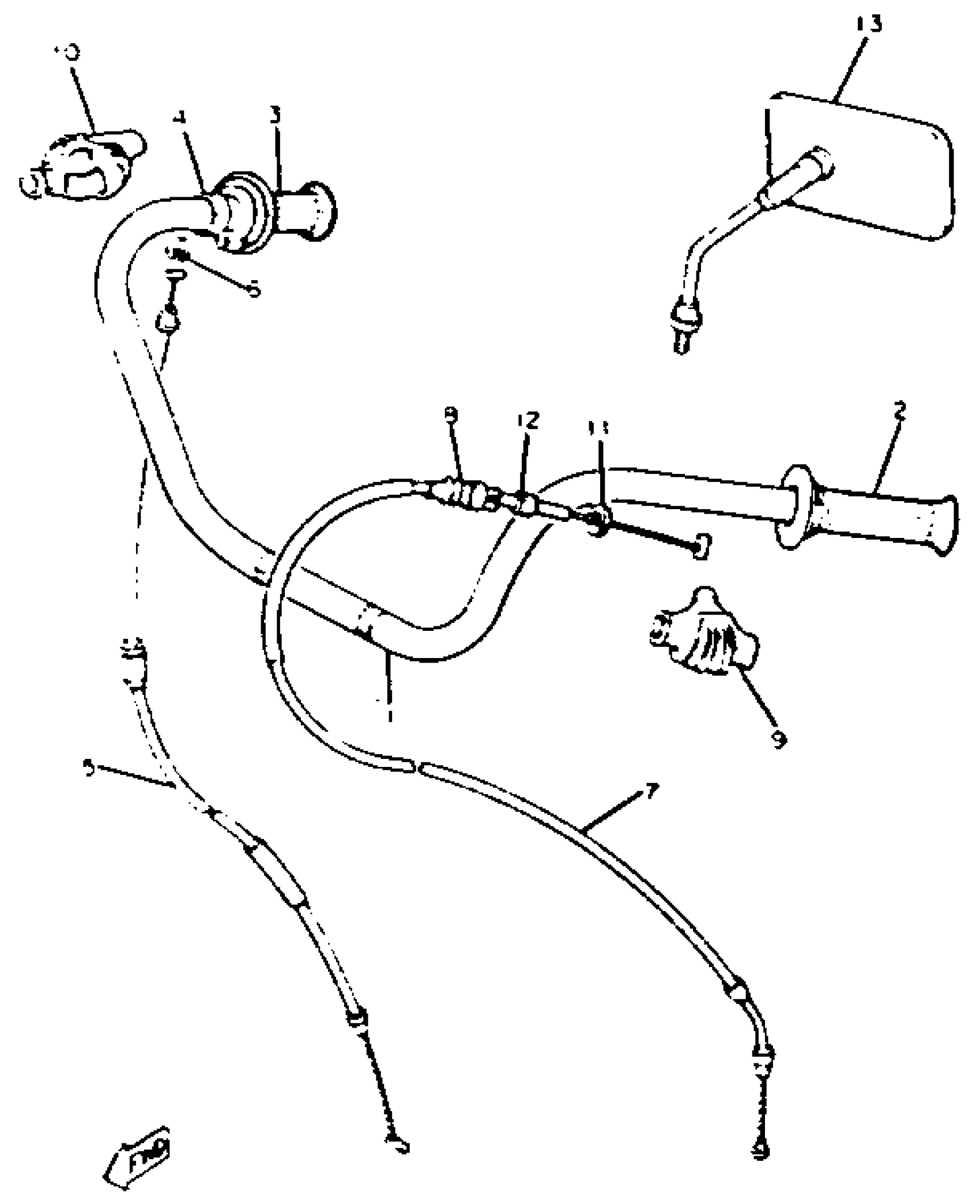

1981 Yamaha XS650 (XS650H) Handlebar Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

3H3-26111-00-00

1
Out of stock

2

GRIP LH

2H7-26241-01-00

1
Out of stock

3

GRIP ASSY

2H7-26240-01-00

1
Out of stock

4

COLLAR (2H7)

90387-22660-00

1

$7.75

In stock

5

CABLE, THROTTLE 1

2M0-26311-01-00

1
Out of stock

6

HOLDER,

584-26393-02-00

—

$6.02

In stock

7

WIRE, CLUTCH

3L1-26335-00-00

—

$56.78

In stock

8

BOOT, WIRE

1E6-26342-00-00

1

$26.82

In stock

9

COVER, LEVER

1E6-26372-00-00

1

$19.91

In stock

10

COVER, HANDLE LEVER (R.H)

1T5-26372-00-00

1

$17.86

In stock

11

NUT

90179-08030-00

1

$3.78

In stock

12

BOLT

90123-08002-00

1

$8.93

In stock

13

MIRROR ASSEMBLY RH

5A8-26290-00-00

1
Out of stock

13

MIRROR ASSEMBLY LH

5A8-26290-10-00

1
Out of stock
