1981 Yamaha XS650 (XS650H) Front Wheel Diagram

← All diagrams

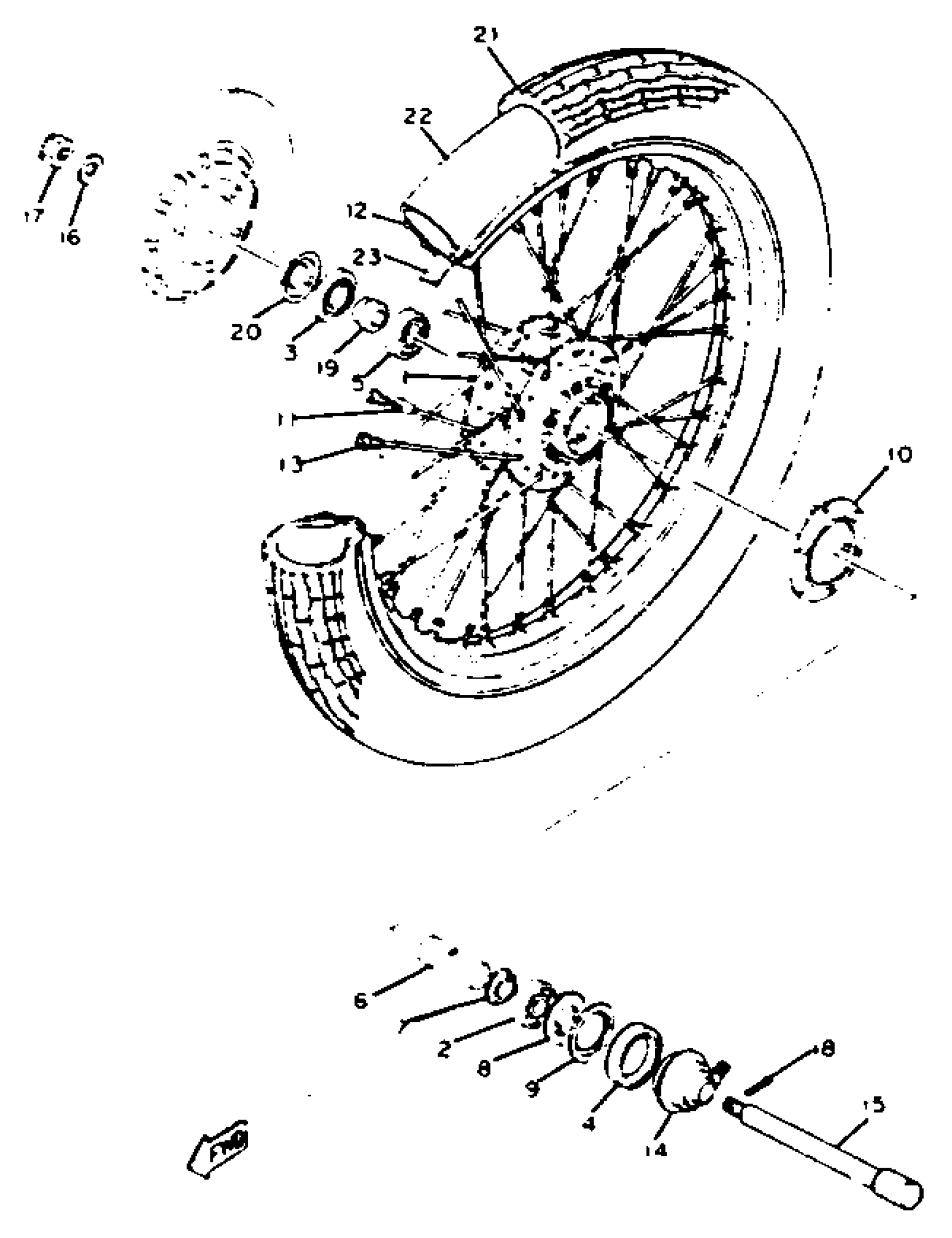

Find the part on the Front Wheel diagram for your 1981 Yamaha XS650 (XS650H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha XS650 (XS650H) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

341-25111-01-00

1
Out of stock

2

BEARING(4HM)

93306-30317-00

1

$33.54

In stock

3

OIL SEAL (45X56X6)

93105-45017-00

1
Out of stock

4

OIL SEAL (28X47X7-102)

93102-28022-00

1

$12.63

In stock

5

BEARING(4HM)

93306-30317-00

1

$33.54

In stock

6

SPACER 341251170100

90560-17126-00

1
Out of stock

7

FLANGE, SPACER

146-25315-00-00

1

$6.38

In stock

8

CLUTCH, METER (371,447)

341-25149-00-00

1
Out of stock

9

RETAINER, CLUTCH (371,447)

341-25846-00-00

1
Out of stock

10

COVER, HOUSING

1L9-25847-00-00

1
Out of stock

11

BALANCER, WHEEL

3HT-25398-00-00

1

$6.89

In stock

12

RIM 1.85X19

94418-19059-00

1
Out of stock

13

SPOKE SET, FRONT

3G0-25104-00-00

1
Out of stock

14

GEAR UNIT ASSY

4TR-25190-20-00

1

$110.32

In stock

15

AXLE, WHEEL

99999-04072-00

—
Out of stock

16

WASHER, PLAIN

92990-14200-00

—

$1.71

In stock

17

NUT, CASTLE(2UJ)

90171-14056-00

—

$10.57

In stock

18

PIN, COTTER

91490-30030-00

—

$7.15

In stock

19

COLLAR

90387-17433-00

1
Out of stock

20

COVER, HUB DUST

341-25118-00-00

1
Out of stock

21

350S19 Y990

94135-19391-00

1
Out of stock

22

TUBE

94235-19087-00

1
Out of stock

23

BAND, RIM

94327-19111-00

—

$12.51

In stock
