- XS650H (XS650) 1981
FRONT FORK

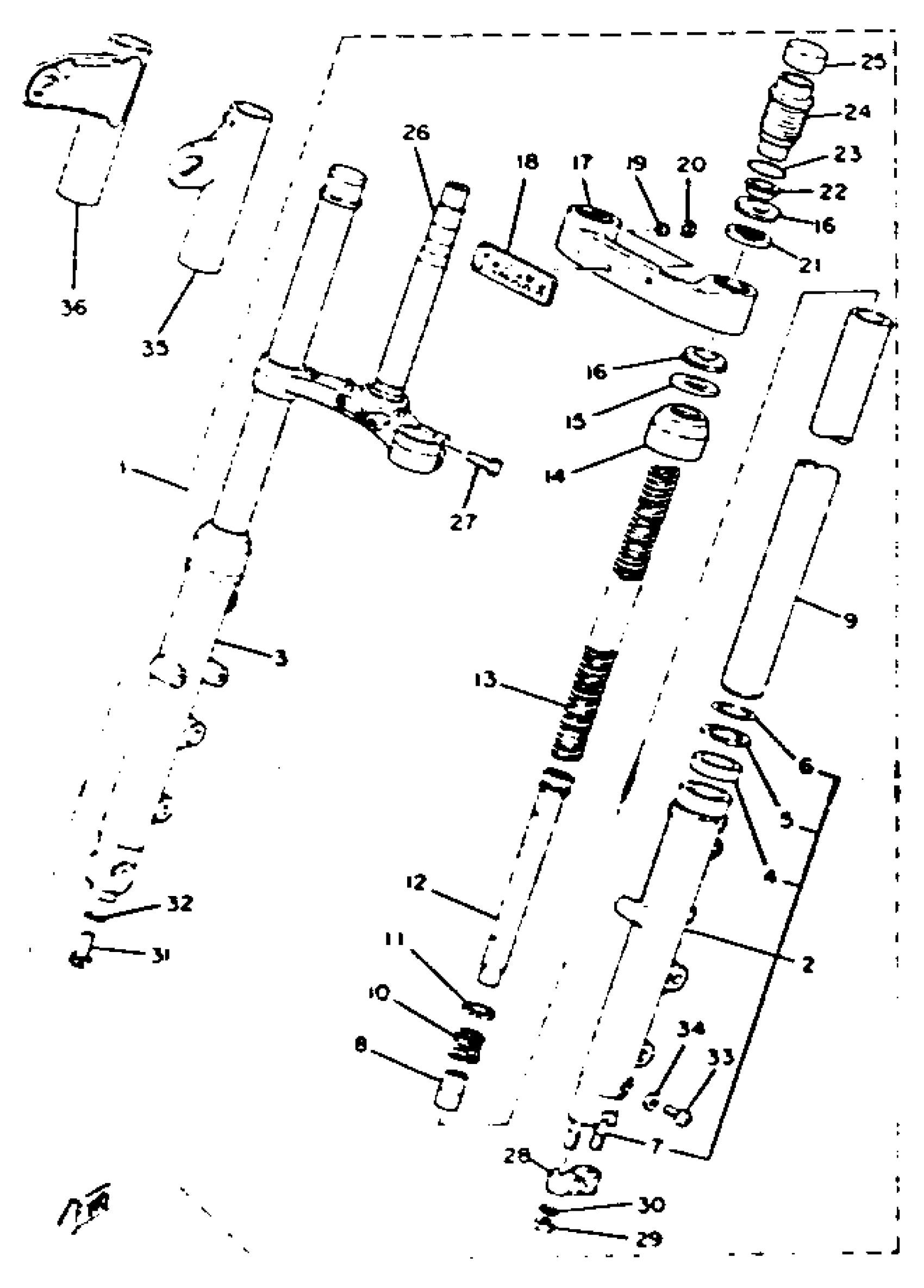

Yamaha XS650H (XS650) 1981 FRONT FORK Diagram
#
1
FRONT FORK ASSEMBLY
(3L1-23101-00-00)
Unavailable
2
. TUBE, OUTER 1
2F0-23126-00-00
Unavailable
3
. TUBE, OUTER 2
2F0-23136-00-00
Unavailable
10
SPRING, REBOUND
(2F0-23151-00-00)
Unavailable
12
. CYLINDER, FRTFRK
2F0-23170-00-00
Unavailable
13
. SPRING, FRONT FORK
2F0-23141-00-00
Unavailable
13
SPRING, FRONT FORK
(2F0-23141-10-00)
Unavailable
14
SEAL, DUST
1T3-23144-50-00
Unavailable
15
WASHER, OIL SEAL
(1T3-23146-50-00)
Unavailable
16
. GASKET
1T3-23163-51-00
Unavailable
17
. COVER, OUTER 1
4E4-23122-00-00
Unavailable
18
. EMBLEM
2M0-23395-00-00
Unavailable
19
WASHER PLATE 174283160000
90202-04003-00
Unavailable
20
NUT SPRING 116283170100
90183-04005-00
Unavailable
21
. GUIDE, COVER LOWER
1T3-23116-51-00
Unavailable
22
. WASHER, SPRING UPR
2F0-23149-00-00
Unavailable
23
RING, CAP BOLT
2F0-23114-00-00
Unavailable
24
. BOLT, CAP
2F0-23111-00-00
Unavailable
25
. CAP, FRONT FORK
2F0-23168-00-00
Unavailable
26
. UNDER BRACKET
1U3-23340-30-33
Unavailable
27
BOLT, AXLE HOLDER
18G-23128-00-00
Unavailable
28
HOLDER,AXLE
341-23167-50-00
Unavailable
29
NUT, SELF-LOCKING (3Y2)
90185-08089-00
Unavailable
30
.. WASHER, PLATE
92990-08600-00
Unavailable
31
BOLT, HEXAGON SOCKET HEAD
3D8-23181-00-00
Unavailable
32
GASKET
509-23158-L0-00
Unavailable
33
GASKET
509-23158-L0-00
Unavailable
33
SCREW, PAN HEAD (713)
98580-04008-00
Unavailable
34
GASKET, DRAIN PLUG
122-23129-00-00
Unavailable
35
COVER, UPPER 1
2M0-23121-00-93
Unavailable
36
COVER, UPPER 2
2M0-23131-00-93
Unavailable
