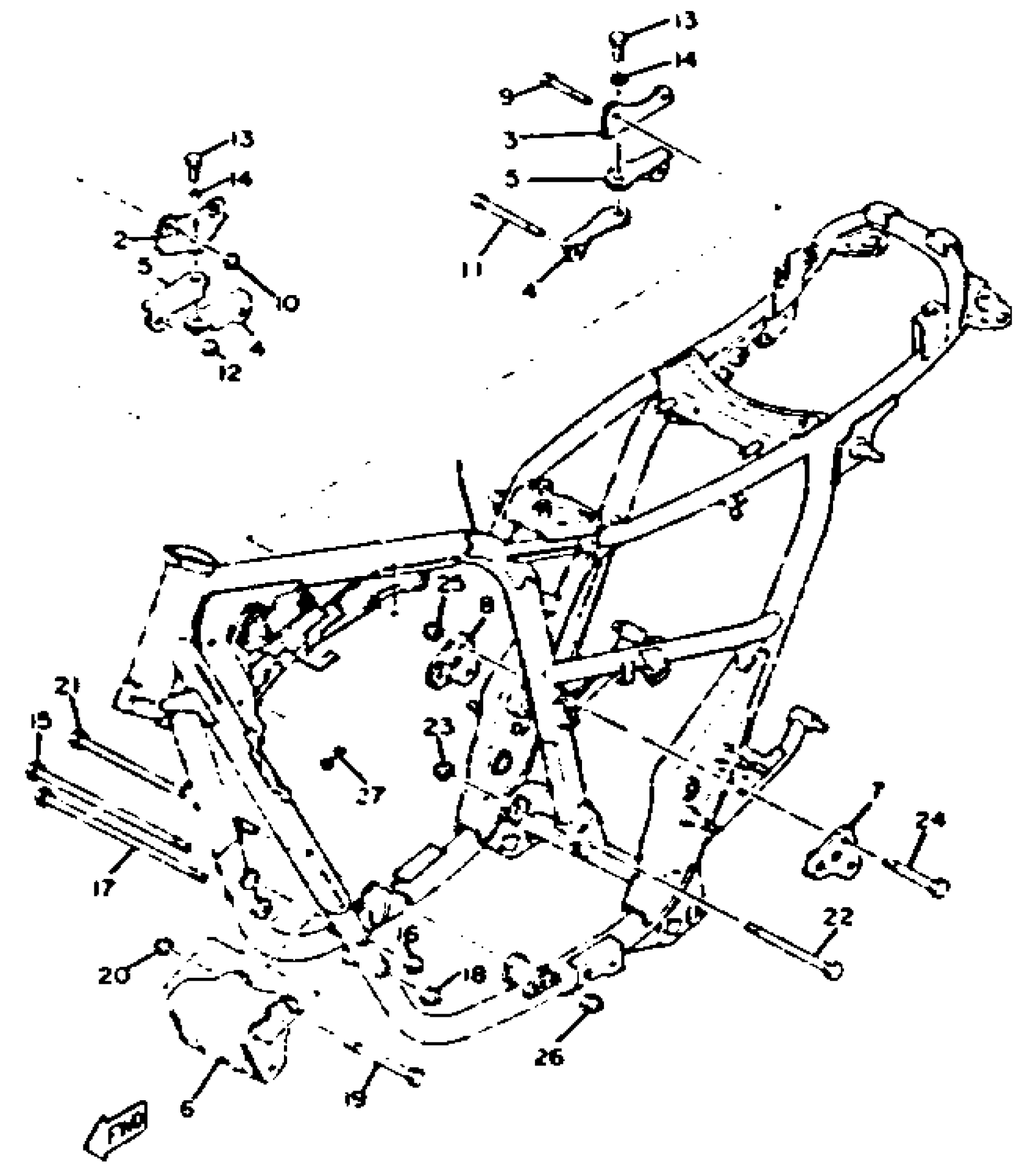

Yamaha XS650H (XS650) 1981 FRAME Diagram
#
Description
Price
1
FRAME
(4M4-21110-00-98)
Unavailable
2
STAY, ENGINE 1
447-21314-00-00
Unavailable
3
STAY, ENGINE 2
447-21315-00-00
Unavailable
4
STAY, ENGINE 3
256-21316-01-00
Unavailable
5
STAY, ENGINE 4
256-21317-01-00
Unavailable
6
STAY, ENGINE 5
447-21318-00-98
Unavailable
7
STAY, ENGINE 6
447-21319-00-00
Unavailable
8
STAY, ENGINE 7
447-21387-00-00
Unavailable
12
NUT, SELF-LOCKING
90185-08090-00
Unavailable
15
BOLT, WASHER BASED (3Y1)
90105-10139-00
Unavailable
16
NUT, SELFLOCKING (533 FRAME)
90185-10060-00
Unavailable
17
BOLT, FLANGE
90105-10N53-00
Unavailable
18
NUT, SELFLOCKING (533 FRAME)
90185-10060-00
Unavailable
19
BOLT, WASHER BASED(1RU)
90105-10747-00
Unavailable
20
NUT, SELFLOCKING (533 FRAME)
90185-10060-00
Unavailable
21
BOLT, DOME HEAD
90106-10029-00
Unavailable
22
BOLT(30W)
90109-101A0-00
Unavailable
23
NUT, SELFLOCKING (533 FRAME)
90185-10060-00
Unavailable
24
BOLT, FLANGE
(95826-10070-00)
Unavailable
25
NUT, SELF LOCKING (3G1)
90185-10091-00
Unavailable
26
NUT, SELFLOCKING (533 FRAME)
90185-10060-00
Unavailable
27
CLAMP
(90465-20138-00)
Unavailable
