Description

Price

1

DAMPER, FLASHER 1

256-83321-00-00

Unavailable

2

COLLAR, FLASHER 1

366-83316-00-00

Unavailable

3

R FLSHR LITE ASSEMBLY

1E5-83330-20-93

Unavailable

4

LENS, FLASHER

341-83312-70-00

Unavailable

5

GASKET, FLASHER LENS

3Y6-83313-00-00

$7.99

6

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

7

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

8

. BOLT, STUD

341-83367-09-00

Unavailable

9

WIRE, EARTH (GROUND)

256-84313-01-00

Unavailable

10

NUT(6L2)

95333-08600-00

$2.49

11

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

12

R FLSHR LITE ASSEMBLY

1E5-83330-20-93

Unavailable

13

LENS, FLASHER

341-83312-70-00

Unavailable

14

GASKET, FLASHER LENS

3Y6-83313-00-00

$7.99

15

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

16

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

17

. BOLT, STUD

360-83367-09-00

Unavailable

18

DAMPER, FLASHER 1

256-83321-00-00

Unavailable

19

COLLAR, FLASHER 1

366-83316-00-00

Unavailable

20

WASHER, SPEC''L SHAP

90209-08028-00

Unavailable

21

CORD

447-83336-01-00

Unavailable

22

WASHER

90209-08008-00

Unavailable

23

NUT(6L2)

95333-08600-00

$2.49

24

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

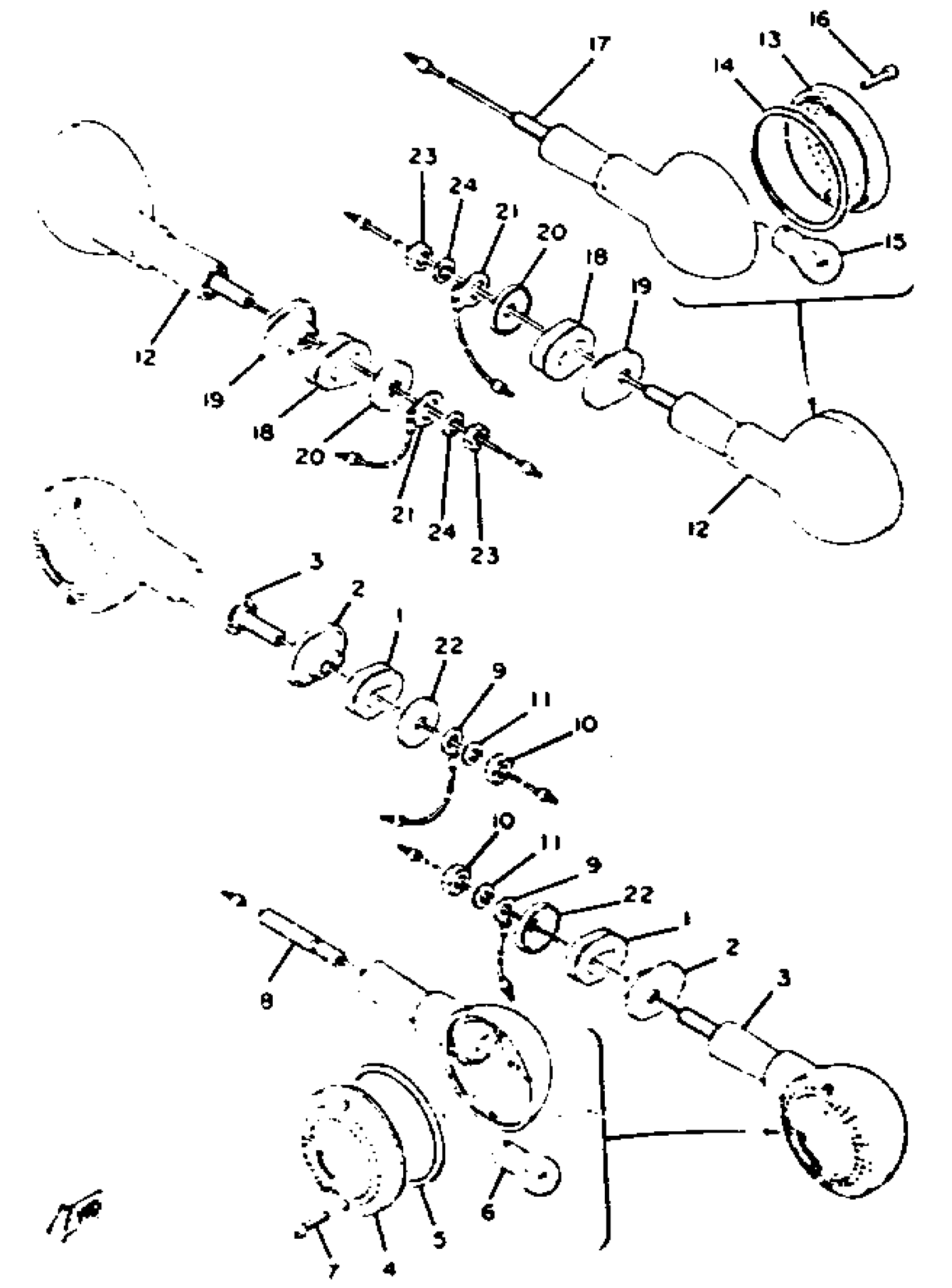

Yamaha XS650H (XS650) 1981 FLASHER LIGHT Diagram

DAMPER, FLASHER 1

COLLAR, FLASHER 1

R FLSHR LITE ASSEMBLY

LENS, FLASHER

GASKET, FLASHER LENS

. BULB (12V-32CP)

SCREW, COUNTERSUNK

. BOLT, STUD

WIRE, EARTH (GROUND)

NUT(6L2)

YBS67-8 WASHER, SPRING

R FLSHR LITE ASSEMBLY

LENS, FLASHER

GASKET, FLASHER LENS

. BULB (12V-32CP)

SCREW, COUNTERSUNK

. BOLT, STUD

DAMPER, FLASHER 1

COLLAR, FLASHER 1

WASHER, SPEC''L SHAP

CORD

WASHER

NUT(6L2)

YBS67-8 WASHER, SPRING
