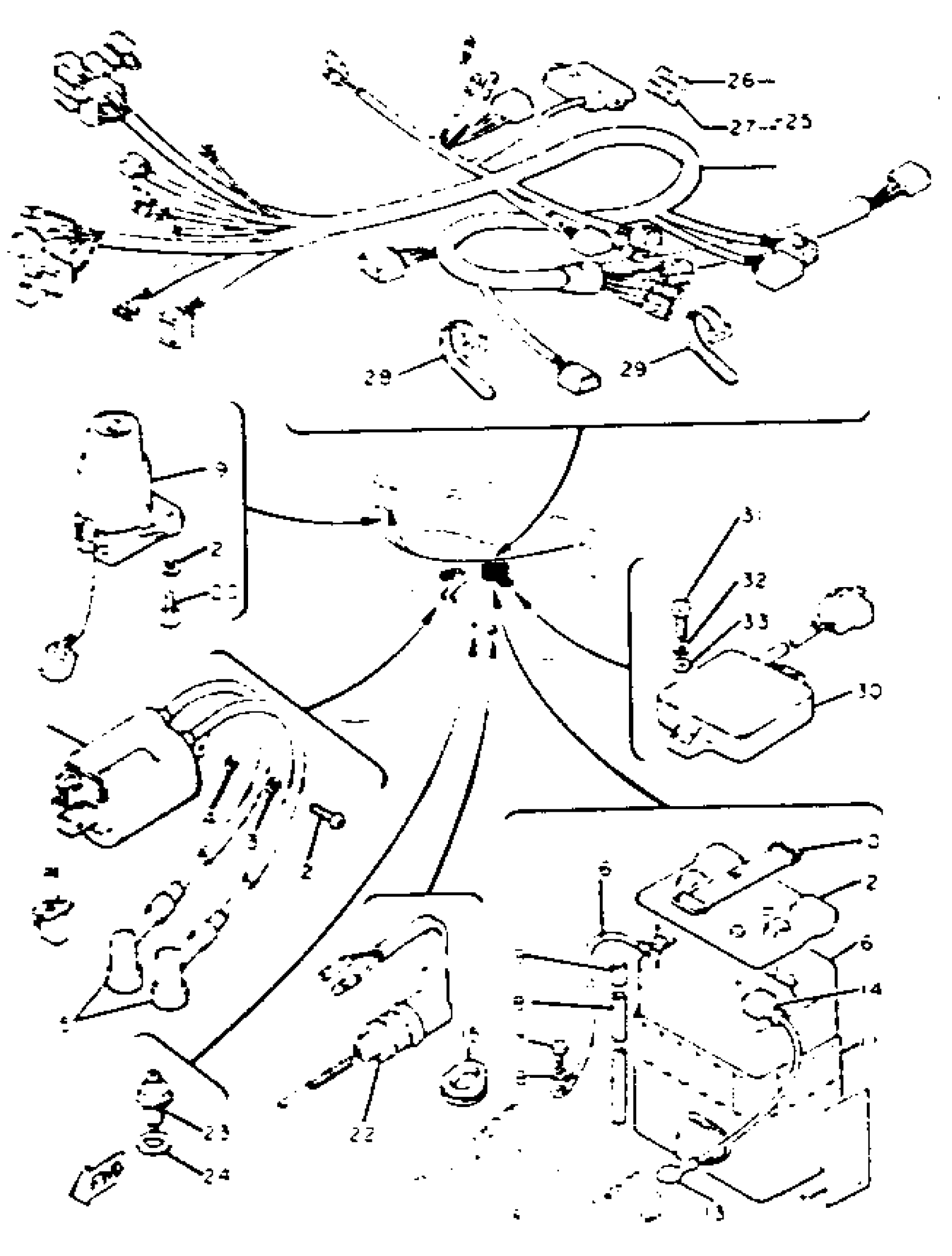

Yamaha XS650H (XS650) 1981 ELECTRICAL 1 Diagram

#

Description
Price

1

IGNITION COIL ASSEMBLY

4M4-82310-60-00

Unavailable

2

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

3

WASHER, SPRING

92995-06100-00

Unavailable

4

WASHER, PLAIN (646)

92990-06600-00

$2.80

5

PLUG CAP ASSY

4BP-82370-01-00

$35.99

5

PLUG CAP ASSY

7KA-82370-00-00

$67.99

6

YB14LA2 YUASA BATTERY

YB1-4LA20-00-00

Unavailable

7

LABEL, BATTERY

40A-82141-G0-00

Unavailable

8

HOSE (L1500)

90445-084J0-00

$18.99

9

BUSH, SPEC''L NYLON

(90386-07043-00)

Unavailable

10

BAND,BATTERY

7H3-82131-00-00

$17.49

11

SEAT, BATTERY

447-82122-00-00

Unavailable

12

COVER, BATTERY

2M0-82129-00-00

Unavailable

13

WIRE, PLUS LEAD

447-82115-01-00

Unavailable

14

COVER, LEAD WIRE

447-82119-00-00

Unavailable

15

BRACKET, BATTERY

(447-82128-00-00)

Unavailable

16

WIRE,MINUS LEAD

2H7-82116-00-00

Unavailable

17

BOLT (661)

97013-06012-00

Unavailable

18

WASHER, SPRING

92995-06100-00

Unavailable

19

MAIN SWITCH STEERING LOCK

3JV-82501-00-00

Unavailable

20

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

21

WASHER, PLAIN (646)

92990-06600-00

$2.80

22

STOP SWITCH ASSEMBLY

533-82530-02-00

Unavailable

23

NEUTRAL SWITCH ASSY

136-82540-03-00

Unavailable

24

WASHER, PLATE

90201-12790-00

Unavailable

25

WIRE HARNESS ASSEMBLY

4M4-82590-50-00

Unavailable

26

FUSE

1A0-82151-00-00

Unavailable

27

FUSE

1A0-82161-00-00

Unavailable

28

BAND, SWITCH CORD

25G-83936-01-00

Unavailable

29

BAND, SWITCH CORD

437-83936-11-00

Unavailable

30

IGNITOR UNIT ASSEMBLY 1

4M4-82305-10-00

Unavailable

31

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

32

WASHER, SPRING

92995-06100-00

Unavailable

33

WASHER, PLATE

90201-06380-00

Unavailable
