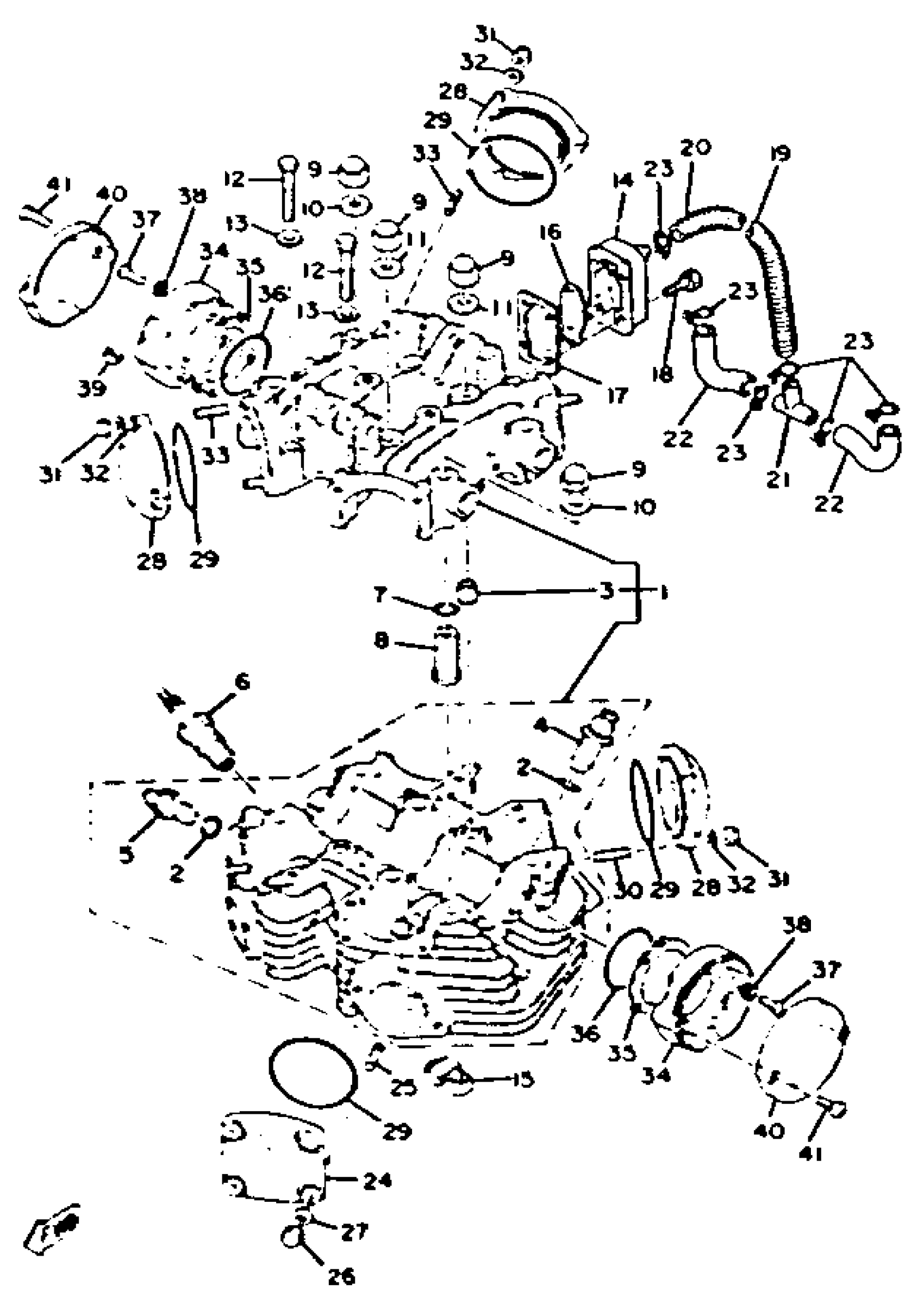

Yamaha XS650H (XS650) 1981 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSEMBLY

(4M4-11101-00-00)

Unavailable

2

O-RING (256)

93210-15151-00

Unavailable

3

PIN, DOWEL

99530-14016-00

$3.80

4

.. GDE, INTK VLV 1 O/S

341-11133-11-00

Unavailable

5

. GDE, EXST VLV 1 O/S

341-11134-11-00

Unavailable

6

BPR7ES NGK - 4/PACK

BPR-7ES00-40-00

Unavailable

7

O-RING (256)

93210-12152-00

$7.49

8

SLEEVE, CYLINDER HD COVR

256-11199-00-00

Unavailable

9

NUT, CROWN(2GG)

90176-10075-00

$8.49

10

GASKT KIT TE XS650

(3G1-W0001-90-00)

Unavailable

10

WASHER SEAL 256111730200

90210-10004-00

$4.77

11

WASHER PLATE 256111740000

90201-10131-00

$9.49

12

BOLT (663)

97013-08060-00

$4.41

13

WASHER, PLAIN

92990-08200-00

Unavailable

14

COVER, BREATHER

3G1-11168-01-00

Unavailable

15

PLATE, BREATHER 3

(447-11135-00-00)

Unavailable

16

PLATE, BREATHER

3G1-11165-00-00

Unavailable

17

GASKET,BRTHR COVER

256-11169-11-00

Unavailable

18

BOLT,SOCKET

91317-06025-00

Unavailable

19

HOSE

90445-16416-00

Unavailable

20

SPRING, COMPRESSION

90501-08545-00

Unavailable

21

WAY, 3

90413-13006-00

Unavailable

22

PIPE, BREATHER 1

3G1-11166-00-00

Unavailable

23

CLIP (371)

90467-14015-00

Unavailable

24

. CVR, CYLINDER HD SIDE 1

447-11185-00-00

Unavailable

25

BOLT, STUD

90116-08150-00

Unavailable

26

NUT, CROWN

95303-08800-00

Unavailable

27

.. WASHER, PLATE

92990-08600-00

Unavailable

28

COVER, CYLINDER.HEAD 2

447-11186-00-00

Unavailable

29

O-RING (4M4)

93210-62451-00

Unavailable

30

BOLT, STUD

90116-06017-00

Unavailable

31

GASKT KIT TE XS650

(3G1-W0001-90-00)

Unavailable

31

NUT (J17)

95380-06800-00

Unavailable

32

WASHER, PLAIN (646)

92990-06600-00

Unavailable

33

BOLT STUD 306111790000

90116-06016-00

Unavailable

34

COVER, BREAKER 1

256-11157-03-00

Unavailable

35

GASKET, BREAKER COVER

256-11146-11-00

Unavailable

36

O-RING (256)

93210-45150-00

Unavailable

37

SCREW, FLAT

98707-06014-00

Unavailable

38

WASHER

92990-06500-00

Unavailable

39

PLUG, SPECL SHAPE

90338-12044-00

Unavailable

40

COVER, BREAKER 2

256-11158-01-00

Unavailable

41

SCREW, BIND (J17)

98980-06020-00

Unavailable
