1980 Yamaha XS650 (XS650G) Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 1980 Yamaha XS650 (XS650G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

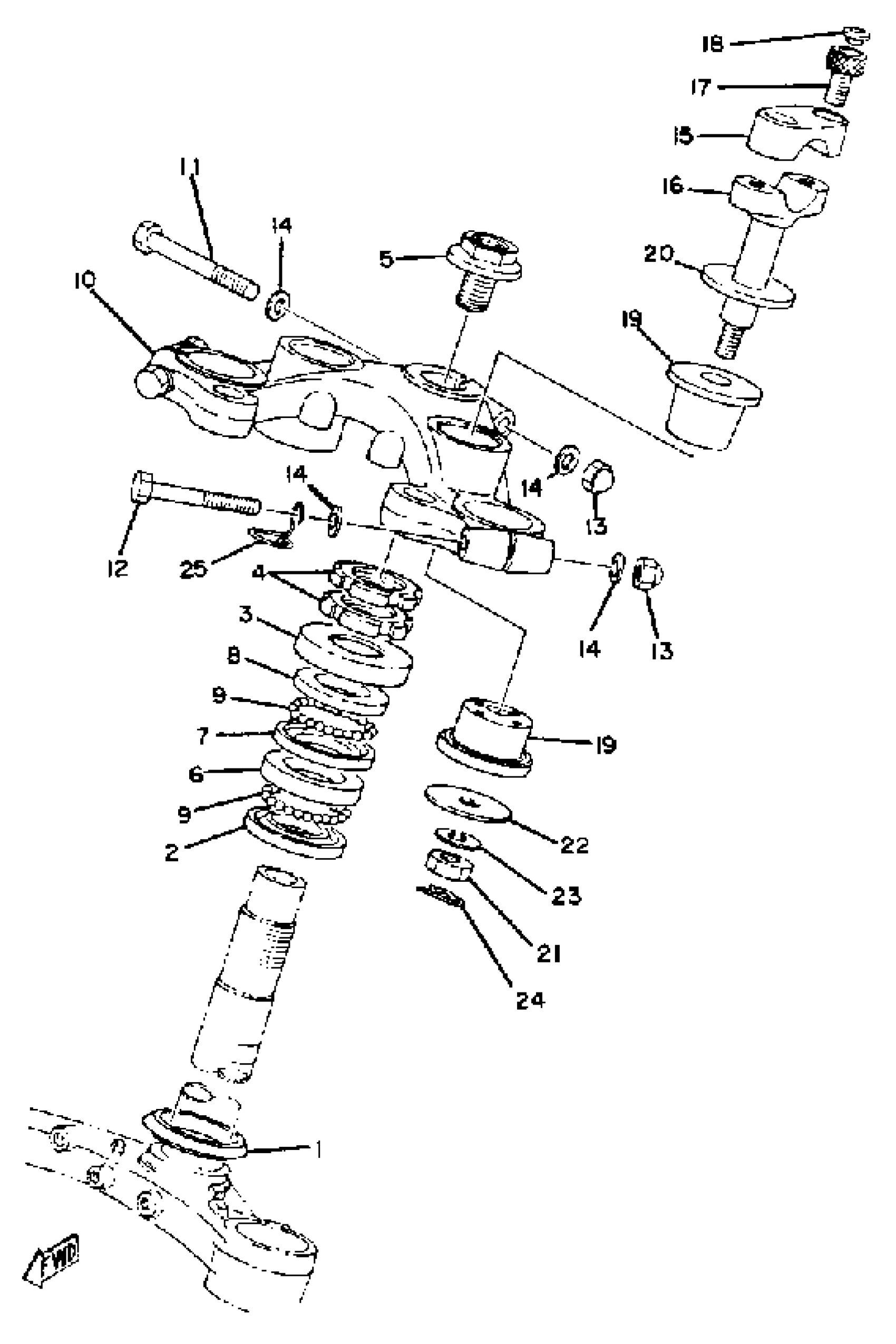

1980 Yamaha XS650 (XS650G) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEAL, DUST

164-23462-00-00

1
Out of stock

2

RACE, BALL 1

256-23411-00-00

1
Out of stock

3

COVER, BALL RACE

136-23415-00-00

1
Out of stock

4

NUT

90179-25004-00

1
Out of stock

5

BOLT (2A2)

90105-14102-00

1
Out of stock

6

RACE, BALL2

256-23412-00-00

—
Out of stock

7

RACE, BALL3

256-23413-00-00

—
Out of stock

8

RACE, BALL4

256-23414-00-00

—
Out of stock

9

BALL

93501-04011-00

1
Out of stock

10

CROWN, HANDLE

2M0-23435-00-98

1
Out of stock

11

BOLT

97021-08065-00

1
Out of stock

12

BOLT, HEXAGON

97013-08055-00

1
Out of stock

13

NUT, CROWN

95303-08800-00

1
Out of stock

14

.. WASHER, PLATE

92990-08600-00

1
Out of stock

15

HOLDER, HANDLE UPR

360-23441-01-98

1
Out of stock

16

HOLDER, HANDLE LOWER

4AA-23442-01-98

1
Out of stock

17

BOLT, SOCKET

91317-08025-00

—
Out of stock

18

CAP, BOLT (371,447)

341-23469-00-00

—
Out of stock

19

BUSHING, RUBBER

1T4-23434-00-00

—
Out of stock

20

WASHER (1J7)

90209-12151-00

—
Out of stock

21

NUT (682)

95380-10700-00

1
Out of stock

22

WASHER PLATE 256234440000

90201-10149-00

—
Out of stock

23

YBS67-10 WASHER, SPRING

92990-10100-00

—
Out of stock

24

CLIP 136253750000

90468-12006-00

—
Out of stock

25

HOLDER, CABLE

4H7-23317-00-00

1
Out of stock
