1980 Yamaha XS650 (XS650G) Front Fork Diagram

← All diagrams

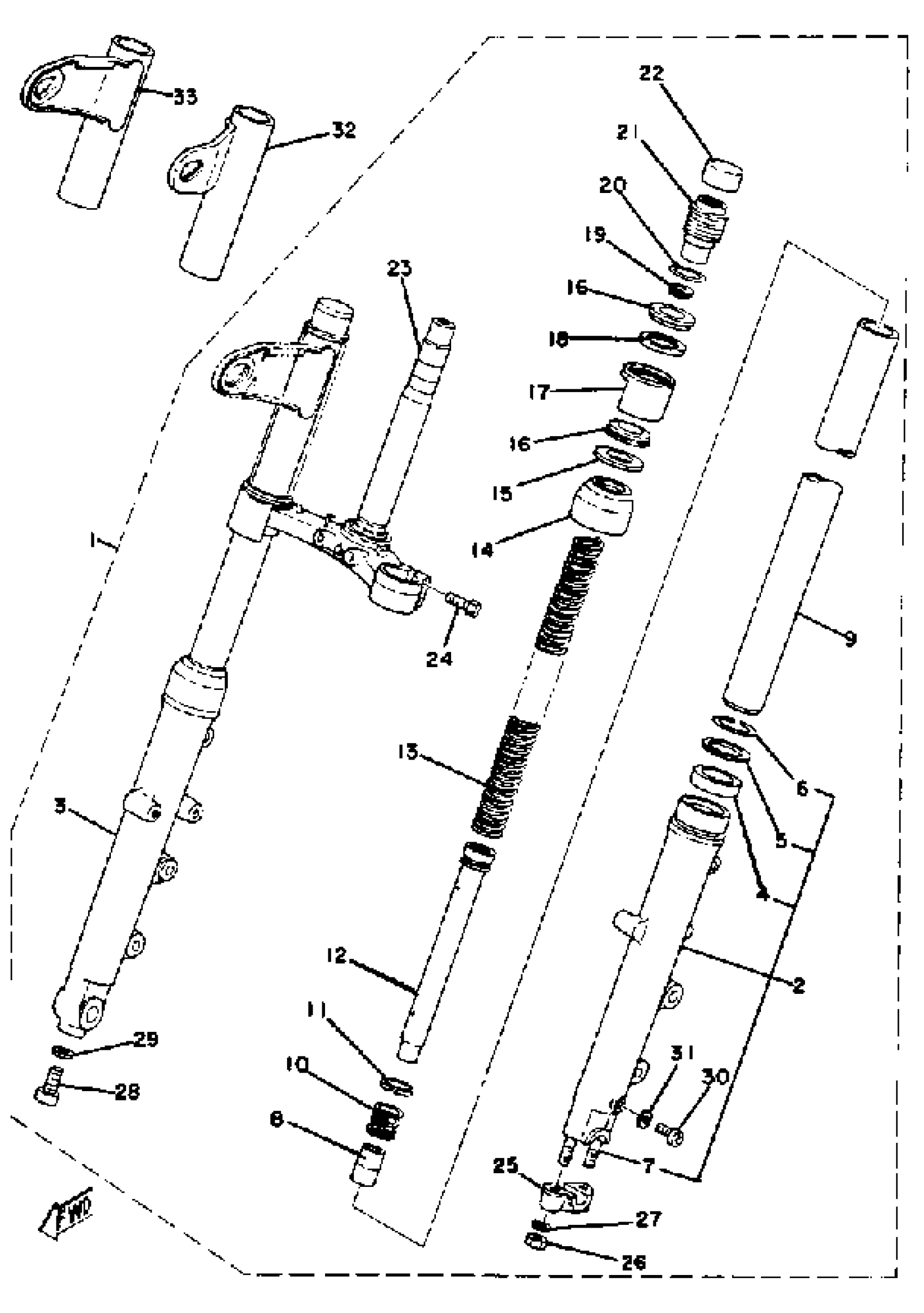

Find the part on the Front Fork diagram for your 1980 Yamaha XS650 (XS650G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Yamaha XS650 (XS650G) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY

(3N0-23101-00-00)

1
Out of stock

2

. TUBE, OUTER 1

2F0-23126-00-00

1
Out of stock

3

. TUBE, OUTER 2

2F0-23136-00-00

1
Out of stock

4

OIL SEAL

1T3-23145-00-00

1

$14.25

In stock

5

WASHER, OIL SEAL

341-23146-50-00

1

$8.72

In stock

6

CLIP, OIL SEAL

341-23156-50-00

1

$29.03

In stock

7

BOLT, STUD (278)

90116-08261-00

1
Out of stock

8

TAPER SPINDLE

1W1-23173-L0-00

1

$15.98

In stock

9

TUBE, INNER

2F0-23110-00-00

1
Out of stock

10

SPRING, REBOUND

(2F0-23151-00-00)

1
Out of stock

11

RING, FRONT FORK PISTON

2F0-23157-00-00

1

$5.20

In stock

12

. CYLINDER, FRTFRK

2F0-23170-00-00

1
Out of stock

13

. SPRING, FRONT FORK

2F0-23141-00-00

1
Out of stock

13

SPRING, FRONT FORK

(2F0-23141-10-00)

1
Out of stock

14

SEAL, DUST

1T3-23144-50-00

—

$26.14

In stock

15

WASHER, OIL SEAL

(1T3-23146-50-00)

1
Out of stock

16

. GASKET

1T3-23163-51-00

1
Out of stock

17

COVER, OUTER 1

(1T3-23122-51-00)

1
Out of stock

18

. GUIDE, COVER LOWER

1T3-23116-51-00

1
Out of stock

19

. WASHER, SPRING UPR

2F0-23149-00-00

1
Out of stock

20

RING, CAP BOLT

2F0-23114-00-00

—
Out of stock

21

. BOLT, CAP

2F0-23111-00-00

1
Out of stock

22

. CAP, FRONT FORK

2F0-23168-00-00

1
Out of stock

23

. UNDER BRACKET

1U3-23340-30-33

1
Out of stock

24

BOLT, AXLE HOLDER

18G-23128-00-00

—

$7.77

In stock

25

HOLDER,AXLE

341-23167-50-00

—
Out of stock

26

NUT, SELF-LOCKING (3Y2)

90185-08089-00

—

$7.31

In stock

27

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

28

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

—

$7.65

In stock

29

GASKET

509-23158-L0-00

—

$14.34

In stock

30

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

31

GASKET, DRAIN PLUG

122-23129-00-00

—

$6.37

In stock

32

COVER, UPPER 1

2M0-23121-00-93

1
Out of stock

33

COVER, UPPER 2

2M0-23131-00-93

1
Out of stock
