SPEEDOMETER - TACHOMETER

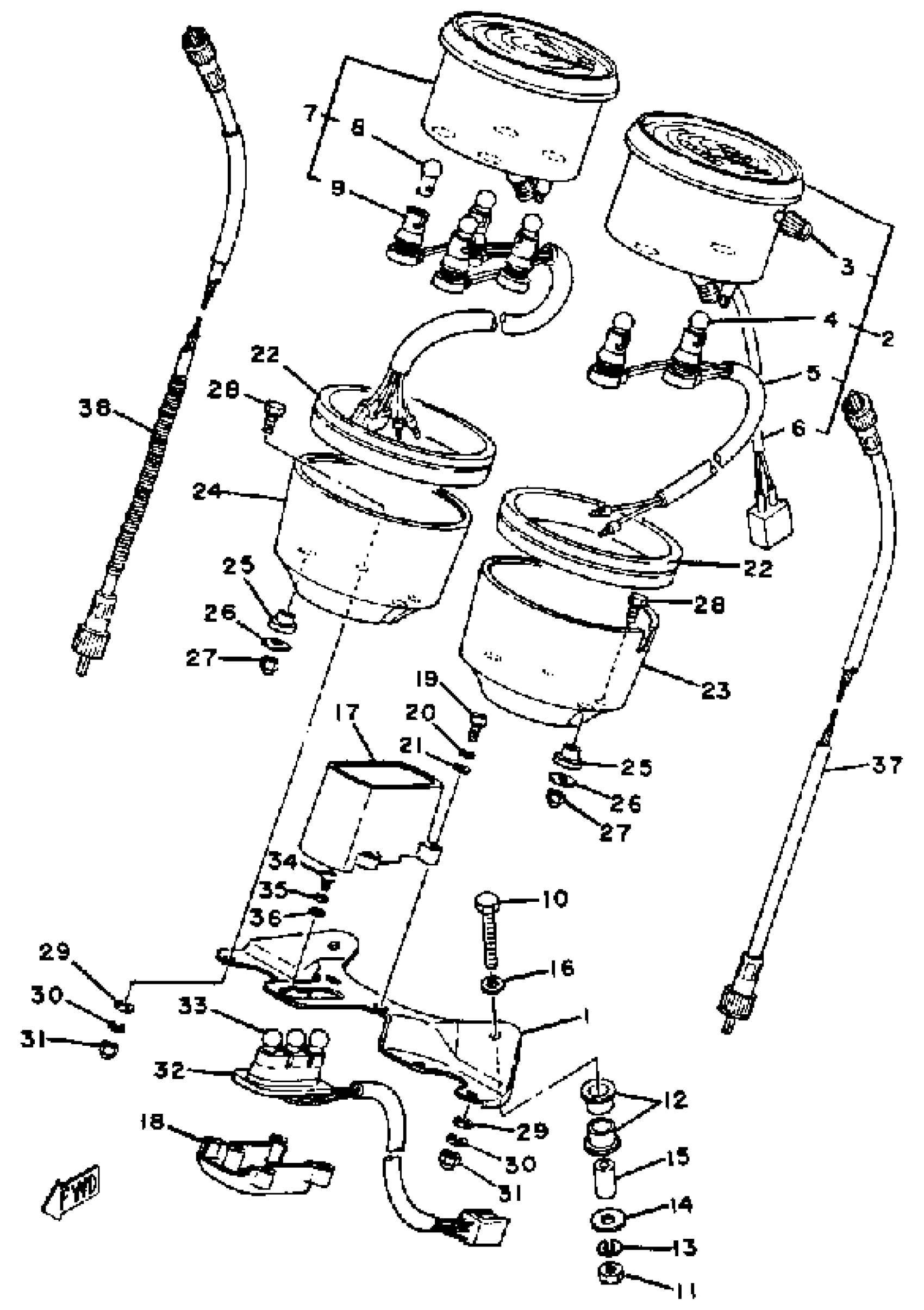

Yamaha XS650G (XS650) 1980 SPEEDOMETER - TACHOMETER Diagram
#
1
BRACKET, METER
2M0-83519-00-00
Unavailable
2
SPEEDOMETER ASSEMBLY
3G0-83570-A0-00
Unavailable
5
. SOCKET CORD ASSEMBLY (15A-83536-00)
5E2-83509-00-00
Unavailable
6
SENDER
(2J2-83556-00-00)
Unavailable
7
TACHOMETER ASSEMBLY
3G0-83540-A0-00
Unavailable
9
SOCKET CORD ASSEMBLY
(3G0-83520-00-00)
Unavailable
11
NUT, HEXAGON
95380-06600-00
Unavailable
12
DAMPER, METER BRACKET
584-83541-00-00
Unavailable
13
WASHER, SPRING
92995-06100-00
Unavailable
16
WASHER(6TA)
92907-06600-00
Unavailable
17
PILOT BOX, UPPER
2M0-83568-00-00
Unavailable
18
PILOT BOX, LOWER
2G2-83569-A0-00
Unavailable
19
SCREW, PAN HEAD
98517-04012-00
Unavailable
20
WASHER(6TA)
92907-04100-00
Unavailable
21
WASHER(JF2)
92907-04600-00
Unavailable
22
DAMPER
3H3-83513-00-00
Unavailable
23
COVER, SPEEDOMETER
2J2-83507-00-00
Unavailable
24
COVER, TACHOMETER
2J2-83508-00-00
Unavailable
25
DAMPER, METER COVER FITTING
584-83523-00-00
Unavailable
26
WASHER, PLATE (8J0)
90201-05725-00
Unavailable
27
NUT (CROWN)
95303-05800-00
Unavailable
28
BOLT
584-83546-00-00
Unavailable
29
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
30
WASHER, SPRING
92995-06100-00
Unavailable
31
NUT (J17)
95380-06800-00
Unavailable
32
SOCKET CORD ASSEMBLY
3G1-83509-00-00
Unavailable
34
SCREW, PAN HEAD
(92503-04008-00)
Unavailable
35
YBS67-4 WASHER, SPRING
92990-04100-00
Unavailable
36
WASHER, PLAIN (646)
92990-04600-00
Unavailable
37
SPEEDOMETER CABLE ASSY
16M-83550-01-00
Unavailable
38
TACHOMETER CABLE
447-83560-01-00
Unavailable
