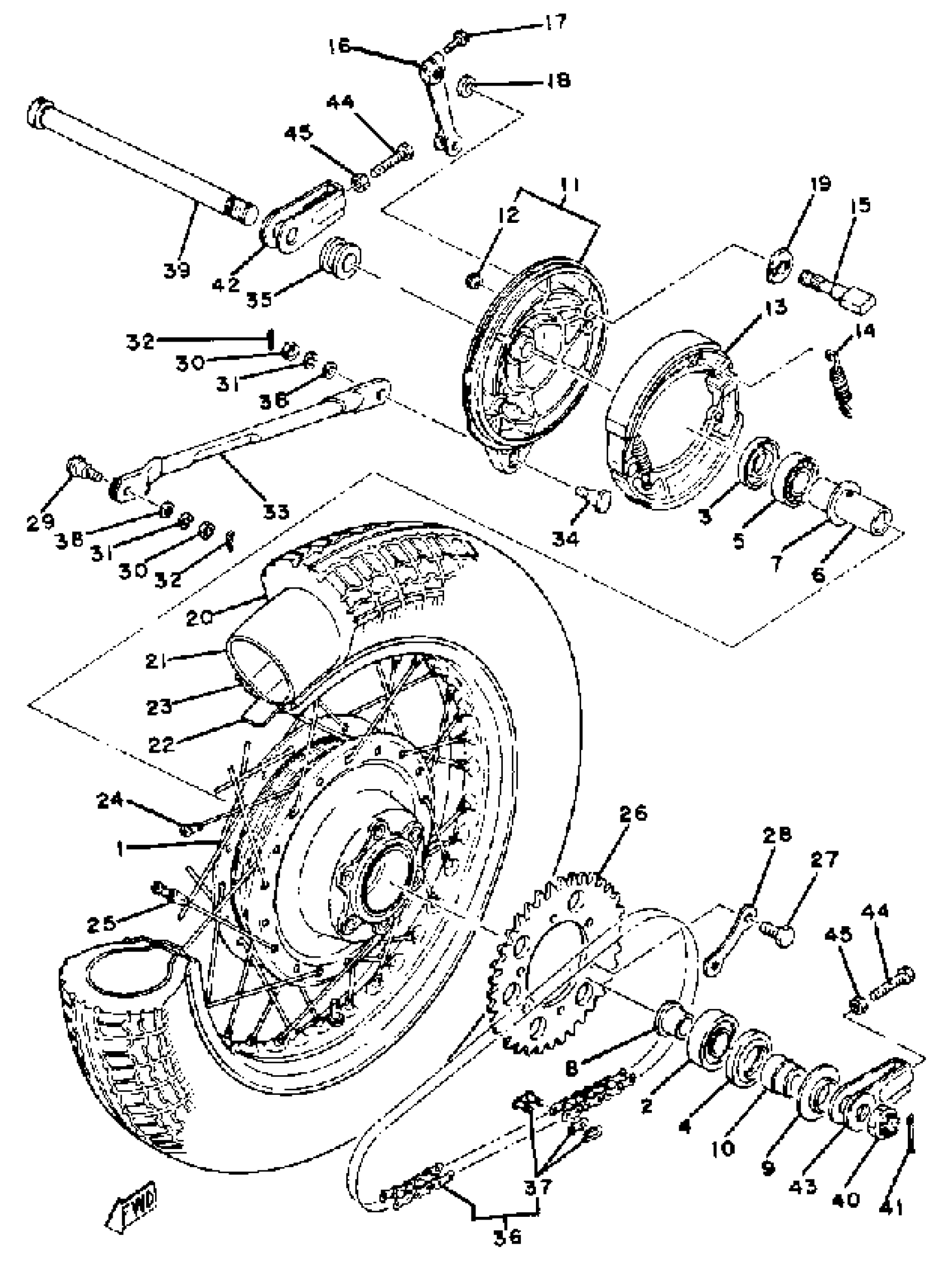

Yamaha XS650G (XS650) 1980 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

(256-25311-00-00)

Unavailable

2

BRG,R-B 6305ZZ 62MM 232G (6A5)

93306-305U0-00

Unavailable

3

OIL SEAL (27X52X5-256)

93104-27026-00

$19.99

4

OIL SEAL (35X62X9-256)

93102-35065-00

Unavailable

5

BEARING(3BC)

93306-30437-00

$66.99

6

SPACER

90560-20135-00

Unavailable

7

FLANGE, SPACER

4V4-25315-00-00

Unavailable

8

COLLAR

90387-20166-00

Unavailable

9

COVER, HUB DUST

256-25367-00-00

Unavailable

10

COLLAR

90387-20176-00

Unavailable

11

BRAKE SHOE PLATE ASSEMBLY

(1T3-25026-00-00)

Unavailable

12

GROMMET (397)

90480-10068-00

$8.49

13

BRAKE SHOE KIT

5R3-W253E-00-00

Unavailable

14

SPRING, TENSION 2462533300

90507-20002-00

$8.49

15

CAMSHAFT

1T3-25351-00-00

Unavailable

16

LEVER, CAMSHAFT

341-25355-00-00

Unavailable

17

BOLT, HEXAGON (462)

90101-06291-00

Unavailable

18

SEAL, CAM SHAFT

148-25359-00-00

Unavailable

19

WASHER, PLATE (3X3)

90201-15797-00

Unavailable

20

130/90S16 S21R

(94113-16388-00)

Unavailable

21

TUBE 130/90-16

94213-16135-00

Unavailable

22

BAND, RIM

94330-16058-00

Unavailable

23

RIM 2.75X16

94427-16226-00

Unavailable

24

SPOKE SET, REAR

3G0-25304-00-00

Unavailable

25

BALANCER, WHEEL

3HT-25398-00-00

Unavailable

26

SPROCKET,DRIVN 34T

256-25434-20-00

Unavailable

27

BOLT (583)

90101-10303-00

Unavailable

28

WASHER, LOCK

256-25412-00-00

Unavailable

29

BOLT

90109-08374-00

Unavailable

30

. NUT

95380-08700-00

Unavailable

31

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

32

PIN, COTTER

91490-20025-00

Unavailable

33

BAR, TENSION

2M1-25371-00-00

Unavailable

34

BOLT

90109-08338-00

Unavailable

35

COLLAR

90387-20444-00

Unavailable

36

CHAIN 50HDS-104L

94580-05104-00

Unavailable

37

CHAIN JOINT

94680-05011-00

Unavailable

38

.. WASHER, PLATE

92990-08600-00

Unavailable

39

AXLE, WHEEL

341-25381-00-00

Unavailable

40

NUT, CASTLE

90171-18043-00

Unavailable

41

PIN, COTTER

91490-40045-00

Unavailable

42

PULLER, CHAIN 1

341-25388-01-00

Unavailable

43

PULLER, CHAIN 2

341-25389-00-00

Unavailable

44

BOLT

90101-08060-00

Unavailable

45

NUT, HEXAGON (509)

90170-08158-00

Unavailable
