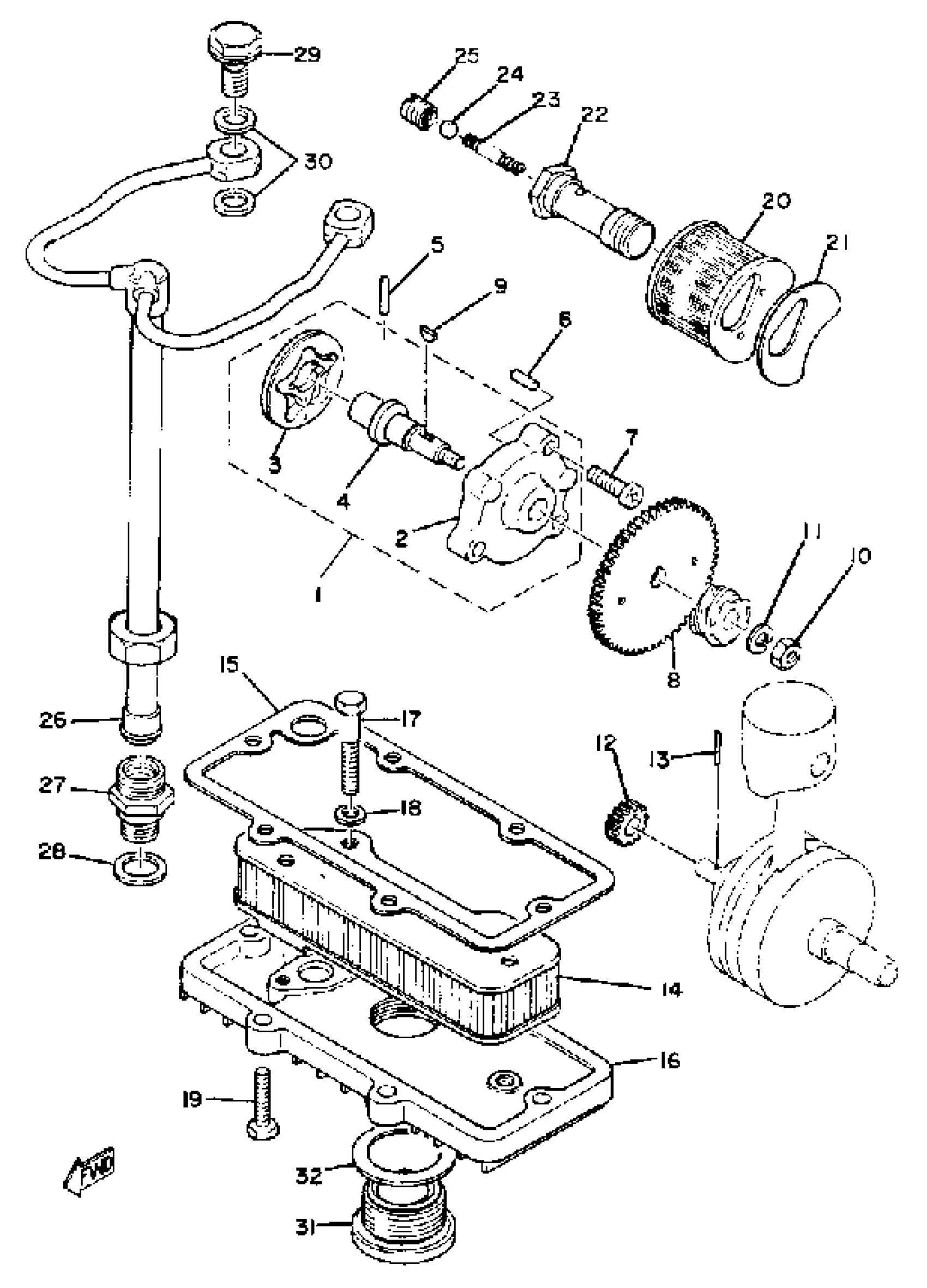

Yamaha XS650G (XS650) 1980 OIL PUMP Diagram

#

Description
Price

1

COVER, PUMP

256-00001-01-00

Unavailable

2

. COVER, PUMP

256-13316-02-00

Unavailable

3

. ROTOR ASSEMBLY 1

256-13310-02-00

Unavailable

4

. SHAFT, PUMP

256-13314-02-00

Unavailable

5

PIN,DOWEL

93603-17070-00

$4.14

6

PIN,DOWEL (168)

93604-12037-00

$8.49

7

SCREW PAN HEAD

98580-06020-00

$8.49

8

GEAR, PUMP DRIVEN

256-13325-00-00

Unavailable

9

KEY, WOODRUFF

90280-03023-00

Unavailable

10

NUT, HEXAGON

95380-06600-00

Unavailable

11

WASHER, SPRING

92995-06100-00

Unavailable

12

GEAR, PUMP DRIVE

(256-13324-01-00)

Unavailable

13

PIN,DOWEL

93603-17070-00

$4.14

14

STRAINER, OIL

256-13411-01-00

Unavailable

15

GASKET, STRAINER COVER

256-13414-11-00

$4.47

16

COVER, STRAINER

256-13417-00-00

Unavailable

17

BOLT, HEXAGON

97013-06045-00

Unavailable

18

WASHER, SPRING

92995-06100-00

Unavailable

19

BOLT, HEXAGON

97017-06025-00

Unavailable

20

ELEMENT, OIL CLNR

256-13441-00-00

Unavailable

21

GASKET, ELEMENT

256-13445-10-00

Unavailable

22

SCREW

256-13495-00-00

Unavailable

23

SPRING, COMPRESSION

90501-07031-00

Unavailable

24

BALL

93501-04011-00

Unavailable

25

SCREW, SPEC''L SHAPE

90149-10019-00

Unavailable

26

PIPE, DELIVERY 1

256-13161-01-00

Unavailable

27

BOLT, BANJO

256-13165-02-00

Unavailable

28

GASKET 256131670000

90430-14043-00

Unavailable

29

BOLT, UNION (16G)

90401-10084-00

Unavailable

30

GASKET (5R6)

90430-10171-00

Unavailable

31

PLUG, DRAIN

256-15351-00-00

Unavailable

32

GASKET, DRAIN PLUG

256-15353-00-00

Unavailable
