Description

Price

1

MSTR CYLINDER ASSEMBLY

3G1-25850-00-00

Unavailable

2

CYLINDER KIT, MASTER

535-W0041-60-00

$144.99

3

. RESERVOIR CAP ASSY

1J3-25852-01-00

Unavailable

4

SCREW,FLAT HEAD

98707-05030-00

Unavailable

5

. GASKET

1J3-25855-01-00

Unavailable

6

DIAPHRAGM, RESERVOIR

1J3-25854-01-00

$40.99

7

BRACKET, MASTER

1J3-25867-00-00

Unavailable

8

BOLT, HEXAGON

97017-06025-00

$4.24

9

WASHER, SPRING

92907-06100-00

$4.25

10

WASHER(6TA)

92907-06600-00

$2.72

11

HOSE, BRAKE 1

2M0-25872-00-00

Unavailable

12

HOSE BRK ASY

99999-02813-00

Unavailable

13

JOINT

1J7-25885-01-00

Unavailable

14

BOOT, MASTER CYLINDER

306-25862-00-00

$48.99

15

BOLT, HEXAGON

97017-06025-00

$4.24

16

WASHER, SPRING

92995-06100-00

Unavailable

17

WASHER, PLAIN (646)

92990-06600-00

Unavailable

18

BOLT, UNION(3GM)

90401-10159-00

Unavailable

19

WASHER, PLATE(481)

90201-10118-00

Unavailable

20

HOLDER, BRKE HOSE 1

1J3-25875-02-00

Unavailable

21

PLUG (341-26329-00)

90338-09012-00

Unavailable

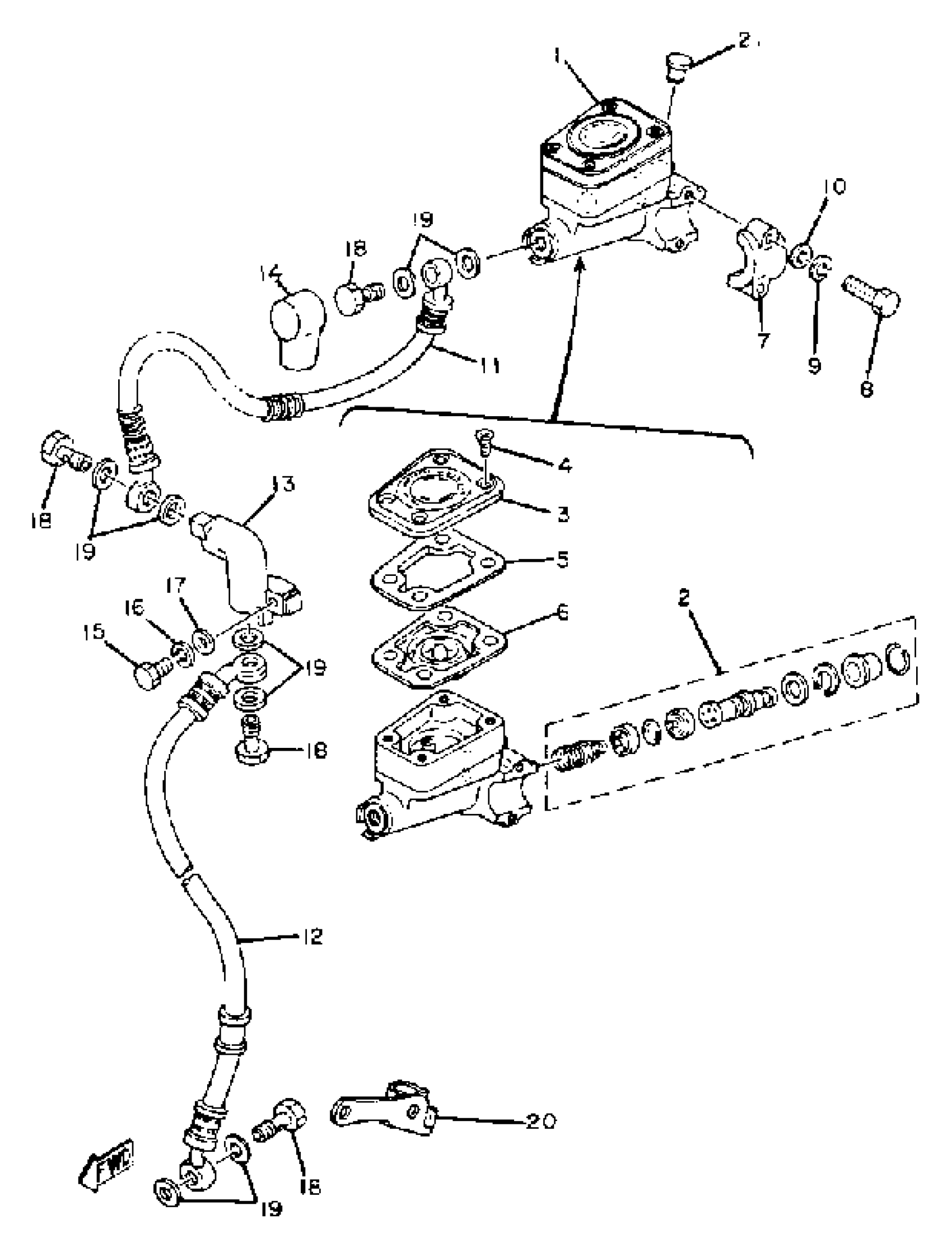

Yamaha XS650G (XS650) 1980 FRONT MASTER CYLINDER Diagram

MSTR CYLINDER ASSEMBLY

CYLINDER KIT, MASTER

. RESERVOIR CAP ASSY

SCREW,FLAT HEAD

. GASKET

DIAPHRAGM, RESERVOIR

BRACKET, MASTER

BOLT, HEXAGON

WASHER, SPRING

WASHER(6TA)

HOSE, BRAKE 1

HOSE BRK ASY

JOINT

BOOT, MASTER CYLINDER

BOLT, HEXAGON

WASHER, SPRING

WASHER, PLAIN (646)

BOLT, UNION(3GM)

WASHER, PLATE(481)

HOLDER, BRKE HOSE 1

PLUG (341-26329-00)
