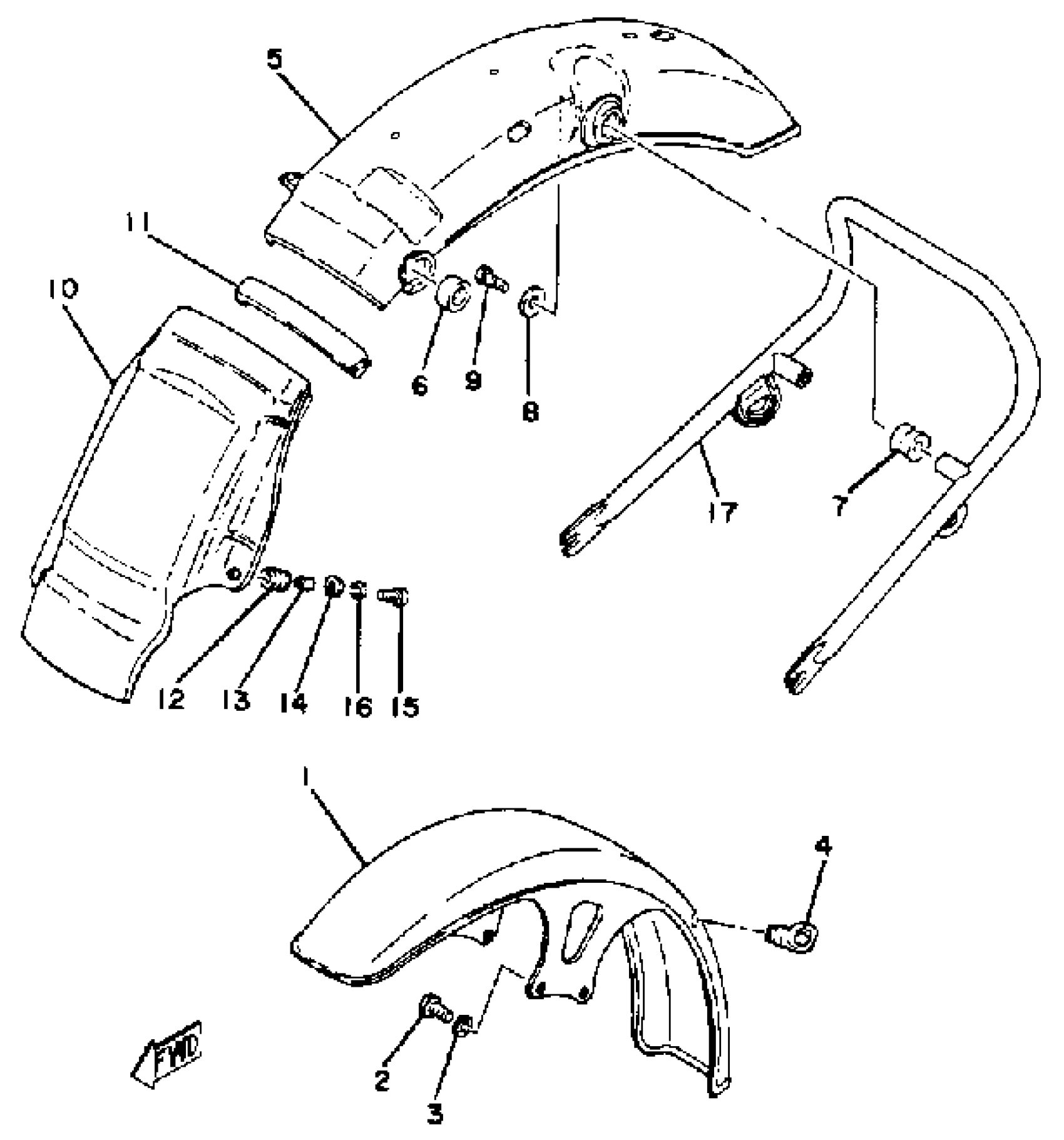

Yamaha XS650G (XS650) 1980 FRONT FENDER - REAR FENDER Diagram

#

Description
Price

1

FRONT FENDER COMP

2J2-21510-00-93

Unavailable

2

BOLT, HEXAGON

97013-08020-00

$1.16

3

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

4

HOLDER, WIRE

1A0-21518-00-00

Unavailable

5

FENDER, REAR

2M0-21610-00-93

Unavailable

6

DAMPER, LOCATING(1)

122-24181-00-00

$7.99

7

DAMPER, REAR

168-21639-00-00

$10.99

8

WASHER, PLATE

90201-15239-00

Unavailable

9

BOLT

90109-10349-00

Unavailable

10

GUARD, MUD

(2M0-21629-00-00)

Unavailable

11

SEAL

447-21268-01-00

Unavailable

12

GROMMET 839774310000

90480-14023-00

$7.49

13

COLLAR

90387-07020-00

$8.49

14

WASHER, PLATE

90201-06380-00

$0.60

15

BOLT, HEXAGON

97017-06025-00

$4.24

16

WASHER, SPRING

92995-06100-00

Unavailable

17

STAY, REAR

2M0-21645-00-00

Unavailable
