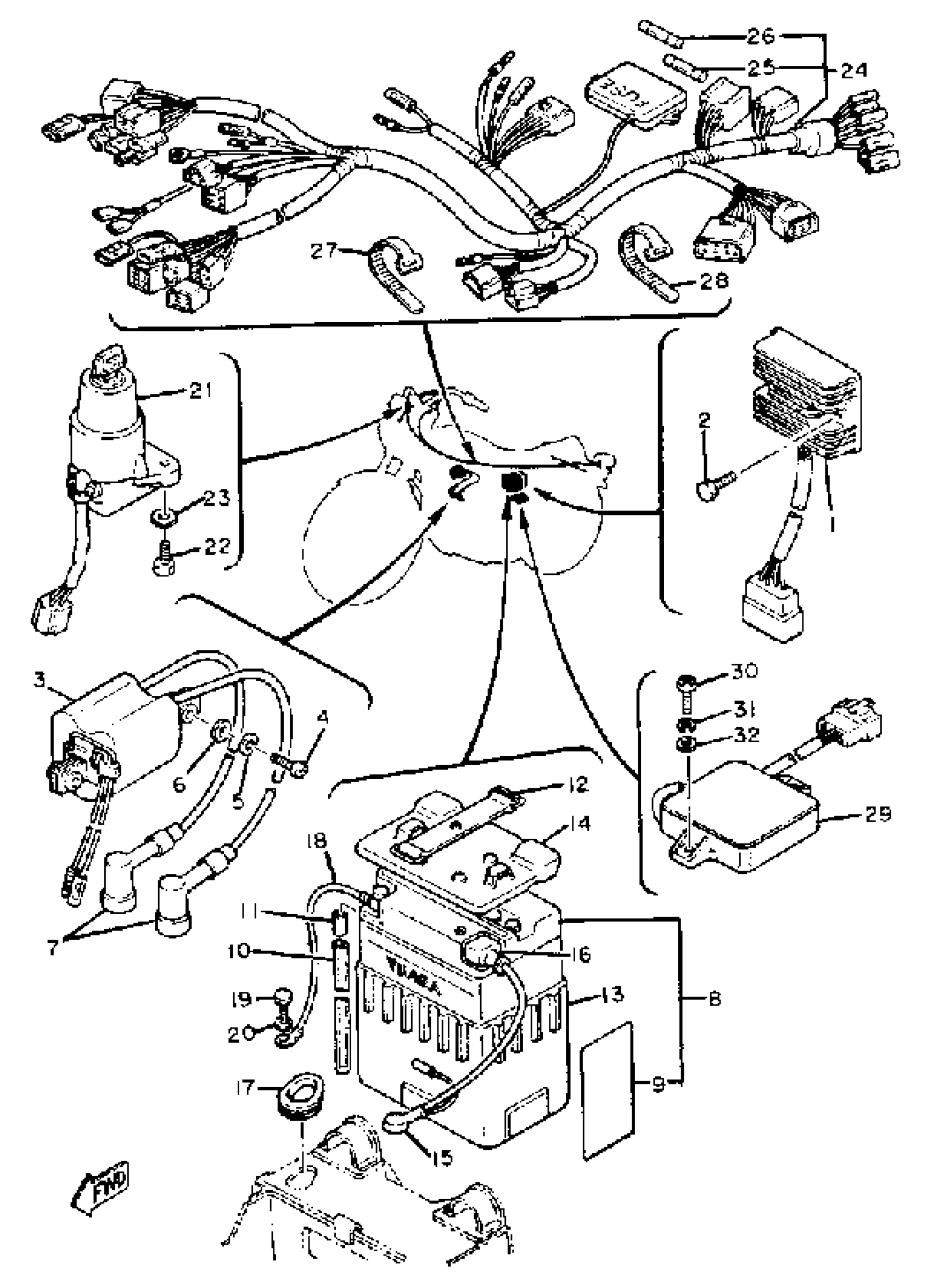

Yamaha XS650G (XS650) 1980 ELECTRICAL 1 Diagram

#

Description
Price

1

RECTIFIER & REGULATOR ASSY

3G1-81960-A1-00

Unavailable

2

BOLT

(90109-06558-00)

Unavailable

3

IGNITION COIL ASSEMBLY

3G1-82310-60-00

Unavailable

4

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

5

WASHER, SPRING

92995-06100-00

Unavailable

6

WASHER, PLAIN (646)

92990-06600-00

$2.80

7

PLUG CAP ASSY

4BP-82370-01-00

$35.99

7

PLUG CAP ASSY

7KA-82370-00-00

$67.99

8

YB14LA2 YUASA BATTERY

YB1-4LA20-00-00

Unavailable

10

HOSE (L1500)

90445-084J0-00

$18.99

11

BUSH, SPEC''L NYLON

(90386-07043-00)

Unavailable

12

BAND,BATTERY

7H3-82131-00-00

$17.49

13

SEAT, BATTERY

447-82122-00-00

Unavailable

14

COVER, BATTERY

2M0-82129-00-00

Unavailable

15

WIRE, PLUS LEAD

447-82115-01-00

Unavailable

16

COVER, LEAD WIRE

447-82119-00-00

Unavailable

17

BRACKET, BATTERY

(447-82128-00-00)

Unavailable

18

WIRE,MINUS LEAD

2H7-82116-00-00

Unavailable

19

BOLT (661)

97013-06012-00

Unavailable

20

WASHER, SPRING

92995-06100-00

Unavailable

21

MAIN SWITCH STEERING LOCK

3JV-82501-00-00

Unavailable

22

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

23

WASHER, PLAIN (646)

92990-06600-00

$2.80

24

WIRE HARNESS ASSEMBLY

3G0-82590-50-00

Unavailable

25

FUSE

1A0-82151-00-00

Unavailable

26

FUSE

1A0-82161-00-00

Unavailable

27

BAND, SWITCH CORD

25G-83936-01-00

Unavailable

28

BAND, SWITCH CORD

437-83936-11-00

Unavailable

29

IGNITOR UNIT ASSEMBLY 1

4M4-82305-10-00

Unavailable

30

SCREW, PAN HEAD (76T)

98517-06025-00

Unavailable

31

WASHER, SPRING

92995-06100-00

Unavailable

32

WASHER, PLATE

90201-06380-00

Unavailable

999

LABEL, BATTERY

40A-82141-G0-00

Unavailable
