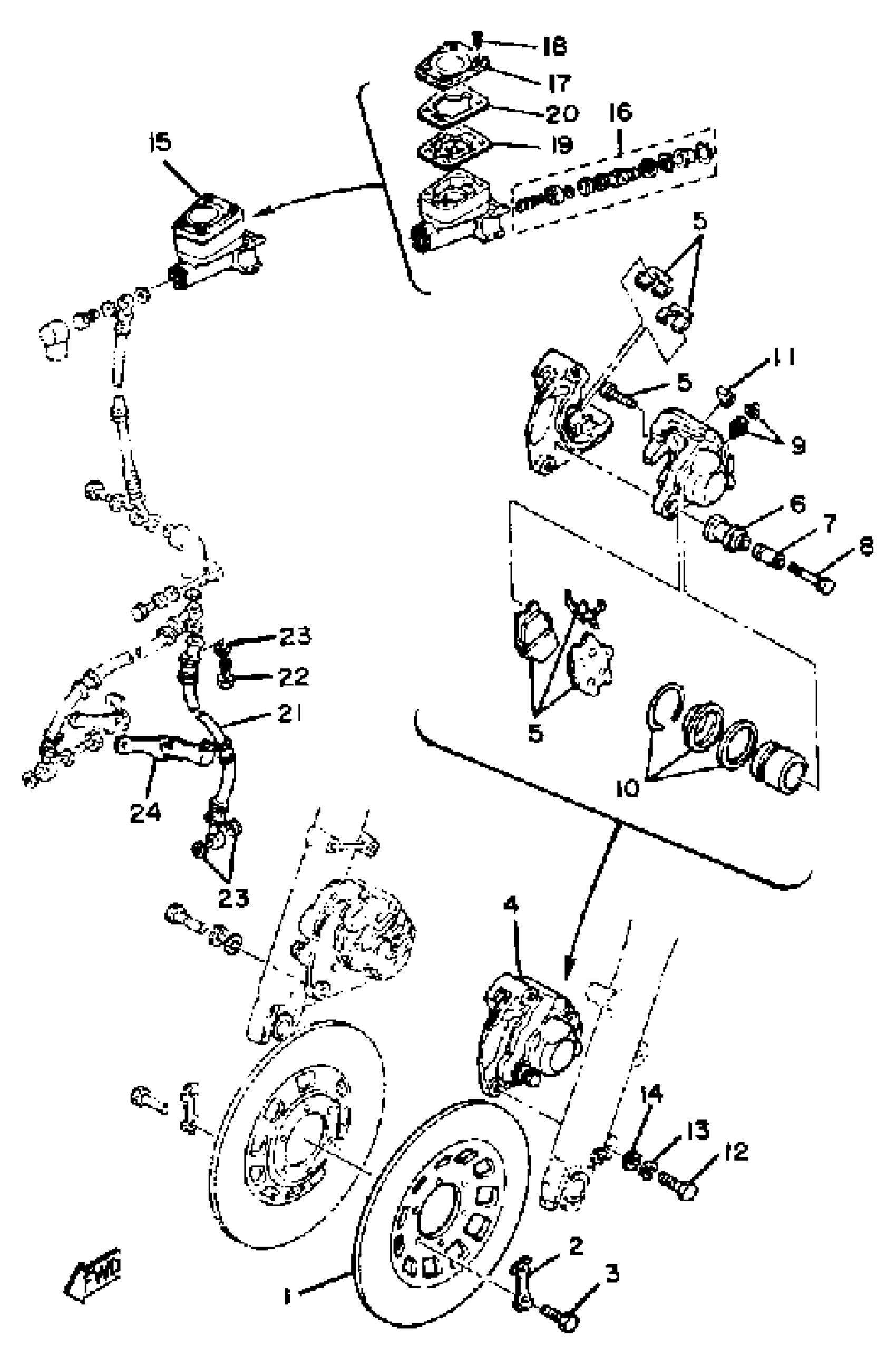

Yamaha XS650G (XS650) 1980 DOUBLE DISC BRAKES Diagram

#

Description
Price

1

DISC, BRAKE

(1J3-25831-00-00)

Unavailable

2

WASHER, LOCK

1J3-25834-01-00

$6.99

3

BOLT, HEXAGON (1L9)

90101-08312-00

$9.49

4

CALIPER ASSEMBLY LH

3H5-25810-12-00

Unavailable

5

BRAKE PAD KIT

4K0-W0045-02-00

$56.99

6

BOOT, CALIPER

1J3-25917-00-00

Unavailable

7

. SLEEVE, CALIPER

1J3-25838-00-00

Unavailable

8

. BOLT, WASHER BASED

90105-08145-00

Unavailable

9

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

10

CALIPER SEAL KIT

1J3-W0047-00-00

$56.99

11

. CAP, INDICATOR

1J3-25845-01-00

Unavailable

12

BOLT, WASHER BASED(3VD)

90105-10638-00

$7.49

13

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

14

958-69527-00 WASHER, PLAIN

92990-10200-00

$3.72

15

MSTR CYLINDER ASSEMBLY

2G2-25850-01-00

Unavailable

16

CYLINDER KIT, MASTER (DOUBLE)

1J3-W0041-20-00

Unavailable

17

. RESERVOIR CAP ASSY

1J3-25852-01-00

Unavailable

18

. SCREW

2G2-25857-00-00

Unavailable

19

DIAPHRAGM, RESERVOIR

1J3-25854-01-00

Unavailable

20

. GASKET

1J3-25855-01-00

Unavailable

21

HOSE BRK ASY

99999-02813-00

Unavailable

22

BOLT, UNION

90401-10038-00

Unavailable

23

WASHER, PLATE(481)

90201-10118-00

Unavailable

24

HOLDER, BRKE HOSE 2

1J3-25876-02-00

Unavailable
