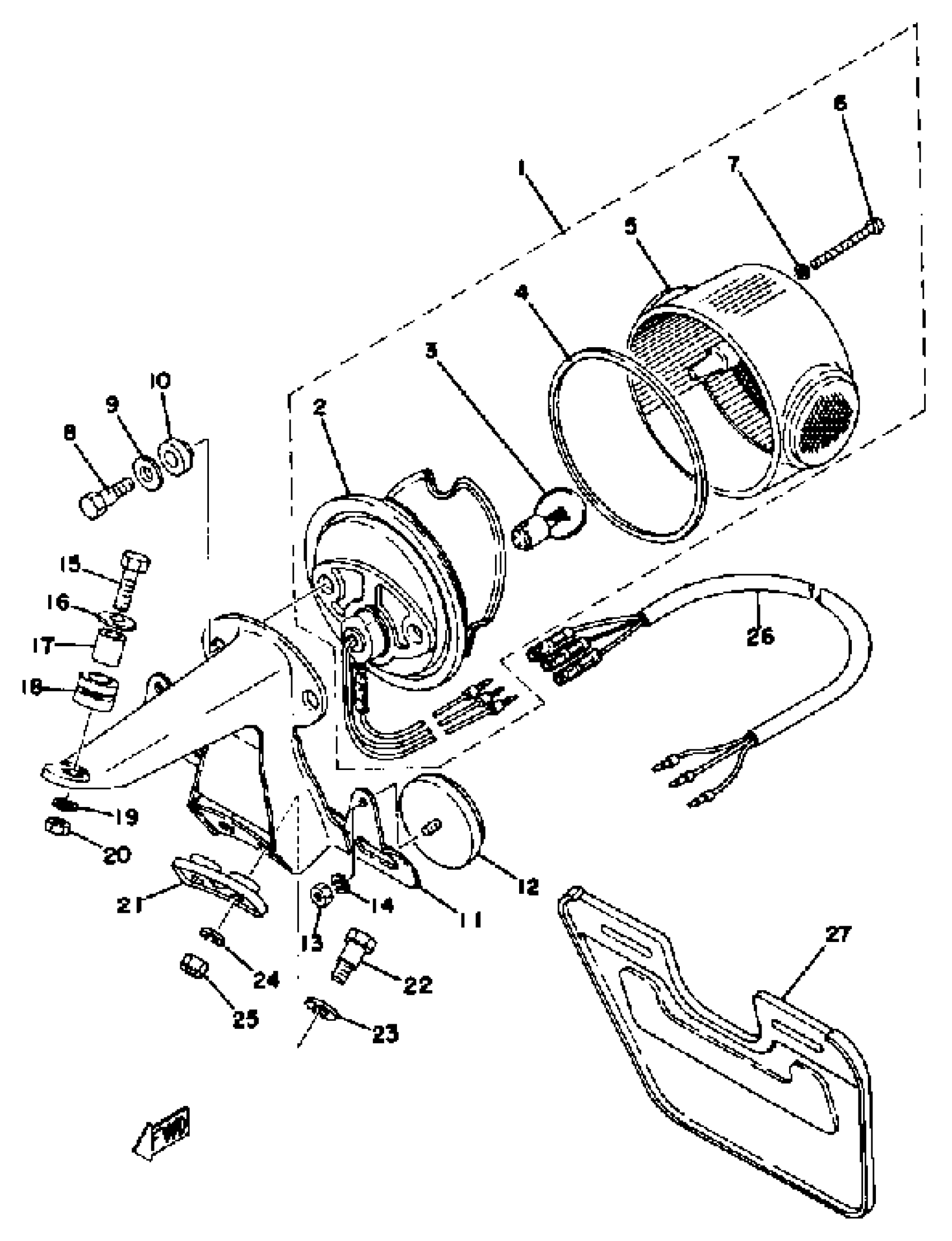

Yamaha XS650D (XS650) 1977 TAILLIGHT XS650D E E006501~ F Diagram

#

Description
Price

1

TAILLIGHT UNIT ASSEMBLY

371-84710-61-00

Unavailable

2

TAILLIGHT UNIT ASSEMBLY

371-84710-61-00

Unavailable

3

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

4

. GASKET, LENS

275-84523-60-00

Unavailable

5

. LENS, TAIL LIGHT

341-84721-60-00

Unavailable

6

SCREW, PANHEAD (4G7)

98580-04055-00

Unavailable

7

. WASHER

341-84722-60-00

Unavailable

8

SCREW

(479-84526-00-00)

Unavailable

9

WASHER, SPECIAL

2H7-84754-00-00

$10.99

10

. DAMPER

275-84527-60-00

Unavailable

11

. BRACKET, LICENSE

341-84751-61-93

Unavailable

12

REFLECTOR, REAR 1

449-85131-02-00

$30.99

13

NUT, HEXAGON (663)

95380-05600-00

$8.49

14

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

15

BOLT, HEXAGON

97017-06025-00

$4.24

16

WASHER

90209-06012-00

Unavailable

17

COLLAR

90387-07020-00

Unavailable

18

GROMMET 839774310000

90480-14023-00

Unavailable

19

WASHER, SPRING

92995-06100-00

Unavailable

20

NUT, HEXAGON

95380-06600-00

Unavailable

21

DAMPER

214-84553-01-00

Unavailable

22

BOLT 168217380000

90109-06017-00

Unavailable

23

WASHER, PLAIN

92990-08200-00

Unavailable

24

WASHER, SPRING

92995-06100-00

Unavailable

25

NUT, HEXAGON

95380-06600-00

Unavailable

26

CORD, TAIL LIGHT

438-84517-00-00

Unavailable

27

PLATE, NO SUPPORT

(447-28189-00-00)

Unavailable
