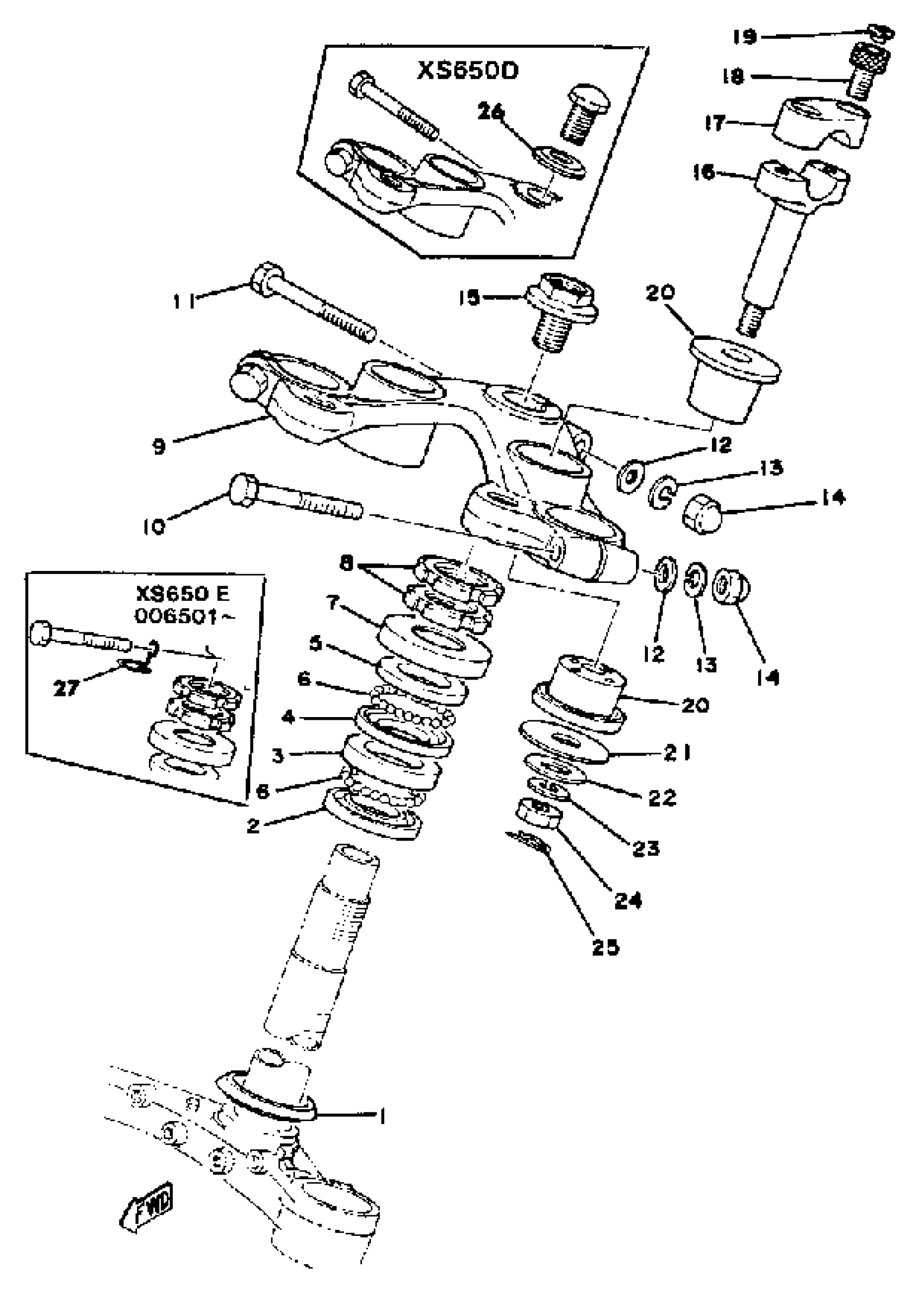

Yamaha XS650D (XS650) 1977 STEERING XS650D E E006501~ F Diagram

#

Description
Price

1

SEAL, DUST

164-23462-00-00

$7.99

2

RACE, BALL 1

256-23411-00-00

Unavailable

3

RACE, BALL2

256-23412-00-00

Unavailable

4

RACE, BALL3

256-23413-00-00

Unavailable

5

RACE, BALL4

256-23414-00-00

Unavailable

6

BALL

93501-04011-00

$8.49

7

COVER, BALL RACE

136-23415-00-00

$8.99

8

NUT

90179-25004-00

$24.99

9

CROWN, HANDLE

1T3-23435-01-98

Unavailable

10

BOLT, HEXAGON

97013-08050-00

Unavailable

11

BOLT

97021-08065-00

Unavailable

12

WASHER, PLATE 1562722600

90201-08083-00

$9.49

12

.. WASHER, PLATE

92990-08600-00

Unavailable

13

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

14

NUT, CROWN

95303-08800-00

$9.49

15

BOLT (2A2)

90105-14102-00

Unavailable

16

HOLDER, HANDLE LWR

256-23442-00-98

Unavailable

17

HOLDER, HANDLE UPR

360-23441-01-98

Unavailable

18

BOLT, SOCKET

91317-08020-00

Unavailable

19

CAP, BOLT (371,447)

341-23469-00-00

Unavailable

20

BUSHING, RUBBER

1T4-23434-00-00

Unavailable

21

WASHER, PLATE

90201-12196-00

Unavailable

22

WASHER PLATE 256234440000

90201-10149-00

Unavailable

23

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

24

NUT (682)

95380-10700-00

Unavailable

25

CLIP 136253750000

90468-12006-00

Unavailable

26

WASHER, SPEC''L SHAP (341-23443-00)

90209-14023-00

Unavailable

27

HOLDER, CABLE

4H7-23317-00-00

Unavailable
