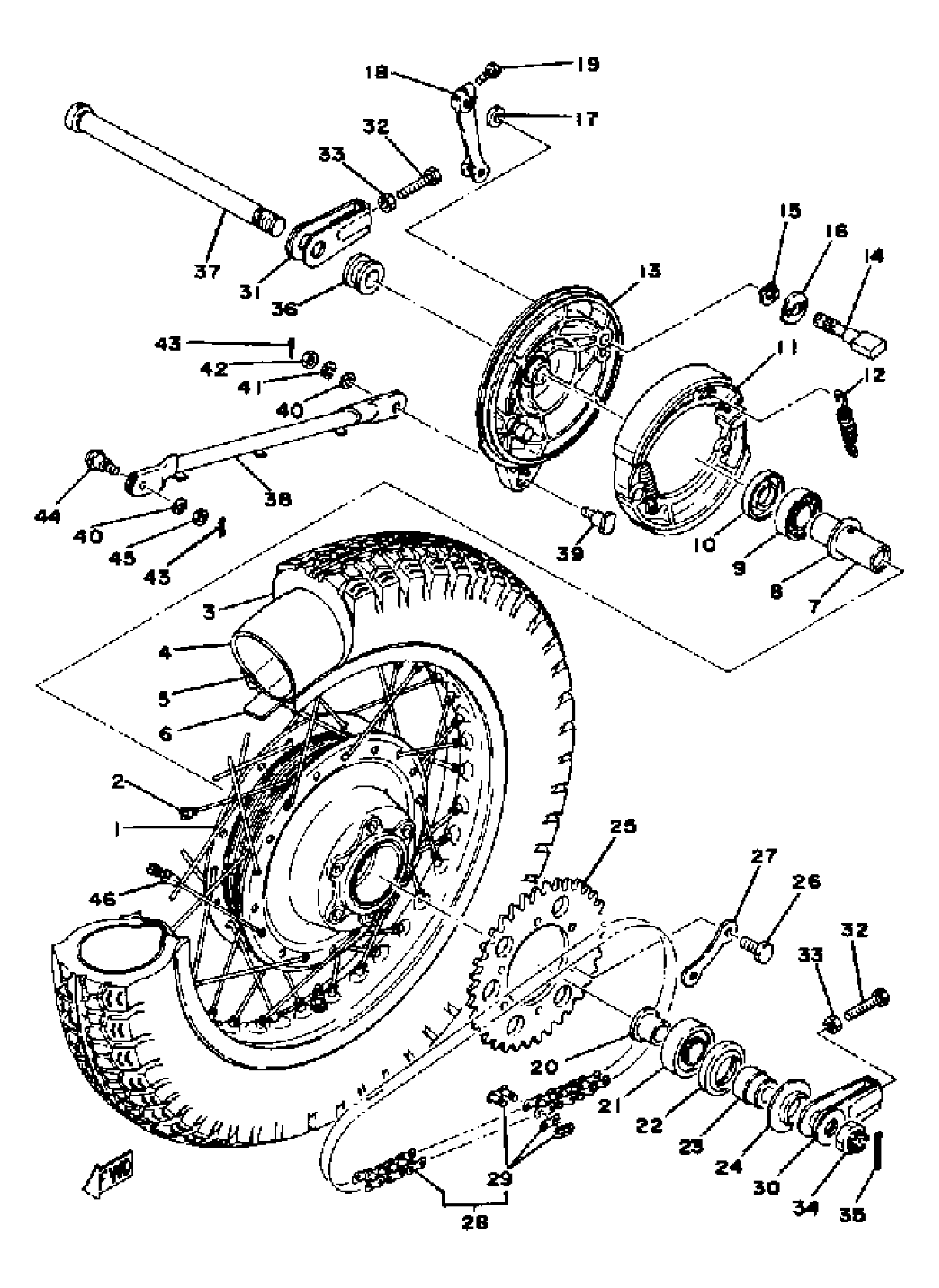

Yamaha XS650D (XS650) 1977 REAR WHEEL XS650D E E006501~ F Diagram

#

Description
Price

1

HUB, REAR

(256-25311-00-00)

Unavailable

2

SPOKE SET, REAR

256-25304-00-00

Unavailable

3

TIRE 400H18 Y987 YOKO

(94140-18340-00)

Unavailable

4

TUBE (5A8)

94212-18188-00

$35.99

5

RIM 2.15X18

(94421-18146-00)

Unavailable

6

BAND, RIM (2J4)

94340-18086-00

$17.99

7

SPACER

90560-20135-00

Unavailable

8

FLANGE, SPACER

4V4-25315-00-00

Unavailable

9

BEARING(3BC)

93306-30437-00

$66.99

10

OIL SEAL (27X52X5-256)

93104-27026-00

$19.99

11

BRAKE SHOE KIT

5R3-W253E-00-00

Unavailable

12

SPRING, TENSION 2462533300

90507-20002-00

$8.49

13

BRAKE SHOE PLATE ASSEMBLY

(1T3-25026-00-00)

Unavailable

13

PLATE, BRAKE SHOE

(447-25321-00-00)

Unavailable

14

CAMSHAFT

341-25351-00-00

Unavailable

15

GROMMET (397)

90480-10068-00

Unavailable

16

WASHER, PLATE (3X3)

90201-15797-00

Unavailable

17

SEAL, CAM SHAFT

148-25359-00-00

Unavailable

18

LEVER, CAMSHAFT

341-25355-00-00

Unavailable

19

BOLT, HEXAGON (462)

90101-06291-00

Unavailable

21

COLLAR

90387-20166-00

Unavailable

22

BRG,R-B 6305ZZ 62MM 232G (6A5)

93306-305U0-00

Unavailable

23

OIL SEAL (35X62X9-256)

93102-35065-00

Unavailable

24

COLLAR

90387-20176-00

Unavailable

25

COVER, HUB DUST

256-25367-00-00

Unavailable

25

SPROCKET, DRIVN 32T (32T)

256-25432-20-33

Unavailable

25

SPROCKET, DRIVN 33T

(256-25433-20-33)

Unavailable

25

SPROCKET,DRIVN 34T

256-25434-20-00

Unavailable

25

SPROCKET, DRIVN 36T (36T)

256-25436-20-33

Unavailable

26

BOLT (583)

90101-10303-00

Unavailable

27

WASHER, LOCK

256-25412-00-00

Unavailable

28

CHAIN 50HDS-104L

94580-05104-00

Unavailable

29

CHAIN JOINT

94680-05011-00

Unavailable

30

PULLER, CHAIN 1

341-25388-01-00

Unavailable

31

PULLER, CHAIN 2

341-25389-00-00

Unavailable

32

BOLT

90101-08060-00

Unavailable

33

NUT, HEXAGON (509)

90170-08158-00

Unavailable

33

. NUT

95380-08700-00

Unavailable

34

NUT, CASTLE

90171-18043-00

Unavailable

35

PIN, COTTER

91490-40045-00

Unavailable

36

COLLAR

90387-20444-00

Unavailable

37

AXLE, WHEEL

341-25381-00-00

Unavailable

38

BAR, TENSION (341-25371-00)

1T3-25371-00-00

Unavailable

39

BOLT

90109-08338-00

Unavailable

40

.. WASHER, PLATE

92990-08600-00

Unavailable

41

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

42

NUT, HEXAGON (509)

90170-08158-00

Unavailable

43

PIN, COTTER

91490-20025-00

Unavailable

44

BOLT

90109-08374-00

Unavailable

45

NUT(3KX)

90179-08639-00

Unavailable

46

BALANCER, WHEEL

3HT-25398-00-00

Unavailable

47

SHIM, CAMSHAFT

(447-25353-00-00)

Unavailable

48

WASHER, WAVE (648-42188-00)

90206-14020-00

Unavailable
