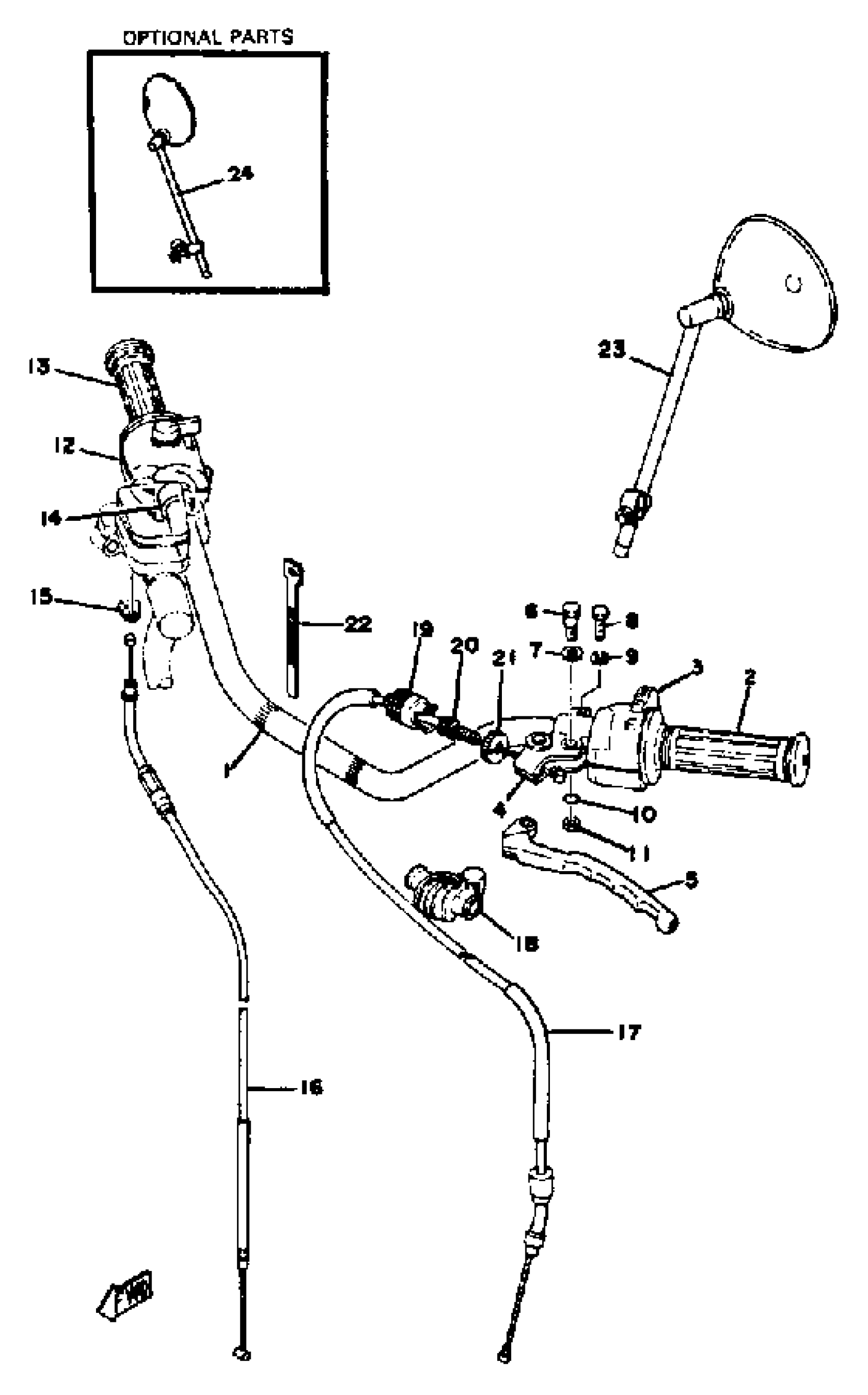

Yamaha XS650D (XS650) 1977 HANDLE WIRE XS650F Diagram

#

Description
Price

1

HANDLEBAR

584-26111-10-00

Unavailable

2

GRIP LH

2H7-26241-01-00

$11.99

3

UNAVAILABLE IN PRICE BOOK

1G3-83973-00-00

Unavailable

4

HOLDER, LEVER (L.H) (371,447)

341-82911-00-00

Unavailable

5

LEVER L

2H0-83912-31-00

$31.99

6

BOLT(1FG)

90109-06798-00

$8.49

7

WASHER, PLATE 1562722600

90201-08083-00

$9.49

8

BOLT, HEXAGON

97013-06022-00

$0.90

9

WASHER, SPRING

92995-06100-00

Unavailable

10

O-RING (2H7)

93210-11368-00

$5.60

11

NUT, SELF-LOCKING

95617-06100-00

$8.49

12

SWITCH, HANDLE 2LR

2L0-83975-01-98

Unavailable

13

GRIP ASSY

2H7-26240-01-00

$18.49

13

COLLAR

(90387-22591-00)

Unavailable

14

COLLAR

(90387-22591-00)

Unavailable

15

HOLDER,

584-26393-02-00

Unavailable

16

CABLE, THROTTLE 1 (1010MM)

584-26311-10-00

Unavailable

17

CABLE, CLUTCH (256-26335-02)

447-26335-00-00

Unavailable

18

BOOT, WIRE

1E6-26342-00-00

Unavailable

19

COVER, LEVER

1E6-26372-00-00

Unavailable

20

BOLT

90123-08002-00

Unavailable

21

NUT

90179-08030-00

Unavailable

22

BAND, SWITCH CORD

437-83936-01-00

Unavailable

23

MIRROR ASSEMBLY

1T3-26290-01-00

Unavailable

24

MIRROR ASSEMBLY

1T3-26290-01-00

Unavailable
