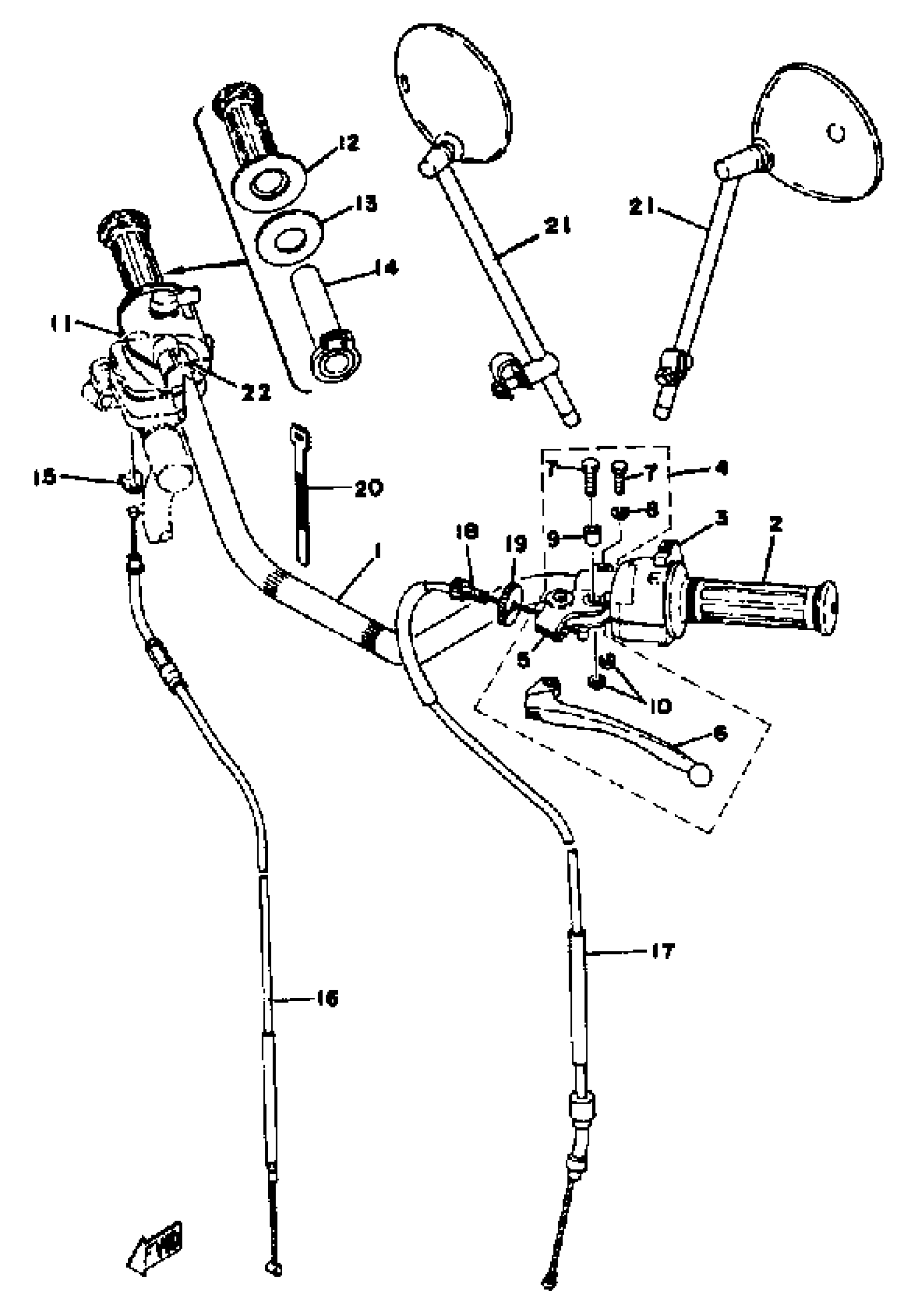

Yamaha XS650D (XS650) 1977 HANDLE WIRE XS650D Diagram

#

Description
Price

1

HANDLEBAR

584-26111-10-00

Unavailable

2

GRIP, HANDLE (L.H)

1E6-26241-00-00

$34.99

3

SWITCH, HANDLE 3

1T3-83973-00-00

Unavailable

4

LEVER HOLDER ASSEMBLY 1

(1J3-82910-00-00)

Unavailable

5

HOLDER, LEVER (L.H) (371,447)

341-82911-00-00

Unavailable

6

LEVER(L.H)

214-83912-00-00

$23.99

7

BOLT, HEXAGON

97013-06022-00

$0.90

8

WASHER, SPRING

92995-06100-00

Unavailable

9

COLLAR, LEVER

214-83913-00-00

$7.99

10

NUT, SELF-LOCKING

95617-06100-00

$8.49

11

SWITCH, HANDLE 3

584-83963-00-00

Unavailable

12

GRIP (R.H)

1A0-26242-01-00

$39.99

13

WASHER, PLATE(1UU)

90201-261L1-00

$10.49

14

TUBE, THROTTLE GUIDE

584-26243-00-00

Unavailable

15

HOLDER,

584-26393-02-00

Unavailable

16

CABLE, THROTTLE 1 (1010MM)

584-26311-10-00

Unavailable

17

CABLE, CLUTCH (256-26335-02)

447-26335-00-00

Unavailable

18

BOLT

90123-08002-00

Unavailable

19

NUT

90179-08030-00

Unavailable

20

BAND, SWITCH CORD

437-83936-01-00

Unavailable

21

MIRROR ASSEMBLY

1T3-26290-01-00

Unavailable

22

COLLAR

(90387-22591-00)

Unavailable
