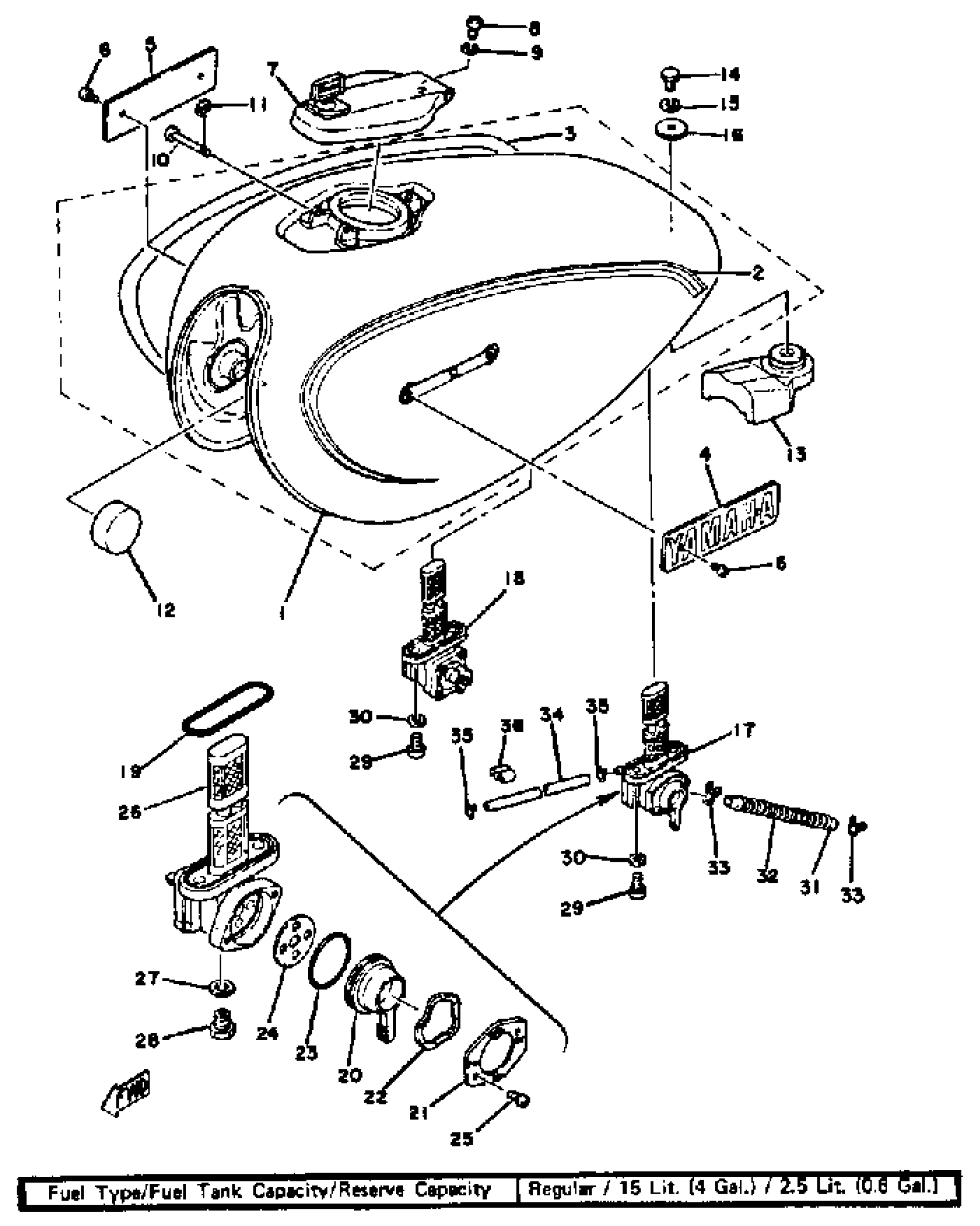

Yamaha XS650D (XS650) 1977 FUEL TANK XS650F Diagram

#

Description
Price

1

FUEL TANK

(2F0-24110-00-03)

Unavailable

2

GRAPHIC, FUEL TNK 1

(2F0-24244-10-00)

Unavailable

3

GRAPHIC, FUEL TNK 2

(2F0-24245-10-00)

Unavailable

4

EMBLEM 1

2F0-24161-10-00

Unavailable

5

EMBLEM 2

2F0-24162-10-00

Unavailable

6

SCREW (2F0)

90152-04006-00

$10.49

7

CAP ASSEMBLY

1E7-24602-00-00

Unavailable

8

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

9

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

10

PIN, SPECIAL SHAPE

90249-03123-00

Unavailable

11

CIRCLIP (604)

93430-02001-00

$8.49

12

DAMPER, LOCATING 1

3TB-24181-00-00

$14.49

13

DAMPER, LOCATING 1

256-24181-01-00

Unavailable

14

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

15

WASHER, SPRING

92995-06100-00

Unavailable

16

WASHER PLATE 248217570000

90201-06074-00

Unavailable

17

FUEL COCK ASSEMBLY 1 (2M0-24500-03)

2M0-24500-04-00

Unavailable

18

FUEL COCK ASSEMBLY 2 (2M0-24510-02)

2M0-24510-04-00

Unavailable

19

O-RING

2G2-24512-00-00

Unavailable

20

LEVER, COCK

(2G2-24524-00-00)

Unavailable

21

PLATE, LVR FITTING

(2G2-24525-00-00)

Unavailable

21

. PLATE, LVR FITTING

2G2-24525-10-00

Unavailable

22

. WASHER, WAVE

16G-24518-00-00

Unavailable

23

TOOL

UNA-VAILA-BL-EI

Unavailable

24

VALVE

16G-24523-00-00

Unavailable

25

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

26

. NET, FILTER 1

2G2-24514-00-00

Unavailable

27

GASKET, DRAIN PLUG

2G2-24522-00-00

Unavailable

28

. PLUG, DRAIN

2G2-24543-00-00

Unavailable

29

SCREW 366241430000

90149-06008-00

Unavailable

30

WASHER, PLATE(3MB)

90202-05187-00

Unavailable
