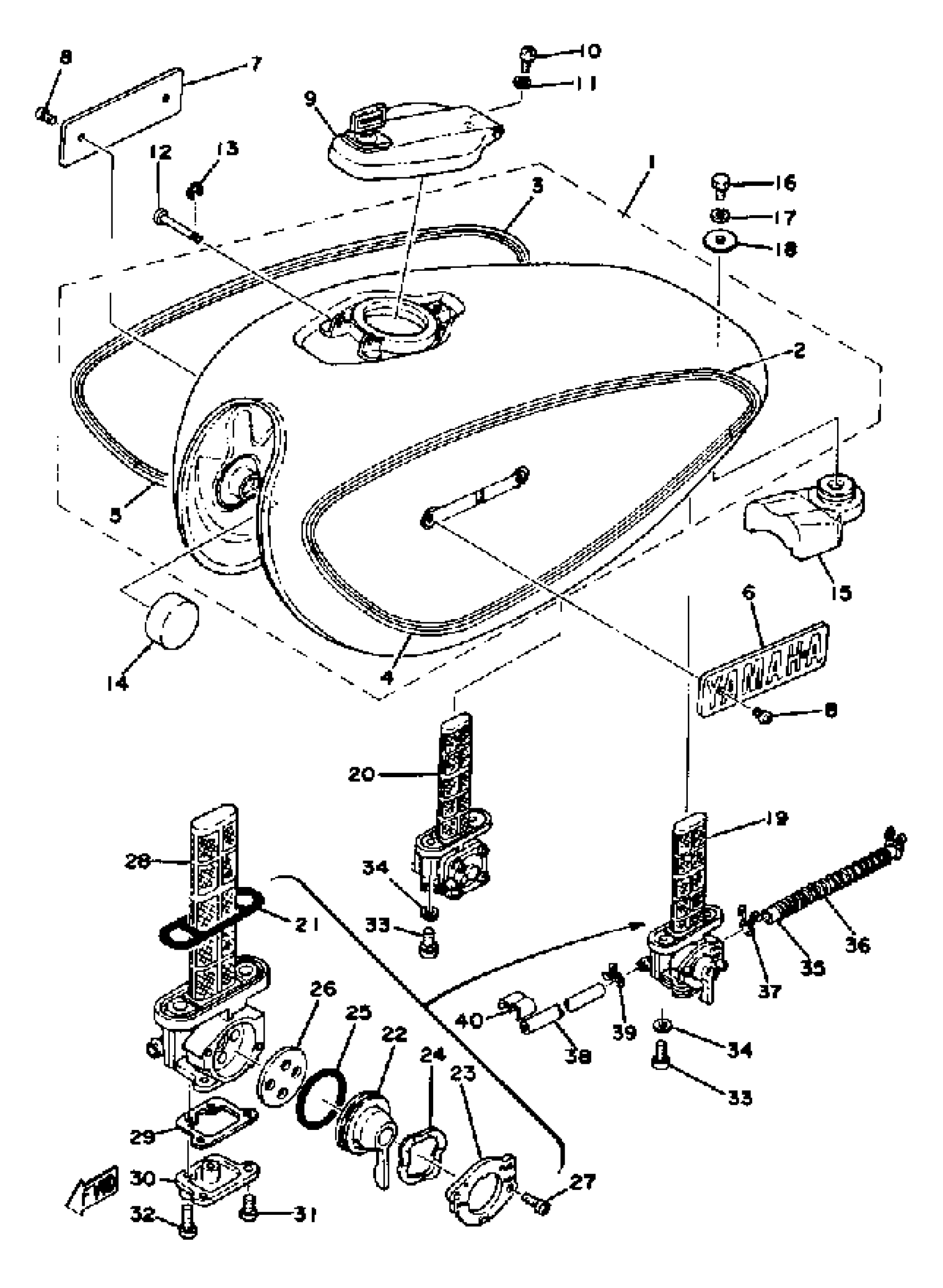

Yamaha XS650D (XS650) 1977 FUEL TANK XS650E E006501~ Diagram

#

Description

Price

1

FUEL TANK

(2F0-24110-00-01)

Unavailable

1

FUEL TANK

(2F0-24110-00-02)

Unavailable

2

. GRAPHIC, FUEL TNK 1

(2F0-24244-00-00)

Unavailable

3

. GRAPHIC, FUEL TNK 2

(2F0-24245-00-00)

Unavailable

4

. GRAPHIC, FUEL TNK 3

(2F0-24246-00-00)

Unavailable

5

. GRAPHIC, FUEL TNK 4

(2F0-24247-00-00)

Unavailable

6

EMBLEM 1

2F0-24161-10-00

Unavailable

7

EMBLEM 2

2F0-24162-10-00

Unavailable

8

SCREW (2F0)

90152-04006-00

$10.49

9

CAP ASSEMBLY

1E7-24602-00-00

Unavailable

10

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

11

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

12

PIN, SPECIAL SHAPE

90249-03123-00

Unavailable

13

CIRCLIP (604)

93430-02001-00

$8.49

14

DAMPER, LOCATING 1

3TB-24181-00-00

$14.49

15

DAMPER, LOCATING 1

256-24181-01-00

Unavailable

16

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

17

WASHER, SPRING

92995-06100-00

Unavailable

18

WASHER PLATE 248217570000

90201-06074-00

Unavailable

19

FUEL COCK ASSEMBLY 1

2F0-24500-01-00

Unavailable

20

FUEL COCK ASSEMBLY 2

2F0-24510-01-00

Unavailable

21

O-RING

1J7-24512-00-00

Unavailable

22

. LEVER, COCK

1J7-24524-00-00

Unavailable

23

. PLATE, LVR FITTING

1J7-24525-00-00

Unavailable

24

. WASHER, WAVE

1J7-24518-00-00

Unavailable

24

PLATE, LVR FITTING

(1J7-24525-10-00)

Unavailable

25

SEAL, FUEL COCK

1J7-24534-00-00

Unavailable

26

VALVE

16G-24523-00-00

Unavailable

27

SCREW, OVAL HEAD

(98601-03010-00)

Unavailable

28

. NET, FILTER 1

(2F0-24514-00-00)

Unavailable

29

GASKET, DRAIN COVER

1J7-24522-00-00

Unavailable

30

. CUP, FILTER

(2F0-24521-00-00)

Unavailable

30

. CUP, FILTER

(2F0-24521-10-00)

Unavailable

31

SCREW, PAN HEAD

98517-04012-00

Unavailable

31

SCREW, FLAT

98707-04008-00

Unavailable

32

. SCREW, OVAL HEAD 000

(98601-04012-00)

Unavailable

32

SCREW, FLAT

98707-04016-00

Unavailable

33

SCREW 366241430000

90149-06008-00

Unavailable

34

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

35

HOSE (L450)

90445-10144-00

Unavailable

36

SPRING, COMPRESSION

90504-06023-00

Unavailable

37

CLIP

90467-090A2-00

Unavailable

38

HOSE (L200)

90445-07176-00

Unavailable

38

HOSE (L200)

90445-07176-00

Unavailable

39

CLIP (1J7)

90467-07029-00

Unavailable

40

CLAMP(56R)

90464-60067-00

Unavailable
