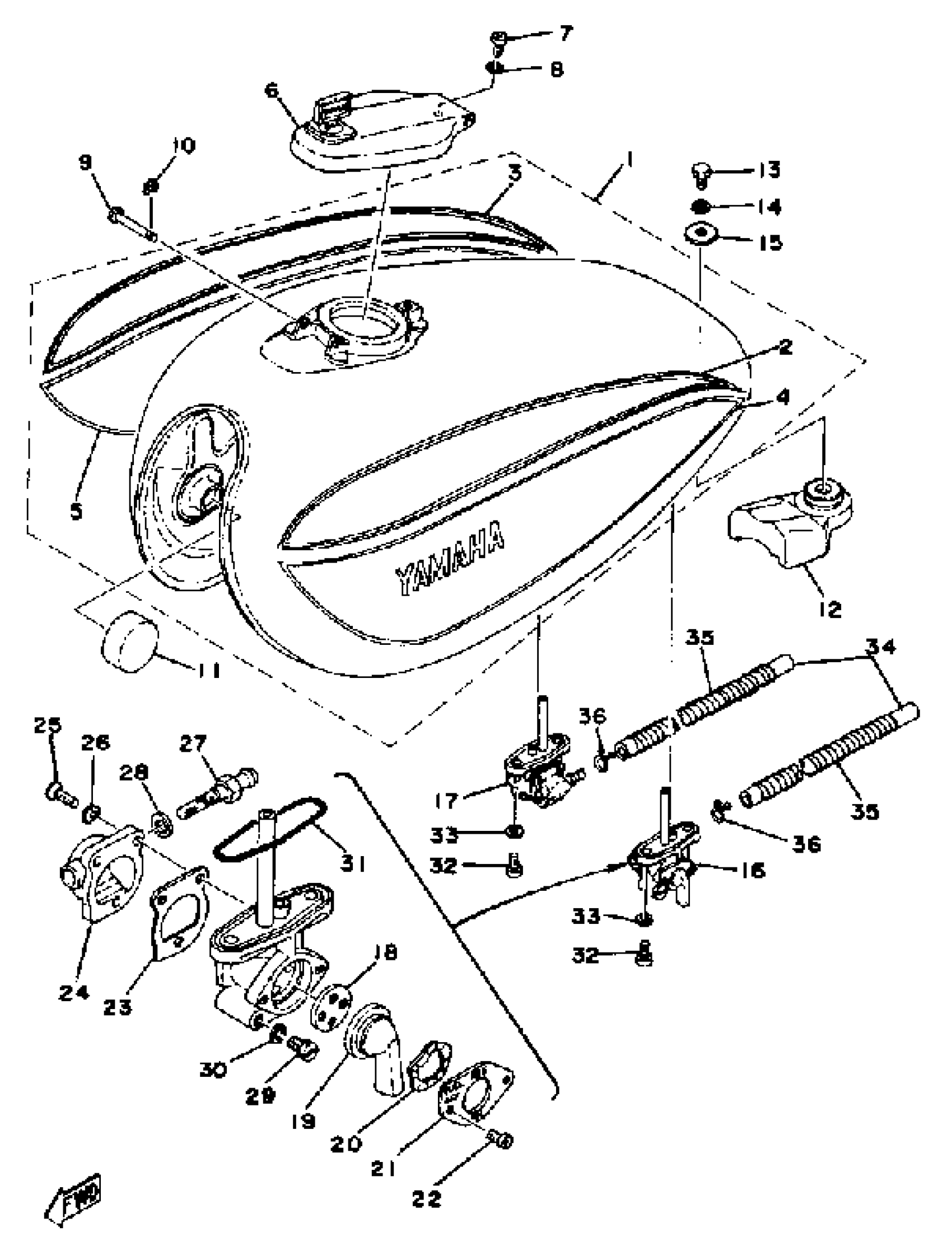

Yamaha XS650D (XS650) 1977 FUEL TANK XS650D Diagram

#

Description

Price

1

FUEL TANK

(584-24110-01-X2)

Unavailable

1

FUEL TANK

(584-24110-01-X6)

Unavailable

2

GRAPHIC, FUEL TNK 1

(1T3-24244-01-00)

Unavailable

2

GRAPHIC, FUEL TNK 1

(1T3-24244-10-00)

Unavailable

3

. UNAVAILABLE IN PRICE BOOK (1T3-24245-00)

1G3-24245-01-00

Unavailable

3

GRAPHIC, FUEL TNK 2

(1T3-24245-10-00)

Unavailable

4

GRAPHIC, FUEL TNK 3

(1T3-24246-01-00)

Unavailable

4

GRAPHIC, FUEL TNK 3

(1T3-24246-10-00)

Unavailable

5

GRAPHIC, FUEL TNK 4

(1T3-24247-01-00)

Unavailable

5

. GRAPHIC, FUEL TNK 4

1T3-24247-10-00

Unavailable

6

CAP ASSEMBLY

1E7-24602-00-00

Unavailable

7

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

7

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

9

PIN, SPECIAL SHAPE

90249-03123-00

Unavailable

10

CIRCLIP (604)

93430-02001-00

$8.49

11

DAMPER, LOCATING 1

3TB-24181-00-00

Unavailable

12

DAMPER, LOCATING 1

256-24181-01-00

Unavailable

13

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

14

WASHER, SPRING

92995-06100-00

Unavailable

15

WASHER PLATE 248217570000

90201-06074-00

Unavailable

16

FUEL COCK ASSEMBLY 1

447-24500-02-00

Unavailable

17

FUEL COCK ASSEMBLY 2

447-24510-02-00

Unavailable

18

VALVE

137-24523-00-00

Unavailable

19

. LEVER, COCK

447-24524-00-00

Unavailable

19

LEVER, COCK

(447-24524-10-00)

Unavailable

20

WASHER, WAVE

132-24518-00-00

Unavailable

21

. PLATE, LEVER FITTING

447-24525-00-00

Unavailable

21

PLATE, LVR FITTING

(447-24546-00-00)

Unavailable

22

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

23

GASKET FILTER

447-24522-00-00

Unavailable

24

COVER, FILTER

(447-24547-00-00)

Unavailable

24

COVER, FILTER

(447-24547-10-00)

Unavailable

25

SCREW, FLAT

98707-04010-00

Unavailable

26

WASHER, EX.TOOTH

(92901-04500-00)

Unavailable

27

. NIPPLE

256-24537-00-00

Unavailable

28

. GASKET

256-24528-00-00

Unavailable

29

SCREW,PANHEAD (EG9)

98580-05006-00

Unavailable

30

. GASKET, BODY 4

801-24437-00-00

Unavailable

31

GASKET, BODY

256-24512-00-00

Unavailable

32

SCREW 256241430000

90149-06011-00

Unavailable

33

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

34

HOSE (L420)

90445-092K1-00

Unavailable

35

SPRING, COMPRESSION

(90501-06028-00)

Unavailable

36

CLIP 101235600

90467-08003-00

Unavailable
