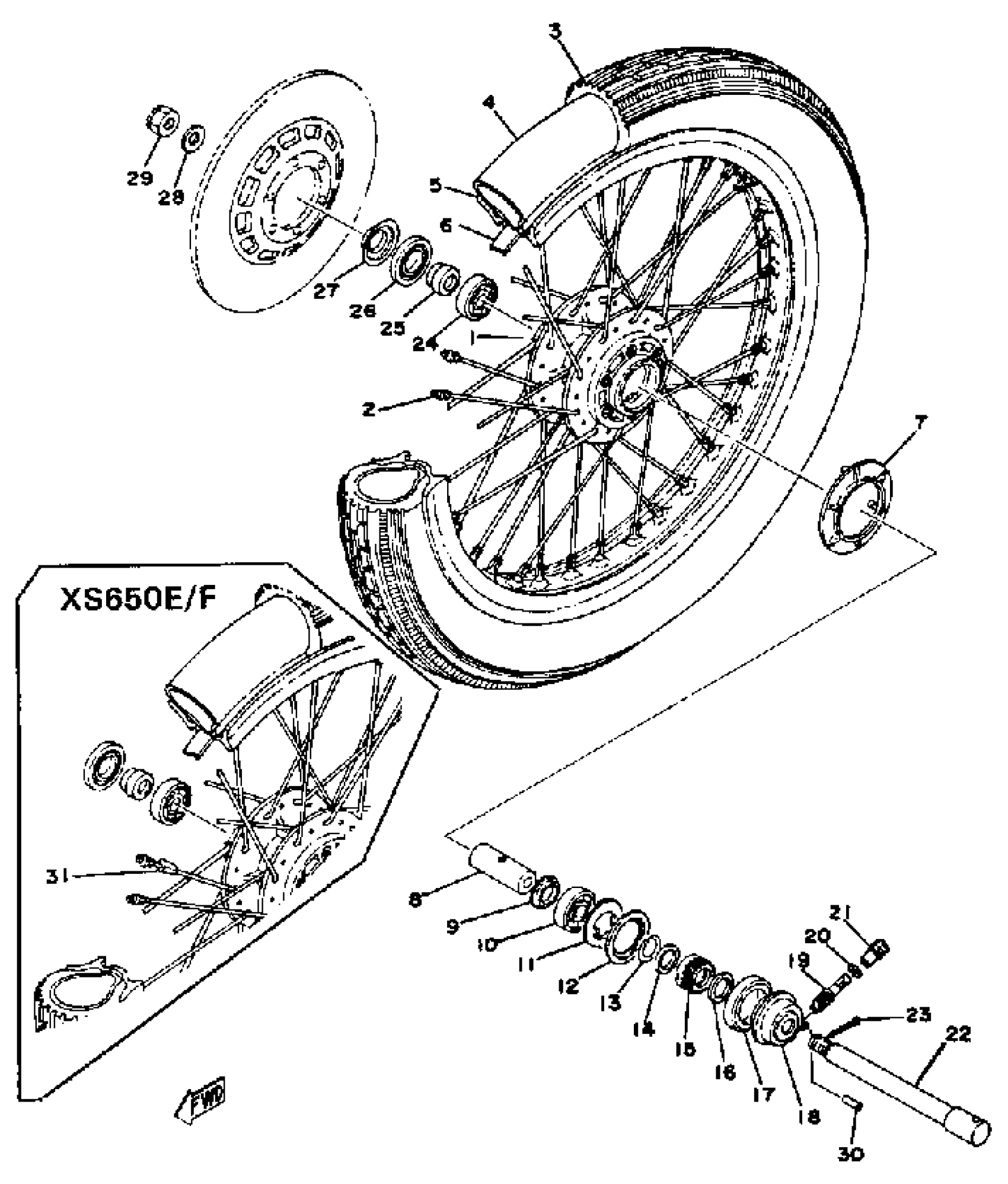

Yamaha XS650D (XS650) 1977 FRONT WHEEL XS650D E E006501~ F Diagram

#

Description
Price

1

HUB, FRONT

341-25111-01-00

Unavailable

2

SPOKE SET, FRONT

341-25104-00-00

Unavailable

3

350H19BS S21F 4PLY

(94135-19345-00)

Unavailable

4

TUBE(42X)

94210-19222-00

$49.99

4

TUBE

94235-19087-00

Unavailable

5

RIM 1.85X19

(94418-19145-00)

Unavailable

6

BAND, RIM

94327-19111-00

$14.99

7

COVER, HOUSING

1L9-25847-00-00

Unavailable

8

SPACER 341251170100

90560-17126-00

$16.99

9

FLANGE, SPACER

146-25315-00-00

$7.99

10

BEARING(4HM)

93306-30317-00

$39.99

11

CLUTCH, METER (371,447)

341-25149-00-00

$7.99

12

RETAINER, CLUTCH (371,447)

341-25846-00-00

$8.99

13

RING, STOP

341-25137-00-00

Unavailable

14

WASHER PLATE 341251470000

90201-25286-00

Unavailable

15

GEAR, DRIVE

341-25135-01-00

Unavailable

16

WASHER PLATE 152172260000

90201-25490-00

Unavailable

17

OIL SEAL (28X47X7-102)

93102-28022-00

Unavailable

17

OIL SEAL (45X56X6)

93105-45017-00

Unavailable

18

GEAR UNIT ASSY

4TR-25190-20-00

Unavailable

19

GEAR, METER

306-25138-00-00

Unavailable

20

SHIM, ROD

102-18416-00-00

Unavailable

21

BUSH

306-25136-00-00

Unavailable

22

AXLE, WHEEL

99999-04072-00

Unavailable

23

PIN, COTTER

91490-30030-00

Unavailable

24

BEARING(4HM)

93306-30317-00

$39.99

25

COLLAR

90387-17433-00

Unavailable

26

OIL SEAL (28X47X7-102)

93102-28022-00

Unavailable

26

OIL SEAL (45X56X6)

93105-45017-00

Unavailable

27

COVER, HUB DUST

341-25118-00-00

Unavailable

28

WASHER, PLAIN

92990-14200-00

Unavailable

29

NUT, CASTLE(2UJ)

90171-14056-00

Unavailable

30

PIN, SPRING (V60)

91609-20014-00

Unavailable

31

BALANCER, WHEEL

3HT-25398-00-00

Unavailable
