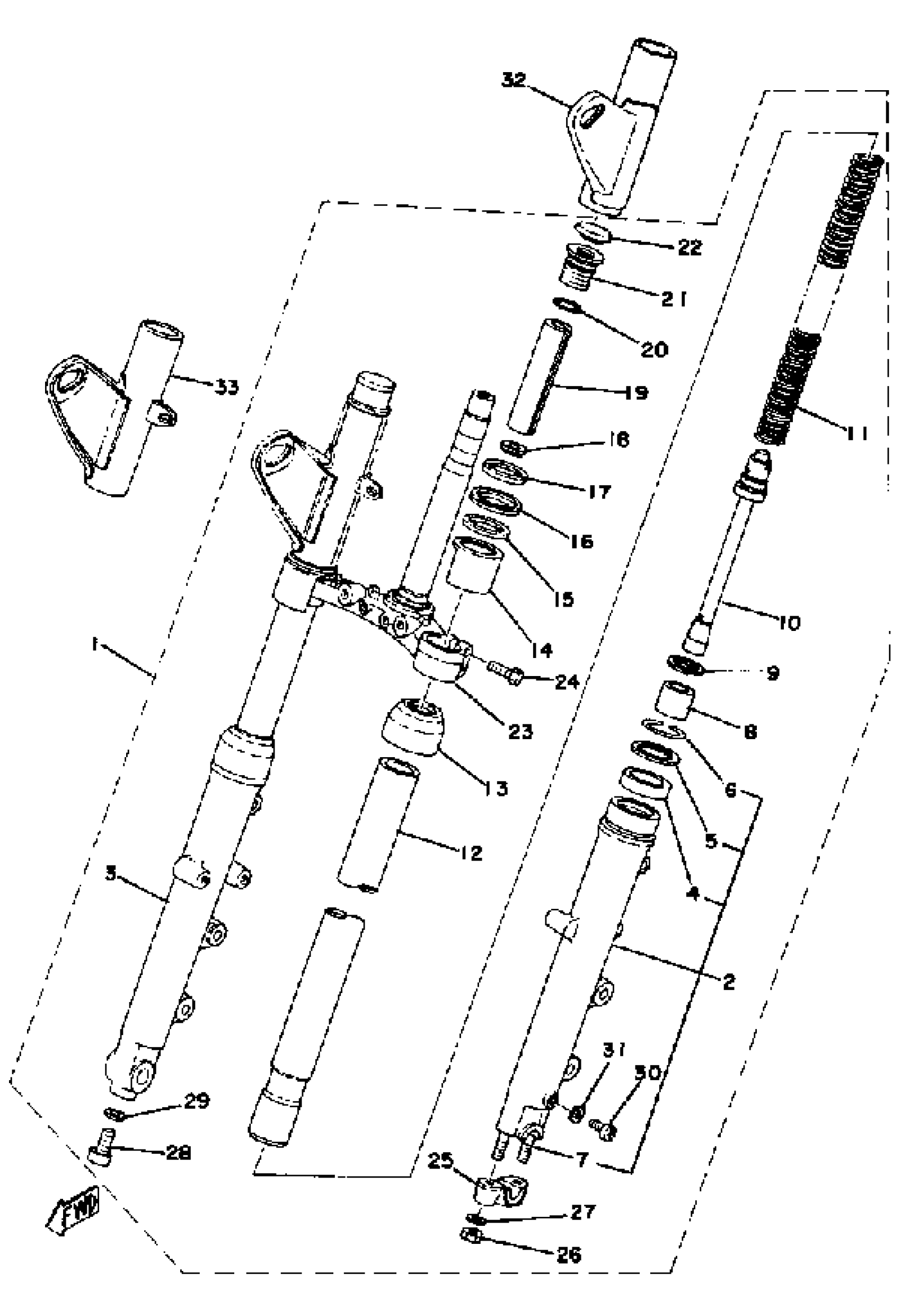

Yamaha XS650D (XS650) 1977 FRONT FORK XS650D Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY

(2F0-23101-00-00)

Unavailable

2

TUBE, OUTER 1

(1T3-23126-50-00)

Unavailable

3

TUBE, OUTER 2

(1T3-23136-50-00)

Unavailable

4

OIL SEAL

1T3-23145-00-00

$16.49

5

WASHER, OIL SEAL

341-23146-50-00

$10.99

6

CLIP, OIL SEAL

341-23156-50-00

$32.99

7

BOLT, STUD (278)

90116-08261-00

$4.77

8

PISTON, FRONT FORK

(434-23171-00-00)

Unavailable

9

. CIRCLIP, INNER

93450-30033-00

Unavailable

10

CYLINDER, FRTFRK

(1T3-23170-50-00)

Unavailable

11

. UNAVAILABLE IN PRICE BOOK

1G3-23141-50-00

Unavailable

12

. UNAVAILABLE IN PRICE BOOK

1G3-23124-50-00

Unavailable

13

SEAL, DUST

1T3-23144-50-00

Unavailable

14

COVER, OUTER 1

(1T3-23122-50-00)

Unavailable

15

WASHER

2H7-23163-00-00

Unavailable

16

GUIDE, COVER LOWER

(1T3-23116-50-00)

Unavailable

17

WASHER, OIL SEAL

(1T3-23146-50-00)

Unavailable

18

. SEAT, SPRING UPPER

256-23142-60-00

Unavailable

19

SPACER

(498-23118-00-00)

Unavailable

20

RING, CAP BOLT

2F0-23114-00-00

Unavailable

20

RING, CAP BOLT

2F0-23114-00-00

Unavailable

21

. BOLT, CAP

1T3-23111-50-00

Unavailable

22

CAP

1T3-23168-50-00

Unavailable

23

. UNDER BRACKET

1U3-23340-30-33

Unavailable

24

BOLT, AXLE HOLDER

18G-23128-00-00

Unavailable

25

HOLDER,AXLE

341-23167-50-00

Unavailable

26

NUT, SELF-LOCKING (3Y2)

90185-08089-00

Unavailable

27

.. WASHER, PLATE

92990-08600-00

Unavailable

28

. BOLT, HEX SCKT HEAD

1T3-23181-50-00

Unavailable

29

GASKET

509-23158-L0-00

Unavailable

30

SCREW, PAN HEAD (713)

98580-04008-00

Unavailable

31

GASKET, DRAIN PLUG

122-23129-00-00

Unavailable

32

COVER, UPPER 1

(447-23121-51-93)

Unavailable

33

COVER, UPPER 2

(447-23131-51-93)

Unavailable
