Description

Price

1

FRONT FENDER COMP

2J2-21510-00-93

Unavailable

2

BOLT, HEXAGON

97013-08020-00

$1.16

3

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

4

HOLDER, WIRE

1A0-21518-00-00

Unavailable

5

FENDER, REAR

447-21610-02-93

Unavailable

6

DAMPER, LOCATING(1)

122-24181-00-00

$7.99

7

DAMPER, REAR

168-21639-00-00

$10.99

8

BOLT

90109-10349-00

Unavailable

9

WASHER, PLATE

90201-15239-00

Unavailable

10

STAY, REAR

(2F0-21645-00-00)

Unavailable

11

GUARD, MUD

(447-21629-01-00)

Unavailable

12

SEAL

447-21268-01-00

Unavailable

13

GROMMET 839774310000

90480-14023-00

$7.49

14

COLLAR

90387-07020-00

$8.49

15

WASHER, PLATE

90201-06380-00

$0.60

16

WASHER, SPRING

92995-06100-00

Unavailable

17

SCREW, PAN HEAD (76T)

98517-06025-00

Unavailable

18

GROMMET (438)

90480-15061-00

Unavailable

19

CLAMP

(90464-04014-00)

Unavailable

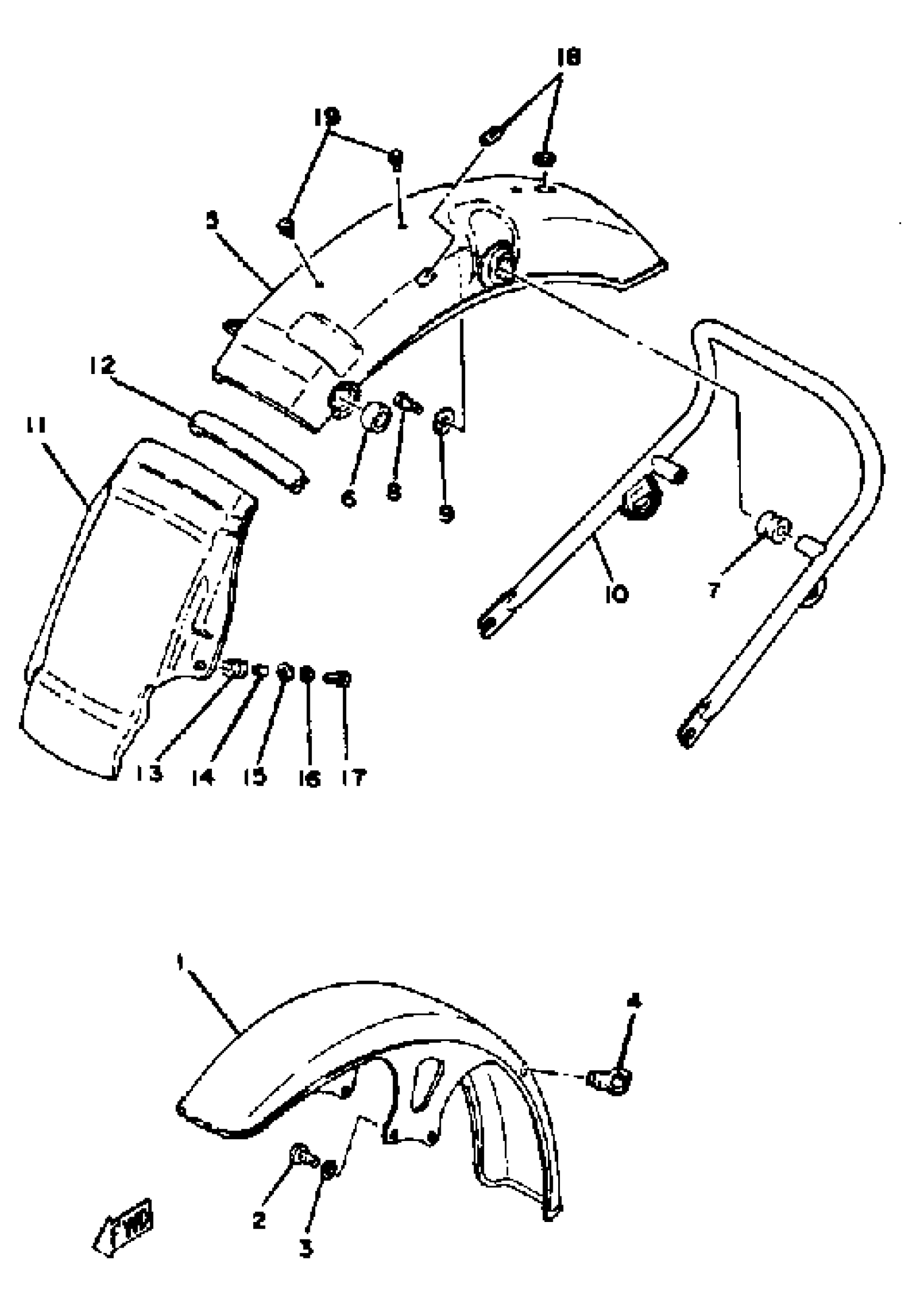

Yamaha XS650D (XS650) 1977 FRONT FENDER REAR FENDER XS650F Diagram

FRONT FENDER COMP

BOLT, HEXAGON

YBS67-8 WASHER, SPRING

HOLDER, WIRE

FENDER, REAR

DAMPER, LOCATING(1)

DAMPER, REAR

BOLT

WASHER, PLATE

STAY, REAR

GUARD, MUD

SEAL

GROMMET 839774310000

COLLAR

WASHER, PLATE

WASHER, SPRING

SCREW, PAN HEAD (76T)

GROMMET (438)

CLAMP
