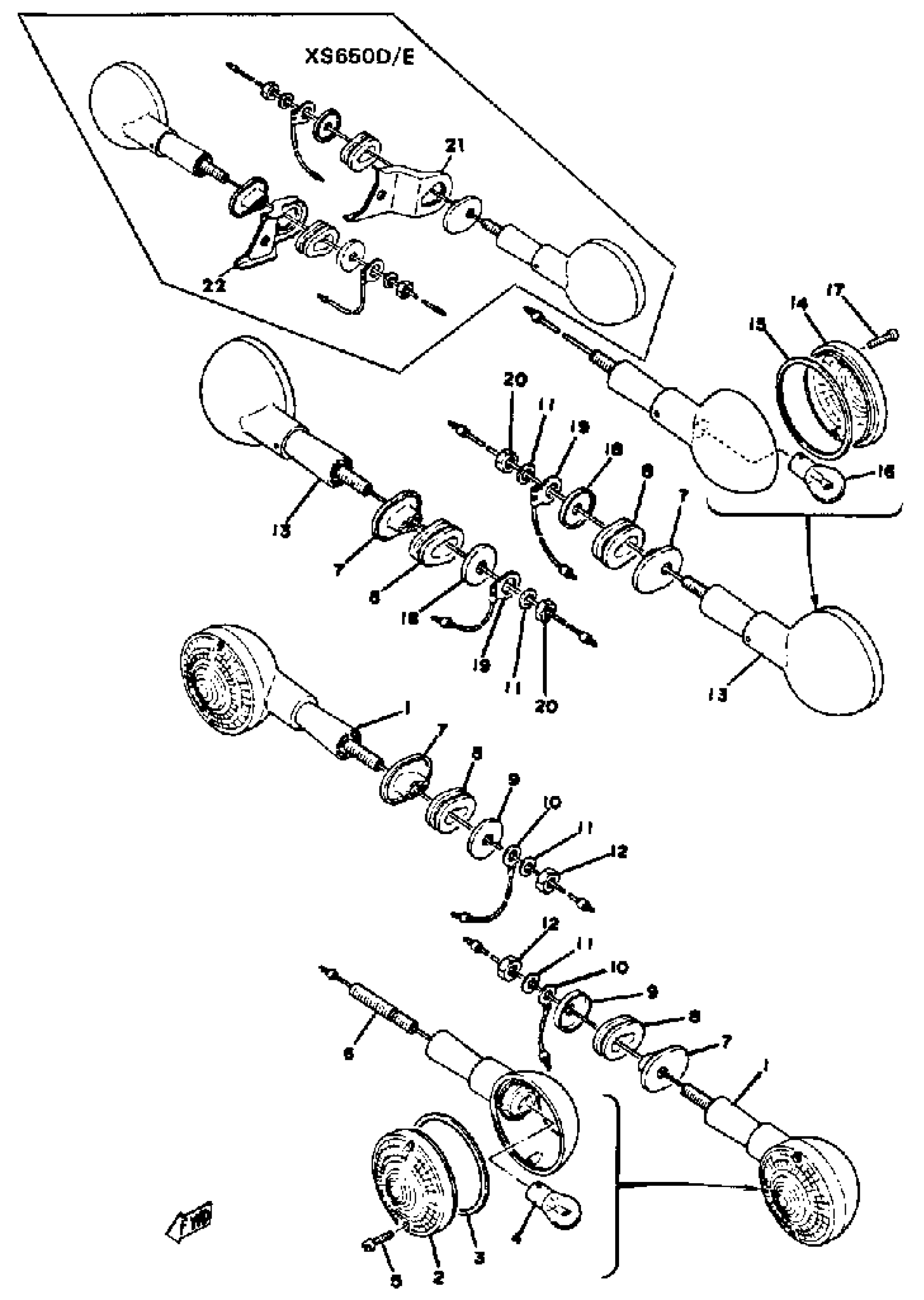

Yamaha XS650D (XS650) 1977 FLASHER LIGHT XS650D E E006501~ F Diagram

#

Description
Price

1

R FLSHR LITE ASSEMBLY

1E5-83330-20-93

Unavailable

2

LENS, FLASHER

341-83312-70-00

Unavailable

3

GASKET, FLASHER LENS

3Y6-83313-00-00

$7.99

4

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

5

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

6

. BOLT, STUD

341-83367-09-00

Unavailable

7

COLLAR, FLASHER 1

366-83316-00-00

Unavailable

8

DAMPER, FLASHER 1

256-83321-00-00

Unavailable

9

WASHER

90209-08008-00

$7.49

10

WIRE, EARTH (GROUND)

256-84313-01-00

Unavailable

11

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

12

. NUT

95380-08700-00

Unavailable

13

R FLSHR LITE ASSEMBLY

1E5-83330-20-93

Unavailable

13

R FLSHR LITE ASSEMBLY

366-83340-71-93

Unavailable

14

LENS, FLASHER

341-83312-70-00

Unavailable

14

. LENS, FLASHER

341-83332-70-00

Unavailable

15

GASKET, FLASHER LENS

3Y6-83313-00-00

$7.99

16

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

17

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

18

WASHER, SPEC''L SHAP

90209-08028-00

Unavailable

19

CORD

447-83336-01-00

Unavailable

20

NUT(6L2)

95333-08600-00

Unavailable

21

STAY, FLASHER

447-83368-00-00

Unavailable

22

STAY, FLASHER

447-83369-00-00

Unavailable
